WILLSEMIDatasheet (PDF)

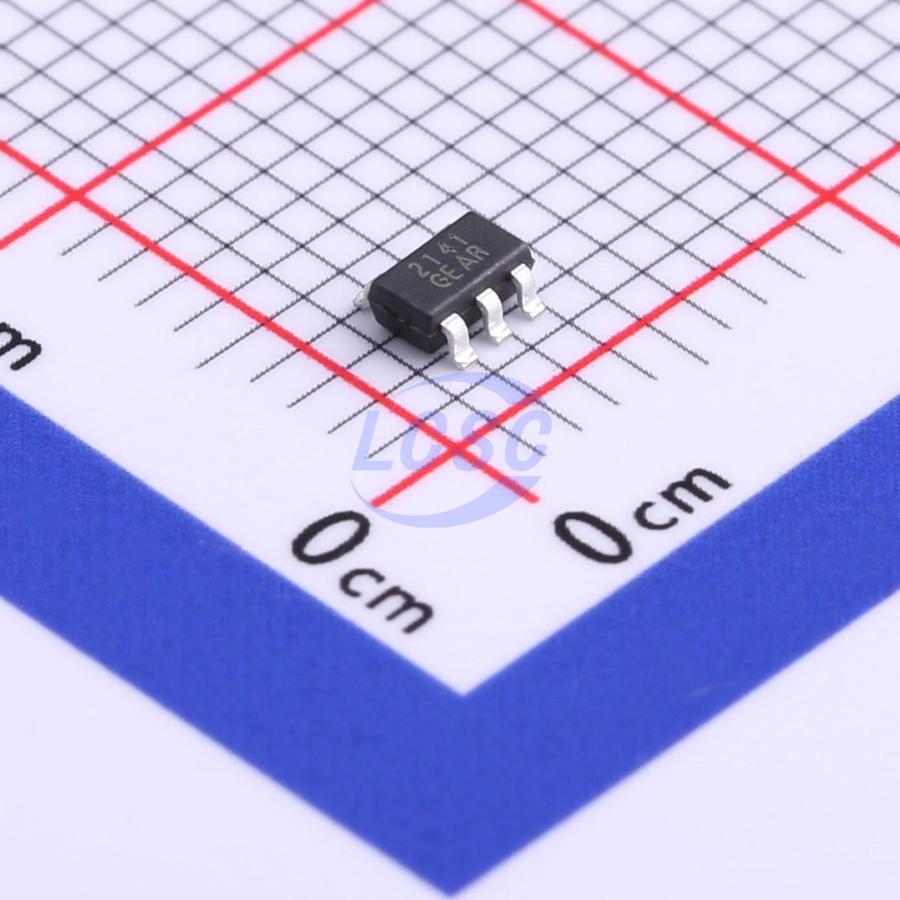

WS72141E-5/TR
15mA 1 100uV 7V/ms 75dB 10pA 13kHz 300nA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5L Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5LROHS CompliantActive
Nano-Power Rail-to-Rail Input/Output Operational Amplifiers
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WS72141E-5/TR
- Store part #
- C717870
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,125 in stock
#C717870
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.47 | ₹157.35 |
| 50+ | ₹24.95 | ₹1,247.50 |
| 150+ | ₹22.16 | ₹3,324.00 |
| 500+ | ₹18.67 | ₹9,335.00 |
| 3,000+ | ₹17.12 | ₹51,360.00 |
| 6,000+ | ₹16.18 | ₹97,080.00 |
5 × ₹31.47
₹157.35
excl. GST
₹185.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WS72141E-5/TR
₹157.35 for 5 + GST
Specifications
- Output Current
- 15mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 100uV
- Slew Rate
- 7V/ms
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 1.6uV/℃
- Gain Bandwidth Product
- 13kHz
- Quiescent Current
- 300nA
- Features
- Built-in compensation
- Input Voltage Noise Density
- 80nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.6V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
The WS72141 is a single low-voltage operational amplifier with rail-to-rail input/output swing. Ultra low power makes this amplifier ideal for battery-powered and portable applications. The WS72141 has a gain-bandwidth product of 13kHz (TYP) and is unity gain stable. These specifications make this operational amplifier appropriate for low frequency applications, such as battery current monitoring and sensor conditioning.
Applications
- Handsets and Mobile Accessories
- Current Sensing
- Wireless Remote Sensors, Active RFID Readers
- Environment/Gas/Oxygen Sensors
- Threshold Detectors/Discriminators
- Low Power Filters
- Battery or Solar Powered Devices
- Sensor Network Powered by Energy Scavenging
Key features
- Wide Supply Voltage: 1.6~5.5V
- Quiescent Current per: 300nA Typical
- Amplifier GBWP: 13kHz
- Rail-to-Rail Input/Output Swing
- Unity Gain Stable
- -40°C to 125°C Operation Temperature Range
- Available in Green SOT-23-5L Packages
