WILLSEMIDatasheet (PDF)

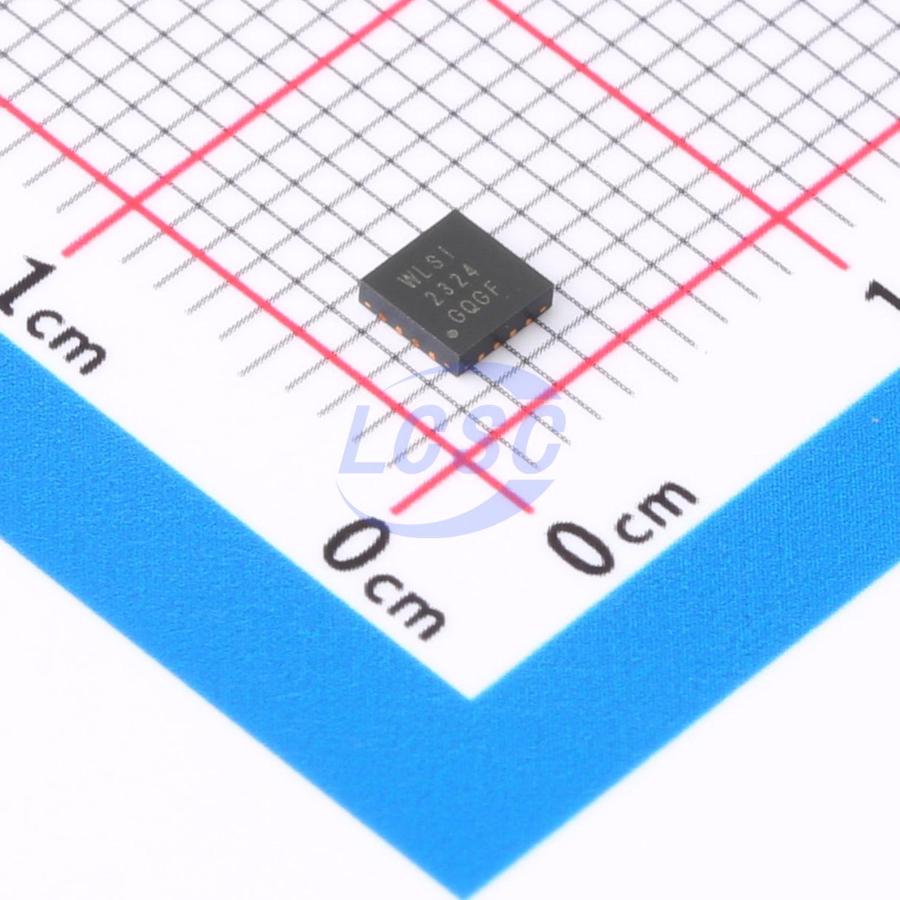

WS72324Q-16/TR
43mA 4 3mV 1.1V/us 1pA 101dB 42uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output QFN3x3-16 Instrumentation, Op Amps, Buffer Amps RoHS
QFN3x3-16ROHS CompliantActive
Low-power rail-to-rail input operational amplifier
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WS72324Q-16/TR
- Store part #
- C16197394
- Package / case
- QFN3x3-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,690 in stock
#C16197394
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.60 | ₹158.00 |
| 50+ | ₹24.68 | ₹1,234.00 |
| 150+ | ₹21.71 | ₹3,256.50 |
| 500+ | ₹18.02 | ₹9,010.00 |
| 3,000+ | ₹16.37 | ₹49,110.00 |
| 6,000+ | ₹15.38 | ₹92,280.00 |
5 × ₹31.60
₹158.00
excl. GST
₹186.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WS72324Q-16/TR
₹158.00 for 5 + GST
Specifications
- Output Current
- 43mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 1.1V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 101dB
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Quiescent Current
- 42uA
- Gain Bandwidth Product
- 1.5MHz
- Input Voltage Noise Density
- 23nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.072 g
Overview
The WS72324 series is a quad low-voltage operational amplifier with rail-to-rail input/output swing. Ultra low quiescent current makes this amplifier ideal for portable, battery operated equipment. The common mode input range includes ground making the device useful for low−side current−shunt measurements. The WS72324 is available with MSL 3 Level in SOP-14L, TSSOP-14L and QFN3x3-16L package. Standard products are Pb-Free and halogen-Free.
Applications
- Active Filters
- Smoke/Gas Sensors
- Battery Powered Electronic Equipments
- Personal Medical Care
Key features
- Single Supply Voltage: 1.8~5.5V
- Quiescent Current: 42μA Typical
- GBWP: 1.5MHz
- Slew Rate: 1.1V/μs
- Offset Voltage: 3mV Maximum
- Offset Voltage Temp. Drift: 1μV/°C
- THD+N: -102dB@1kHz, -90dB@10kHz
- CMRR/PSRR: 101dB/105dB
- Output Short-Circuit Curr.: 43mA
- -40°C to 125°C Operation Range
- Drives 2kΩ Resistive Loads
- No Output Crossover Distortion
- No Phase Reversal from Overdriven Input
- Rail-to-Rail Input/Output Swing
