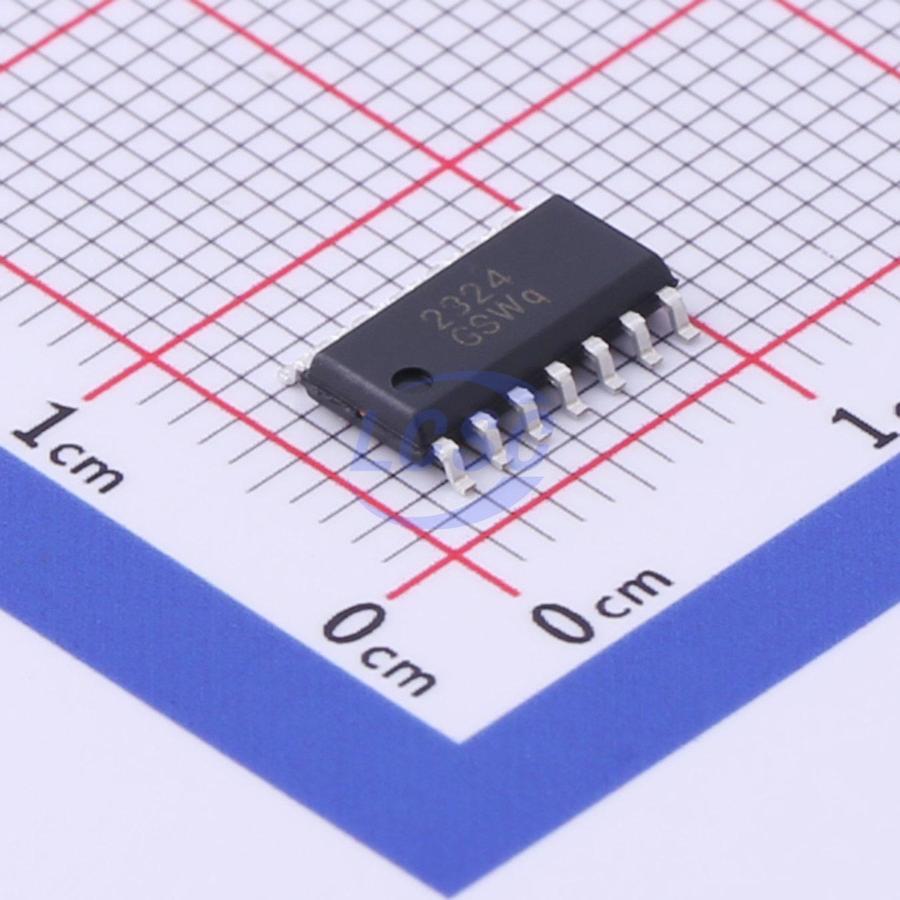

WS72324S-14/TR

43mA 4 3mV 1.1V/us 101dB 10pA 42uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps

SOP-14RoHSActive

Low-Power Rail-to-Rail Input Operational Amplifiers

Manufacturer: WILLSEMI
Manufacturer part #: WS72324S-14/TR
Store part #: C717851
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,970 in stock

#C717851

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹37.84	₹189.20
50+	₹29.71	₹1,485.50
150+	₹26.24	₹3,936.00
500+	₹21.88	₹10,940.00
2,500+	₹19.95	₹49,875.00
4,000+	₹18.79	₹75,160.00

Quantity (min 5, multiples of 5)

5 × ₹37.84

₹189.20

excl. GST

₹223.26 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

WS72324S-14/TR

₹189.20 for 5 + GST

Specifications

Output Current: 43mA
Number of Channels: 4
Vos - Input Offset Voltage: 3mV
Slew Rate: 1.1V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 101dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 200nV/℃
Quiescent Current: 42uA
Gain Bandwidth Product: 1.5MHz
Input Voltage Noise Density: 30nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.206 g

Overview

The WS72324 series is a quad low-voltage operational amplifier with rail-to-rail input/output swing. Ultra low quiescent current makes this amplifier ideal for portable, battery operated equipment. The common mode input range includes ground making the device useful for low−side current−shunt measurements.

Applications

Active Filters
Smoke/Gas Sensors
Battery Powered Electronic Equipments
Personal Medical Care

Key features

Single Supply Voltage: 1.8~5.5V
Quiescent Current: 42μA Typical
GBWP: 1.5MHz
Slew Rate: 1.1V/μs
Offset Voltage: 3mV Maximum
Offset Voltage Temp. Drift: 0.2μV/°C
THD+N: -102dB@1kHz, -90dB@10kHz
CMRR/PSRR: 101dB/105dB
Output Short-Circuit Curr.: 43mA
-40°C to 125°C Operation Range
Drives 2kΩ Resistive Loads
No Output Crossover Distortion
No Phase Reversal from Overdriven Input
Rail-to-Rail Input/Output Swing
