WILLSEMIDatasheet (PDF)

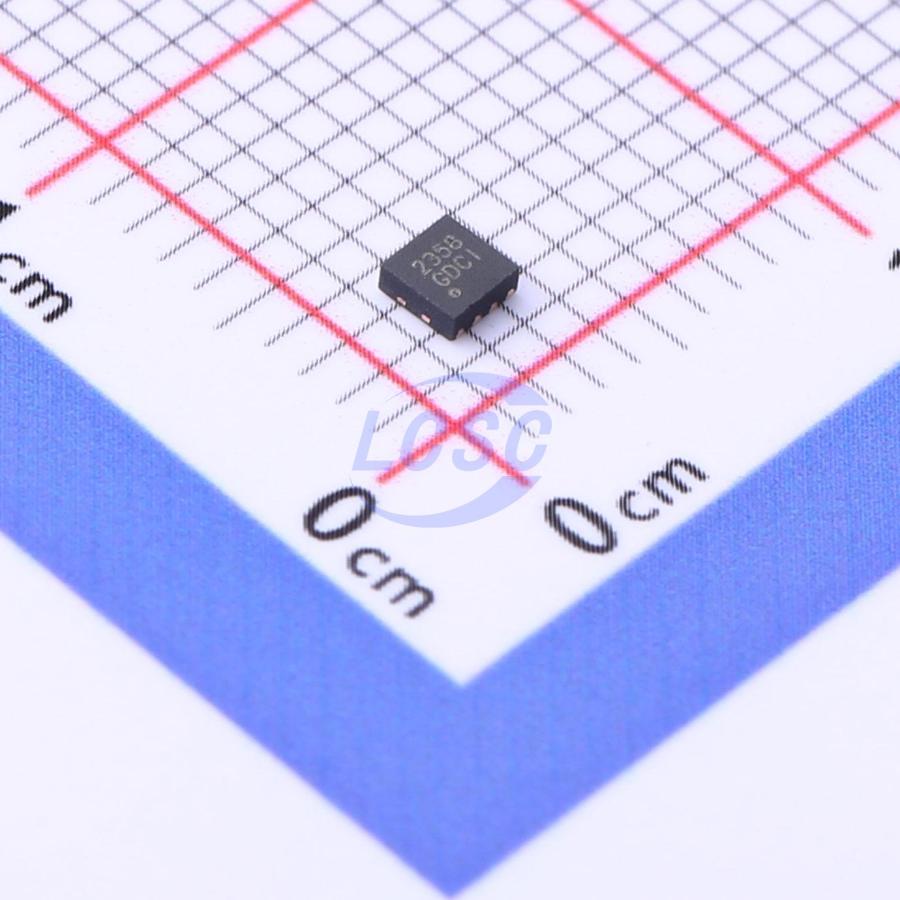

WS72358D-8/TR
46mA 2 3mV 1.1V/us 1pA 110dB 42uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output DFN-8-EP(2x2) Instrumentation, Op Amps, Buffer Amps
DFN-8-EP(2x2)RoHSActive
Low-Power Rail-to-Rail Input Output Operational Amplifiers
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WS72358D-8/TR
- Store part #
- C2943885
- Package / case
- DFN-8-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,790 in stock
#C2943885
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.04 | ₹190.20 |
| 50+ | ₹30.36 | ₹1,518.00 |
| 150+ | ₹27.07 | ₹4,060.50 |
| 500+ | ₹22.97 | ₹11,485.00 |
| 3,000+ | ₹19.01 | ₹57,030.00 |
| 6,000+ | ₹17.91 | ₹1,07,460.00 |
5 × ₹38.04
₹190.20
excl. GST
₹224.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WS72358D-8/TR
₹190.20 for 5 + GST
Specifications
- Output Current
- 46mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 1.1V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Quiescent Current
- 42uA
- Gain Bandwidth Product
- 1.5MHz
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The WS72358 series is a dual low-voltage operational amplifier with rail-to-rail input/output swing. Ultra low quiescent current makes this amplifier ideal for portable, battery operated equipment. The common mode input range includes ground making the device useful for low−side current−shunt measurements. The WS72358 is available with MSL 3 Level in SOP-8L package, MSOP-8L package and DFN2x2-8L package. Standard products are Pb-Free and halogen-Free.
Applications
- Active Filters
- Smoke/Gas Sensors
- Battery Powered Electronic Equipments
- Personal Medical Care
Key features
- Single Supply Voltage: 1.7~5.5V
- Quiescent Current per: 42μA Typical Amplifier
- GBWP: 1.5MHz
- Slew Rate: 1.1V/μs
- Offset Voltage: 3mV Maximum
- Offset Voltage Temp. Drift: 1μV/°C
- THD+N: -102dB@1kHz, -86dB@10kHz
- CMRR/PSRR: 110dB/106dB
- Output Short-Circuit Curr.: 46mA
- -40°C to 125°C Operation Range
- Drives 2kΩ Resistive Loads
- No Output Crossover Distortion
- No Phase Reversal from Overdriven Input
- Rail-to-Rail Input/Output Swing
