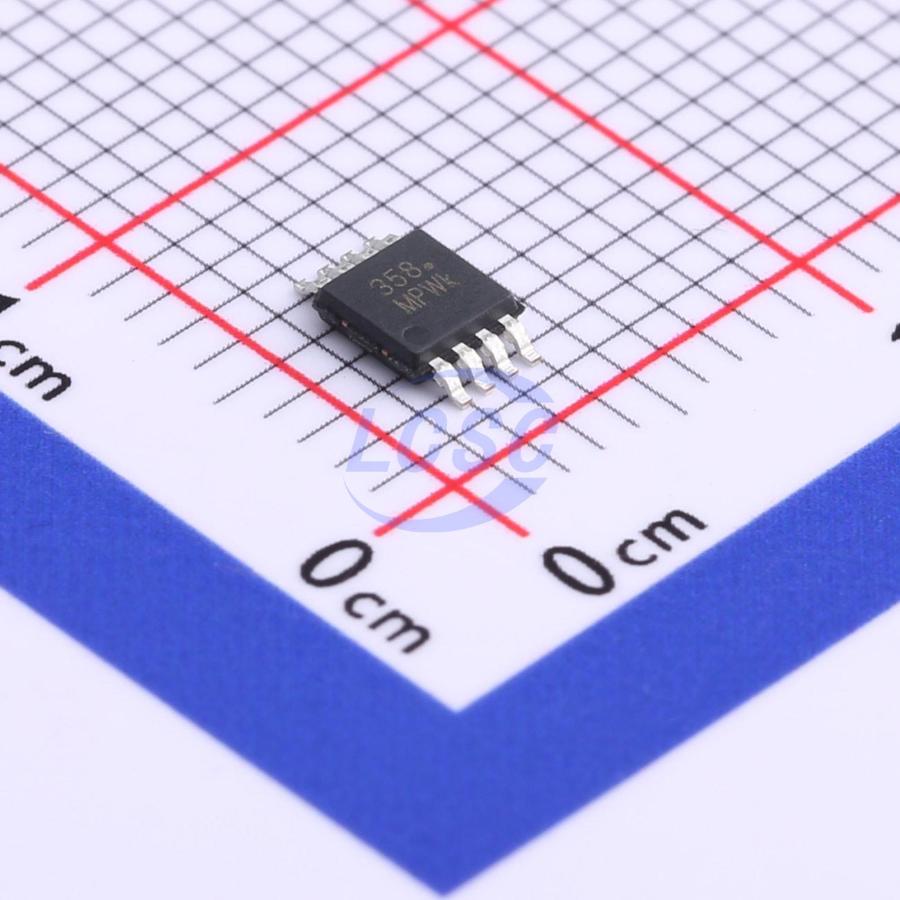

WS72358M-8/TR

46mA 2 3mV 1.1V/us 10pA 110dB 42uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

Low-power rail-to-rail input operational amplifier

Manufacturer: WILLSEMI
Manufacturer part #: WS72358M-8/TR
Store part #: C717850
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,430 in stock

#C717850

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹20.06	₹100.30
50+	₹16.11	₹805.50
150+	₹14.14	₹2,121.00
500+	₹12.66	₹6,330.00
2,500+	₹11.48	₹28,700.00
4,000+	₹10.89	₹43,560.00

Quantity (min 5, multiples of 5)

5 × ₹20.06

₹100.30

excl. GST

₹118.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

WS72358M-8/TR

₹100.30 for 5 + GST

Specifications

Output Current: 46mA
Number of Channels: 2
Vos - Input Offset Voltage: 3mV
Slew Rate: 1.1V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 110dB
Input Offset Voltage Drift(Vos TC): 1.1uV/℃
Quiescent Current: 42uA
Gain Bandwidth Product: 1.5MHz
Input Voltage Noise Density: 30nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.087 g

Overview

The WS72358 series is a dual low-voltage operational amplifier with rail-to-rail input/output swing. Ultra low quiescent current makes this amplifier ideal for portable, battery operated equipment. The common mode input range includes ground making the device useful for low−side current−shunt measurements. The WS72358 is available with MSL 3 Level in SOP-8L package and MSOP-8L package. Standard products are Pb-Free and halogen-Free.

Applications

Active Filters
Smoke/Gas Sensors
Battery Powered Electronic Equipments
Personal Medical Care

Key features

Single Supply Voltage: 1.8~5.5V
Quiescent Current per: 42μA
Typical Amplifier GBWP: 1.5MHz
Slew Rate: 1.1V/μs
Offset Voltage: 3mV Maximum
Offset Voltage Temp. Drift: 1.1μV/°C
THD+N: -102dB@1kHz, -86dB@10kHz
CMRR/PSRR: 110dB/106dB
Output Short-Circuit Curr.: 46mA
-40°C to 125°C Operation Range
Drives 2kΩ Resistive Loads
No Output Crossover Distortion
No Phase Reversal from Overdriven Input
Rail-to-Rail Input/Output Swing
