WILLSEMIDatasheet (PDF)

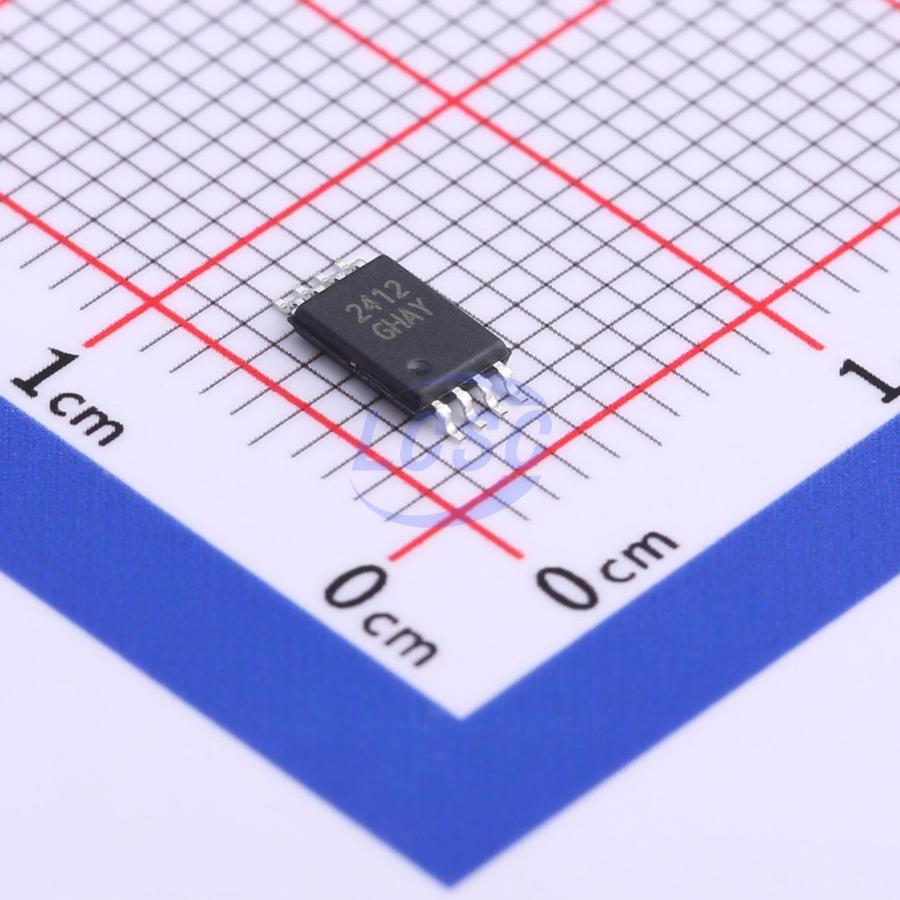

WS72412H-8/TR
210mA 2 2.5mV 9V/us 105dB 10pA 18MHz 1.25mA Rail-to-Rail Input, Rail-to-Rail Output TSSOP-8 Instrumentation, Op Amps, Buffer Amps
TSSOP-8RoHSActive
Rail-to-Rail Input Output CMOS Operational Amplifiers
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WS72412H-8/TR
- Store part #
- C717877
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,910 in stock
#C717877
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.50 | ₹207.50 |
| 50+ | ₹33.17 | ₹1,658.50 |
| 150+ | ₹29.60 | ₹4,440.00 |
| 500+ | ₹25.14 | ₹12,570.00 |
| 2,500+ | ₹23.15 | ₹57,875.00 |
| 4,000+ | ₹21.98 | ₹87,920.00 |
5 × ₹41.50
₹207.50
excl. GST
₹244.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
WS72412H-8/TR
₹207.50 for 5 + GST
Specifications
- Output Current
- 210mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2.5mV
- Slew Rate
- 9V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 105dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Gain Bandwidth Product
- 18MHz
- Quiescent Current
- 1.25mA
- Features
- EMI filtering/RF suppression;ESD protection
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Dual Supply
- -1.1V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.2V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.103 g
Overview
The WS72412 is a low power rail-to-rail input output operational amplifier featuring low current noise, high slew rate and wide signal bandwidth. The combination of low noise, low input bias currents, high speed and inside EMI filter make this amplifier useful in a wide variety of applications. Filters, integrators, photo-diode amplifiers, and high impedance sensors all benefit from this combination of performance features. Audio and other ac applications benefit from the wide bandwidth and low distortion of this device. Applications for this amplifier include power amplifier (PA) controls, laser diode control loops, portable and loop-powered instrumentation, audio amplification for portable devices, and ASIC input and output amplifiers. The WS72412 is dual channel version available in SOP-8L package, MSOP-8L and TSSOP-8L package.
Applications
- Sensor Signal Conditioning
- Consumer Audio
- Multi-Pole Active Filters
- Communications
- Security Scanners
Key features
- Gain-bandwidth Product: 18 MHz
- Low Noise: 8 nV/√Hz (f = 1 kHz)
- Slew Rate: 9 V/μs
- Offset Voltage: 2.5 mV (max)
- Supply Range: 2.2 V to 5.5 V
- Supply Current: 1.25 mA/ch
- High Output Current: 170 mA
- Low THD+N: -102 dB
- Rail-to-Rail Input/Output Swing
- –40°C to 125°C Operation Range
- Robust 8 kV HBM and 400 V MM and 2 kV CDM
