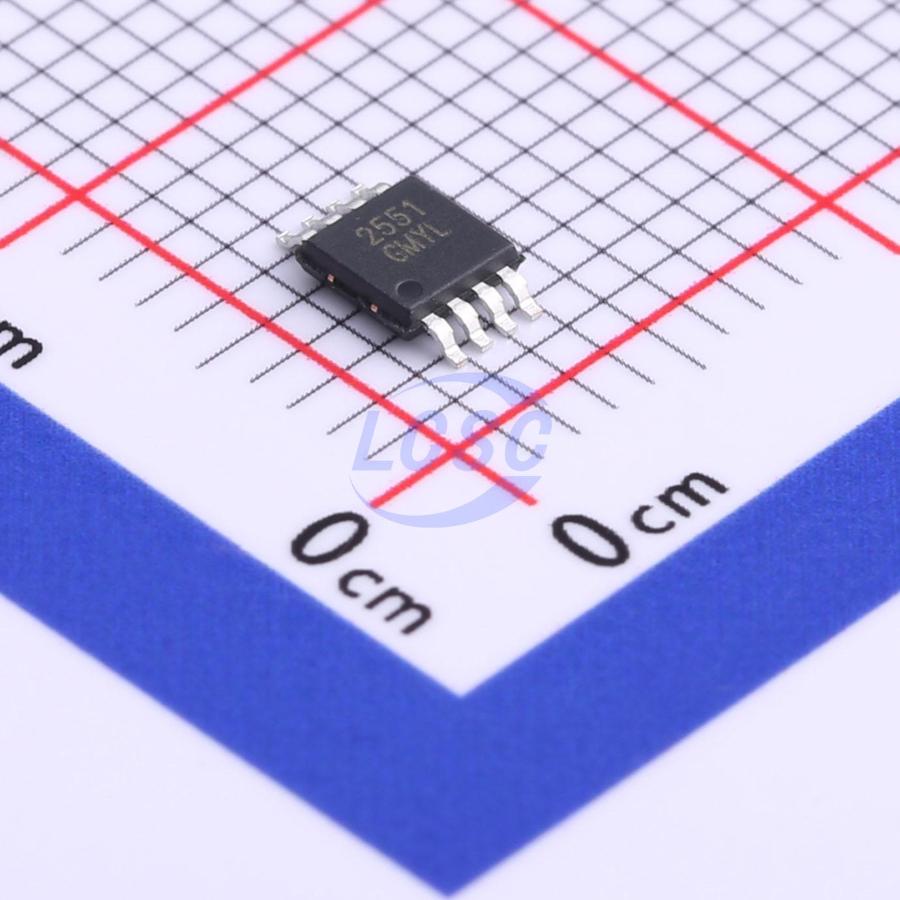

WS72551M-8/TR

70mA 1 14uV 1.2V/us 140dB 10pA 265uA 1.8MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

Zero-Drift, Single-Supply, Rail-to-Rail Input/Output Operational Amplifiers

Manufacturer: WILLSEMI
Manufacturer part #: WS72551M-8/TR
Store part #: C717862
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,000 in stock

#C717862

Stock & price checked 26 h ago

Quantity	Unit price	Pack price
5+	₹48.13	₹240.65
50+	₹38.04	₹1,902.00
150+	₹33.71	₹5,056.50
500+	₹28.33	₹14,165.00
2,500+	₹25.92	₹64,800.00
4,000+	₹24.49	₹97,960.00

Quantity (min 5, multiples of 5)

5 × ₹48.13

₹240.65

excl. GST

₹283.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

WS72551M-8/TR

₹240.65 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 70mA
Number of Channels: 1
Vos - Input Offset Voltage: 14uV
Slew Rate: 1.2V/us
Input Offset Current(Ios): 6pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 140dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 8nV/℃
Quiescent Current: 265uA
Gain Bandwidth Product: 1.8MHz
Features: Zero drift / auto-zero
Input Voltage Noise Density: 80nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.086 g

Overview

This family of amplifiers has ultra low offset, drift, and bias current. The WS72551 and WS72552 are single and dual amplifiers featuring rail-to-rail input and output swings respectively. All are guaranteed to operate from 2.5V to 5V with a single supply. The WS72551/WS72552 provides the benefits previously found only in expensive auto-zeroing or chopper-stabilized amplifiers. These new zero-drift amplifiers combine low cost with high accuracy. No external capacitors are required. With an offset voltage of only 3μV and drift of 0.008 μV/σ, the WS72551/WS72552 are perfectly suited for applications in which error sources cannot be tolerated. Temperature, position and pressure sensors, medical equipment, and strain gauge amplifiers benefit greatly from nearly zero drift over their operating temperature range. The rail-to-rail input and output swings provided by the WS72551/WS72552 make both high-side and low-side sensing easy. The WS72551/WS72552 are specified for the extended industrial/automotive temperature range (-40°C to +125°C). The WS72551 single amplifier is available in 8-lead MSOP, 8-lead narrow SOIC and 5-lead SOT23-5L packages. The WS72552 dual amplifier is available in 8-lead MSOP and 8-lead narrow SOIC surface mount packages.
