WILLSEMIDatasheet (PDF)

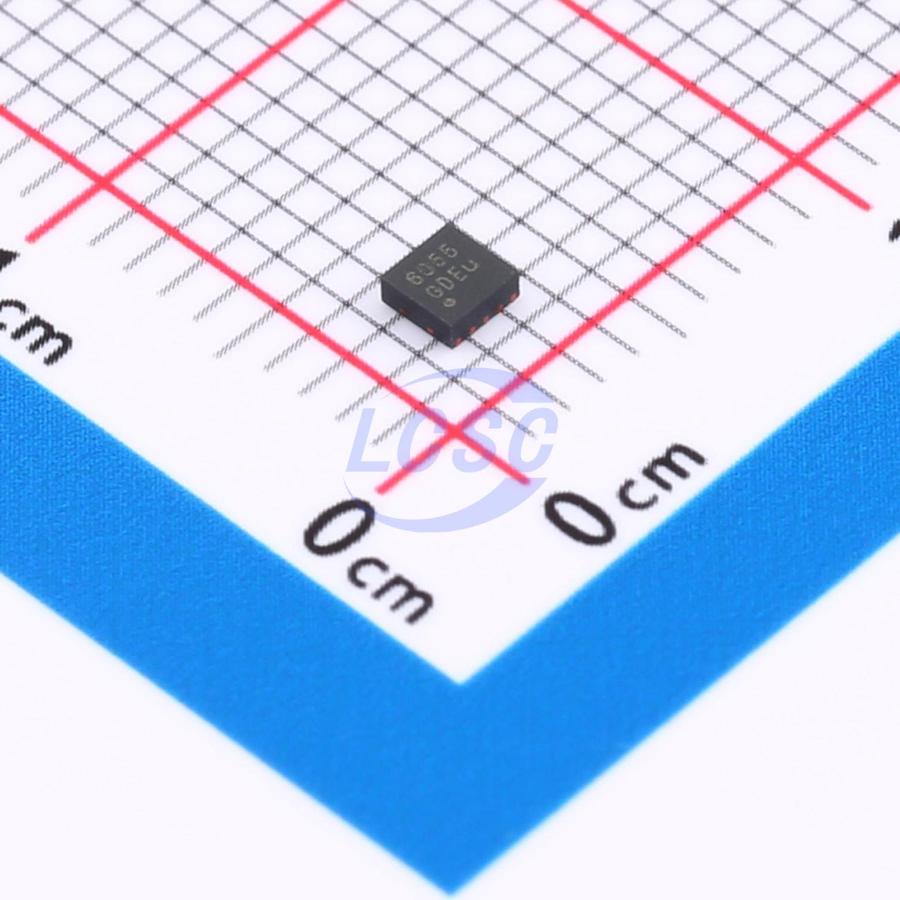

WS726055D-10/TR
350mA 2 5uV 6V/us 135dB 827uA 11.5MHz Rail-to-rail output DFN2x2-10 Instrumentation, Op Amps, Buffer Amps RoHS
DFN2x2-10ROHS CompliantActive
High Precision, Low Noise Operational Amplifiers
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WS726055D-10/TR
- Store part #
- C16197389
- Package / case
- DFN2x2-10
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,532 in stock
#C16197389
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.26 | ₹89.26 |
| 10+ | ₹72.62 | ₹726.20 |
| 30+ | ₹64.19 | ₹1,925.70 |
| 100+ | ₹55.98 | ₹5,598.00 |
| 500+ | ₹51.01 | ₹25,505.00 |
| 1,000+ | ₹48.42 | ₹48,420.00 |
1 × ₹89.26
₹89.26
excl. GST
₹105.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WS726055D-10/TR
₹89.26 for 1 + GST
Specifications
- Output Current
- 350mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5uV
- Slew Rate
- 6V/us
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 135dB
- Quiescent Current
- 827uA
- Gain Bandwidth Product
- 11.5MHz
- Features
- Enable/shutdown function
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
The WS726055 a dual high output drive CMOS operational amplifiers featured a peak output current of 350mA, and rail-to-rail output capability from a single 2.5V to 5.5V supply. This amplifier exhibits a high slew rate of 6V/μs and a gain-bandwidth product (GBP) of 11.5MHz. The WS726055 can drive typical headset levels (32Ω), as well as bias an RF power amplifier in wireless handset applications. The WS726055 is available with MSL 3 Level in DFN2x2-10 package. Standard products are Pb-Free and halogen-Free.
Applications
- RF Power Amplifier Biasing Controls
- Portable/Battery-Powered Audio Applications
- Portable Headphone Speaker Drivers (32Ω)
- Audio Hands-Free Car Phones (Kits)
- Laptop/Notebook Computers/TFT Panels
- Set-Top Boxes
- Digital-to-Analog Converter Buffers Transformer/Line Drivers
Key features
- 350mA Output Drive Capability
- Low Input Offset Voltage: 5μV (MAX)
- Low Noise: 40nV/√Hz at 1kHz
- 300mA Current Limitation
- Over-Temperature Protection
- Supply Voltage Range: 2.5V to 5.5V
- Supply Current: 0.95mA/Amplifier (TYP)
- Gain-Bandwidth Product: 11.5MHz
- High Slew Rate: 6V/μs
- Voltage Gain (RL = 2kΩ): 140dB
- Power Supply Rejection Ratio: 135dB
- No Phase Reversal for Over-Driven Inputs
- Unity-Gain Stable for Capacitive Loads to 780pF
