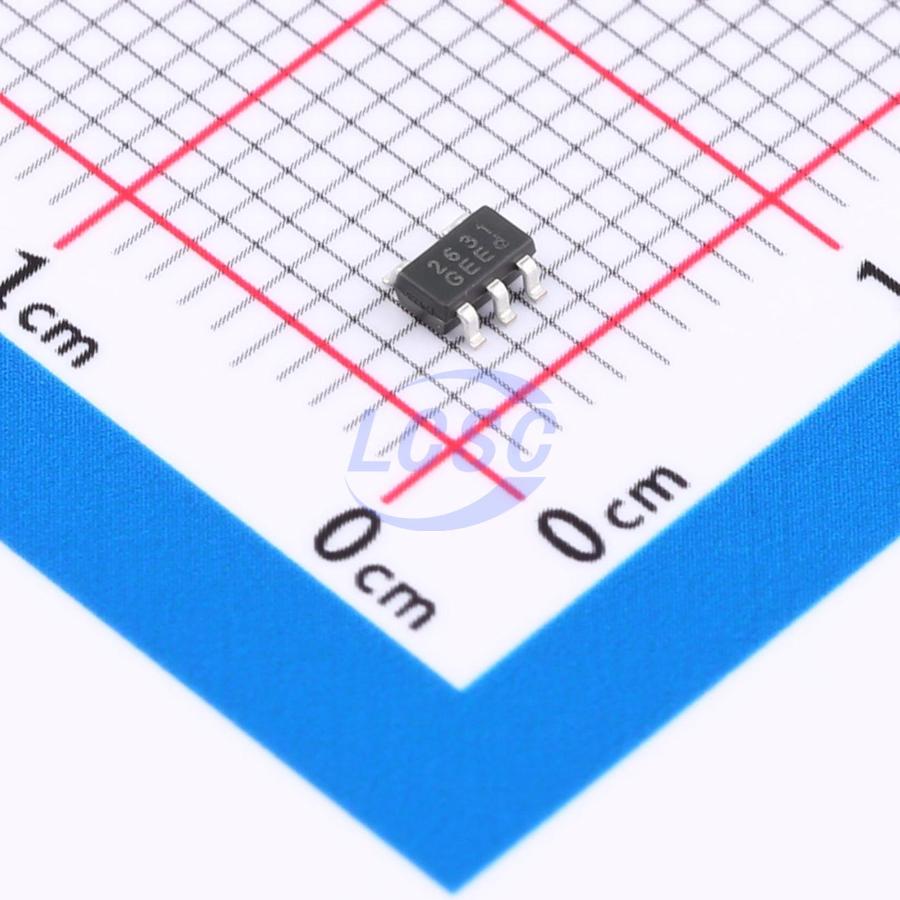

WS72631E-5/TR

130mA 2 2.5mV 5V/us 80dB 10pA 9MHz 720uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5L Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5LROHS CompliantActive

Rail-to-Rail Input Output CMOS Operational Amplifiers

Manufacturer: WILLSEMI
Manufacturer part #: WS72631E-5/TR
Store part #: C2841144
Package / case: SOT-23-5L
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,835 in stock

#C2841144

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹28.60	₹143.00
50+	₹22.83	₹1,141.50
150+	₹20.36	₹3,054.00
500+	₹17.27	₹8,635.00
3,000+	₹15.89	₹47,670.00
6,000+	₹15.07	₹90,420.00

Quantity (min 5, multiples of 5)

5 × ₹28.60

₹143.00

excl. GST

₹168.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

WS72631E-5/TR

₹143.00 for 5 + GST

Specifications

Output Current: 130mA
Number of Channels: 2
Vos - Input Offset Voltage: 2.5mV
Slew Rate: 5V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 9MHz
Quiescent Current: 720uA
Features: EMI filtering/RF suppression;ESD protection
Input Voltage Noise Density: 12.5nV/√Hz@1kHz
Dual Supply: -1.1V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.514 g

Overview

The WS72631 is a low power rail-to-rail input output operational amplifier featuring low current noise, high slew rate and wide signal bandwidth. The combination of low noise, low input bias currents, high speed and inside EMI filter make this amplifier useful in a wide variety of applications. Filters, integrators, photo-diode amplifiers, and high impedance sensors all benefit from this combination of performance features. Audio and other ac applications benefit from the wide bandwidth and low distortion of this device. Applications for this amplifier include power amplifier (PA) controls, laser diode control loops, portable and loop-powered instrumentation, audio amplification for portable devices, and ASIC input and output amplifiers. The WS72631 is dual channel version available in SOT23-5L package.
