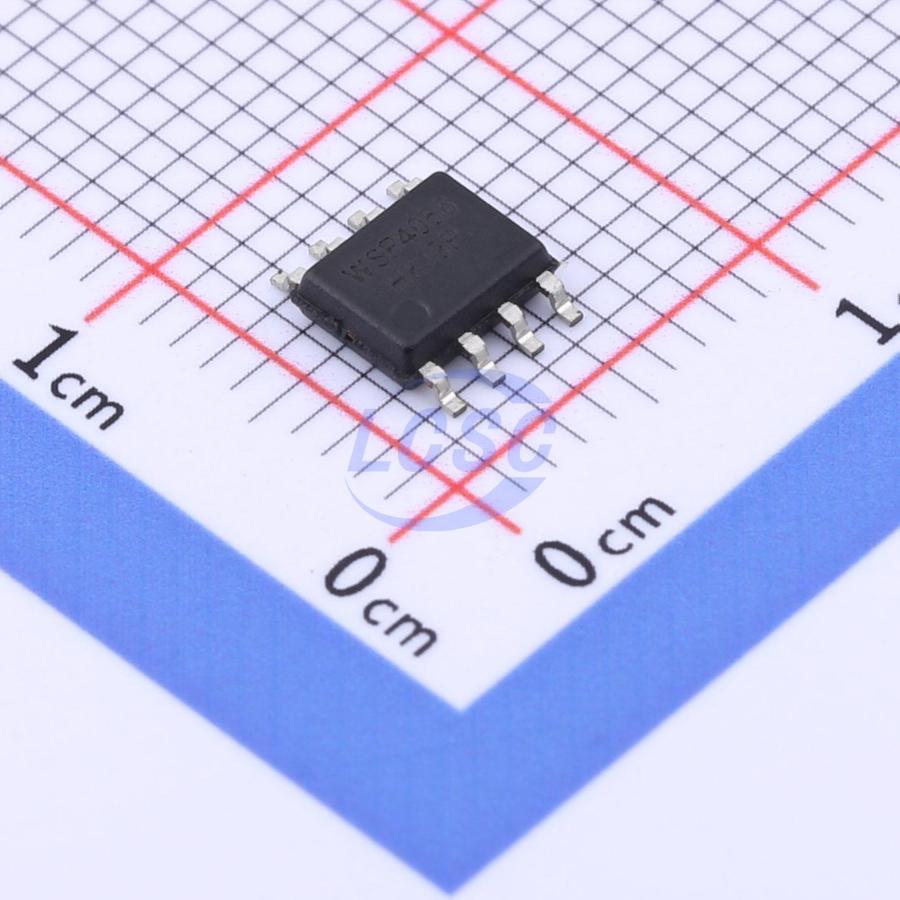

WSP4056
Battery Charging IC Lithium-ion/Polymer SOP-8
1A Charger IC
- Manufacturer
- Winsok Semicon
- Manufacturer part #
- WSP4056
- Store part #
- C2985892
- Package / case
- SOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,745 in stock
#C2985892
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.56 | ₹62.80 |
| 50+ | ₹9.95 | ₹497.50 |
| 150+ | ₹8.65 | ₹1,297.50 |
| 500+ | ₹7.67 | ₹3,835.00 |
| 3,000+ | ₹6.46 | ₹19,380.00 |
| 6,000+ | ₹6.06 | ₹36,360.00 |
5 × ₹12.56
₹62.80
excl. GST
₹74.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WSP4056
₹62.80 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 2uA
- Operating Voltage
- 4V~8V
- Type of Battery
- Lithium Battery
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.24 g
Overview
WSP4056 is a complete single-cell lithium-ion battery charger with constant-current/constant-voltage linear charging topology. The SOP8/MSOP package with bottom heat pad and minimal external component count make the WSP4056 an ideal choice for portable applications. The WSP4056 is compatible with both USB power sources and adapter power supplies. The internal PMOSFET architecture combined with reverse-charge protection eliminates the need for an external isolation diode. Thermal feedback automatically adjusts the charge current to limit die temperature during high-power operation or elevated ambient temperature conditions. The charge voltage is fixed at 4.2V, while the charge current can be externally set via a single resistor. When the charge current drops to 1/10 of the programmed value after reaching the final float voltage, the WSP4056 automatically terminates the charge cycle. When the input voltage (AC adapter or USB power) is removed, the WSP4056 automatically enters a low-current state, reducing battery leakage current to below 2uA. The WSP4056 can also be placed in shutdown mode when power is present, reducing supply current to 55uA. Additional features of the WSP4056 include battery temperature monitoring, undervoltage lockout, automatic recharge, and two LED status pins for indicating charge and end-of-charge states.
Applications
- Mobile phones
- MP3, MP4 players
- Digital cameras
- Electronic dictionaries
- GPS
- Portable devices, various chargers
Key features
- Charge current up to 1000mA
- No MOSFET, sense resistor, or isolation diode required
- Complete linear charger for single-cell Li-Ion batteries in SOP package
- Constant-current/constant-voltage operation with thermal regulation for maximizing charge rate without risk of overheating; stable 1A constant-current charging significantly reduces charging time for 5000mAh Li-Ion batteries
- 4.2V preset charge voltage with ±1% accuracy
- Charge current monitor output for battery fuel gauging
- Automatic recharge
- Dual charge status outputs with no-battery and fault condition indication
- C/10 charge termination
- 55uA supply current in standby mode
- 2.9V trickle charging
- Soft-start limits inrush current
- Battery temperature monitoring
- 8-pin SOP/MSOP package
