WSTDW01

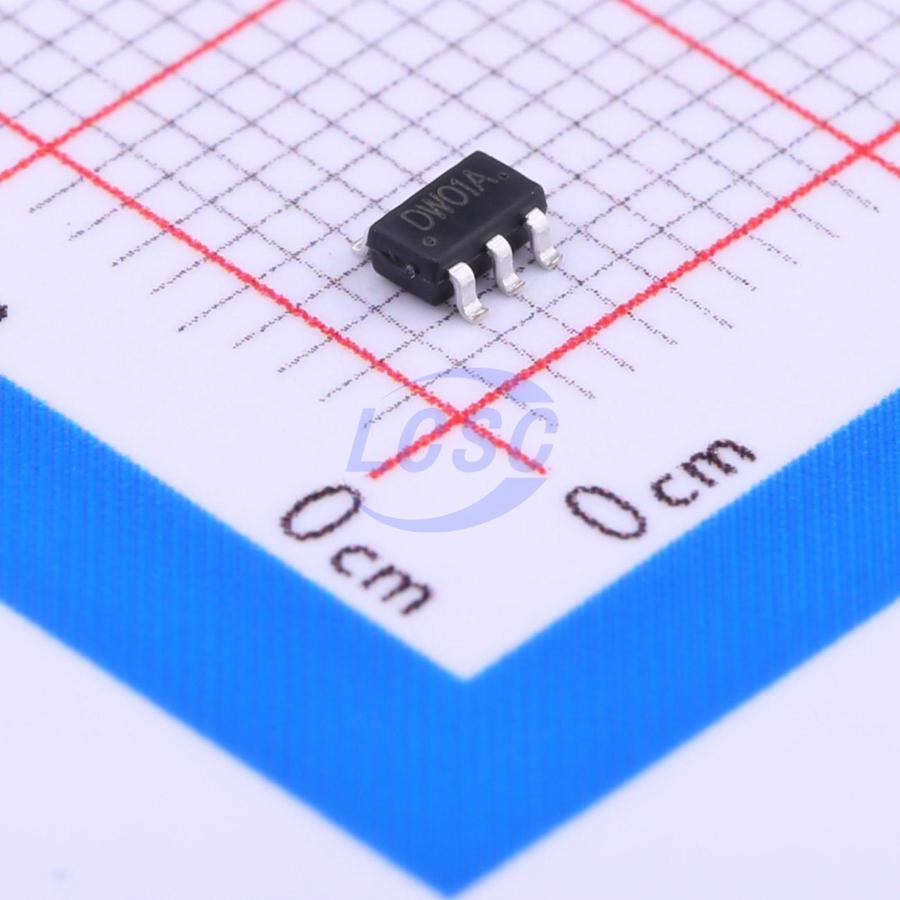

Lithium Battery SOT-23-6 Battery Management RoHS
Battery protection IC
- Manufacturer
- Winsok Semicon
- Manufacturer part #
- WSTDW01
- Store part #
- C86873
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,080 in stock
#C86873
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.93 | ₹89.30 |
| 100+ | ₹7.16 | ₹716.00 |
| 300+ | ₹6.27 | ₹1,881.00 |
| 3,000+ | ₹5.13 | ₹15,390.00 |
| 6,000+ | ₹4.60 | ₹27,600.00 |
| 9,000+ | ₹4.34 | ₹39,060.00 |
10 × ₹8.93
₹89.30
excl. GST
₹105.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WSTDW01
₹89.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 100nA
- 0V Battery Charge
- Not supported
- Operating Voltage
- 2V~4.3V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
The DW01 battery protection IC is designed to protect lithium-ion/polymer battery from damage or degrading the lifetime due to overcharge, overdischarge, and/or overcurrent for one-cell lithium-ion/polymer battery powered systems, such as cellular phones. The ultra-small package and less required external components make it ideal to integrate the DW01 into the limited space of battery pack. The accurate ±50mV overcharging detection voltage ensures safe and full utilization charging. The very low standby current drains little current from the cell while in storage.
Key features
- Protection IC for One-Cell Lithium-Ion / Lithium-Polymer Battery Pack
- Reduction in Board Size due to Miniature Package SOT-23-6
- Ultra-Low Quiescent Current at z μA (Vcc = 3.9V)
- Ultra-Low Power-Down Current at 0.1 μA (Vcc = 2.0V)
- Precision Overcharge Protection Voltage 4.3V ±50mV for the DW01 Plus
- Load Detection Function during Overcharge Mode
- Two Detection Levels for Overcurrent Protection
- Delay times are generated by internal circuits
- No external capacitors required
