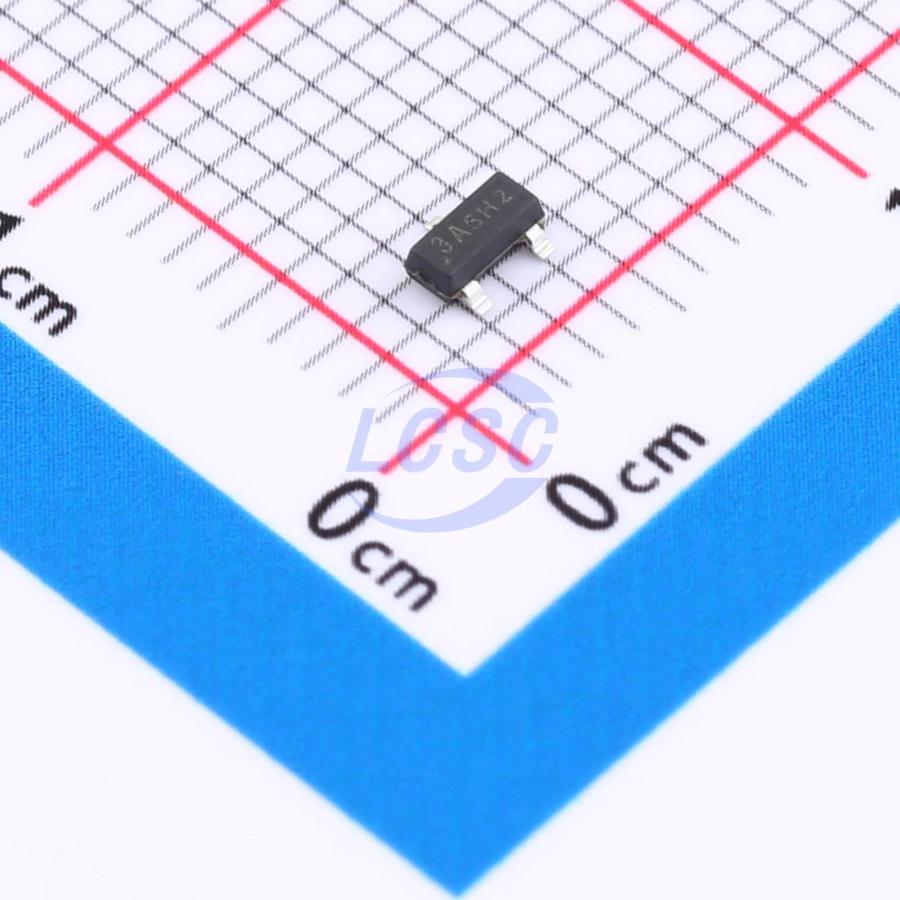

XB3303A
Lithium Battery SOT-23 Battery Management RoHS
Single-cell lithium-ion/lithium-polymer rechargeable battery pack protection chip
- Manufacturer
- XySemi
- Manufacturer part #
- XB3303A
- Store part #
- C154937
- Package / case
- SOT-23
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,180 in stock
#C154937
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.70 | ₹57.00 |
| 100+ | ₹4.46 | ₹446.00 |
| 300+ | ₹3.84 | ₹1,152.00 |
| 3,000+ | ₹3.36 | ₹10,080.00 |
| 6,000+ | ₹2.99 | ₹17,940.00 |
| 9,000+ | ₹2.79 | ₹25,110.00 |
10 × ₹5.70
₹57.00
excl. GST
₹67.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XB3303A
₹57.00 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1.5uA
- 0V Battery Charge
- Support
- Operating Voltage
- 2.8V~6V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The XB3303A monitors the voltage and current of a battery and protects it from being damaged due to overcharge voltage, overdischarge voltage, overdischarge current, and short circuit conditions by disconnecting the battery from the load or charger. These functions are required in order to operate the battery cell within specified limits. The device requires only one external capacitor. The MOSFET is integrated and its RSS(ON) is as low as 56mΩ typical.
Applications
- Single-cell Li-ion/LiPo battery
Key features
- Charger reverse connection protection
- Battery reverse connection protection
- Integrated advanced power MOSFET with equivalent 56mΩ resistance
- Ultra-thin package: SOT23-3
- Single external capacitor required
- Over-temperature protection
- Overcharge current protection
- 2-level overcurrent protection
- Overdischarge current 1
- Load short-circuit current
- Charger detection function
- 0V battery charging function
- Internal delay time setting
- High-accuracy voltage detection
- Low quiescent current
- Operating state: 2.8 μA typical
- Overdischarge mode: 1.5 μA typical
- RoHS compliant and lead-free
