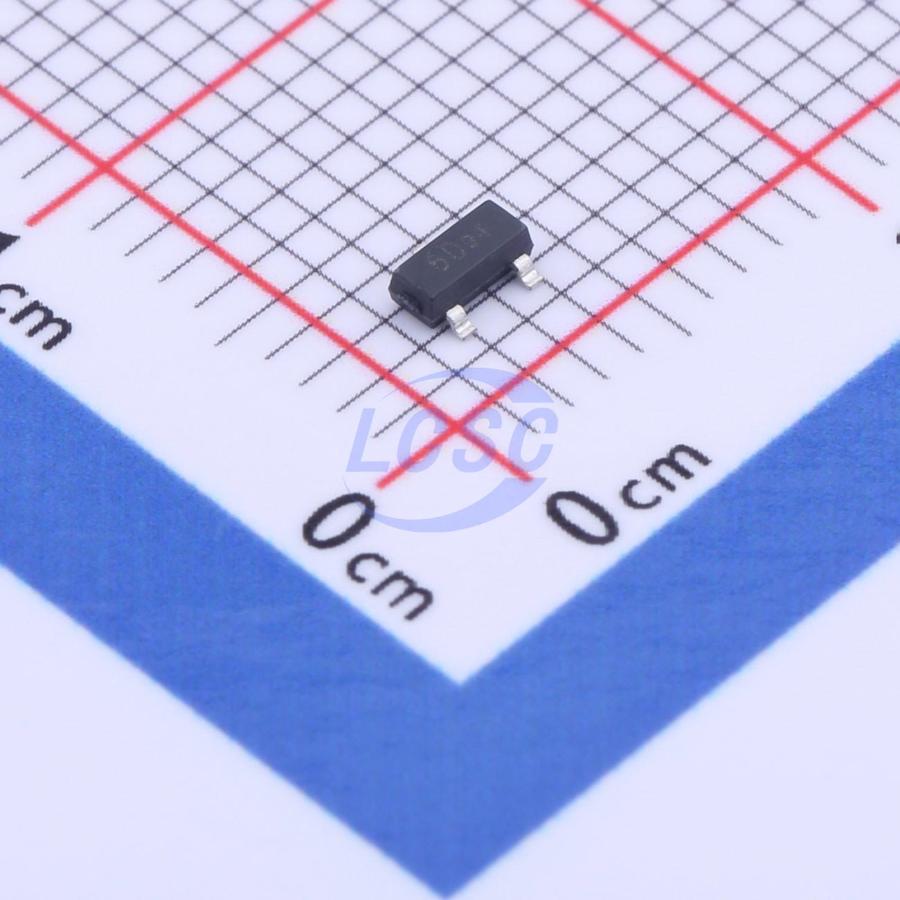

XB3306D
Lithium Battery SOT-23-3 Battery Management RoHS
One Cell Lithium-ion/Polymer Battery Protection IC
- Manufacturer
- XySemi
- Manufacturer part #
- XB3306D
- Store part #
- C2759992
- Package / case
- SOT-23-3
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,750 in stock
#C2759992
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.95 | ₹99.50 |
| 100+ | ₹7.87 | ₹787.00 |
| 300+ | ₹6.83 | ₹2,049.00 |
| 3,000+ | ₹6.05 | ₹18,150.00 |
| 6,000+ | ₹5.42 | ₹32,520.00 |
| 9,000+ | ₹5.11 | ₹45,990.00 |
10 × ₹9.95
₹99.50
excl. GST
₹117.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XB3306D
₹99.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1.5uA
- 0V Battery Charge
- Support
- Operating Voltage
- 2.8V~6V
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The XB3306D product is a high integration solution for lithiumion/polymer battery protection. XB3306D contains advanced power MOSFET, high-accuracy voltage detection circuits and delay circuits. XB3306D is put into an ultra-small SOT23-3 package and only one external component makes it an ideal solution in limited space of battery pack. XB3306D has all the protection functions required in the battery application including overcharging, overdischarging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage. The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring longterm battery life.
Applications
- One-Cell Lithium-ion Battery Pack
- Lithium-Polymer Battery Pack
Key features
- Protection of Charger Reverse Connection
- Protection of Battery Cell Reverse Connection
- Integrate Advanced Power MOSFET with Equivalent of 40mΩ RSS(ON)
- Ultra-small SOT23-3 Package
- Only One External Capacitor Required
- Over-temperature Protection
- Overcharge Current Protection
- Two-step Overcurrent Detection: - Overdischarge Current - Load Short Circuiting
- Charger Detection Function
- 0V Battery Charging Function
- Delay Times are generated inside
- High-accuracy Voltage Detection
- Low Current Consumption
- Operation Mode: 2.8μA typ.
- Power-down Mode: 1.5μA typ.
- RoHS Compliant and Lead (Pb) Free
