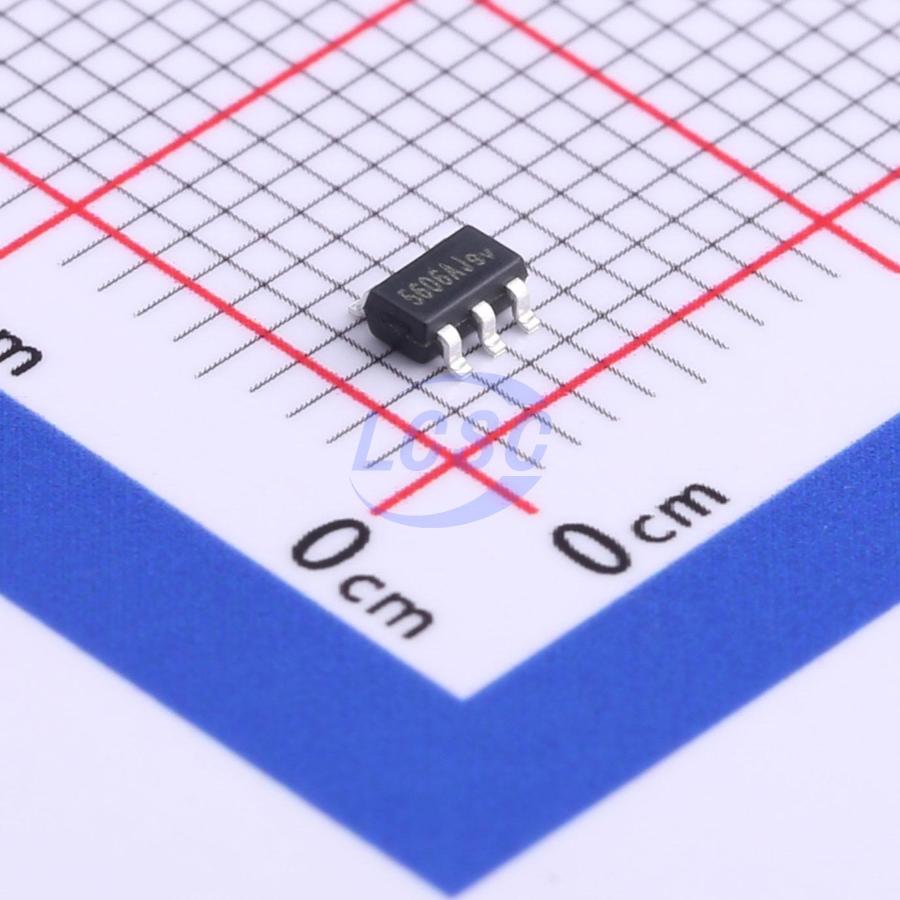

XB5606AJ
Lithium Battery 9A SOT-23-5 Battery Management RoHS
One Cell Lithium-ion/Polymer Battery Protection IC
- Manufacturer
- XySemi
- Manufacturer part #
- XB5606AJ
- Store part #
- C669680
- Package / case
- SOT-23-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26,735 in stock
#C669680
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.88 | ₹54.40 |
| 50+ | ₹8.48 | ₹424.00 |
| 150+ | ₹7.28 | ₹1,092.00 |
| 500+ | ₹6.38 | ₹3,190.00 |
| 3,000+ | ₹5.66 | ₹16,980.00 |
| 6,000+ | ₹5.31 | ₹31,860.00 |
5 × ₹10.88
₹54.40
excl. GST
₹64.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XB5606AJ
₹54.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 2.2uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 2V~6V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
- Charge Current - Max
- 9A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The XB5606AJ product is a high integration solution for lithiumion/polymer battery protection. XB5606AJ contains advanced power MOSFET, high-accuracy voltage detection circuits and delay circuits. XB5606AJ is put into an ultra-small SOT23-5 package and only one external component makes it an ideal solution in limited space of battery pack. XB5606AJ has all the protection functions required in the battery application including overcharging, overdischarging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage. The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring longterm battery life.
Applications
- One-Cell Lithium-ion Battery Pack
- Lithium-Polymer Battery Pack
- Power Bank
Key features
- Protection of Charger Reverse Connection
- Protection of Battery Cell Reverse Connection
- Integrate Advanced Power MOSFET with Equivalent of 17.5mΩ RSS(ON)
- Ultra-small SOT23-5 Package
- Only One External Capacitor Required
- Over-temperature Protection
- Overcharge Current Protection
- Two-step Overcurrent Detection: Overdischarge Current, Load Short Circuiting
- Charger Detection Function
- 0V Battery Charging Function
- Delay Times are generated inside
- High-accuracy Voltage Detection
- Low Current Consumption: Operation Mode: 3.9μA typ., Power-down Mode: 2.2μA typ.
- RoHS Compliant and Lead (Pb) Free
