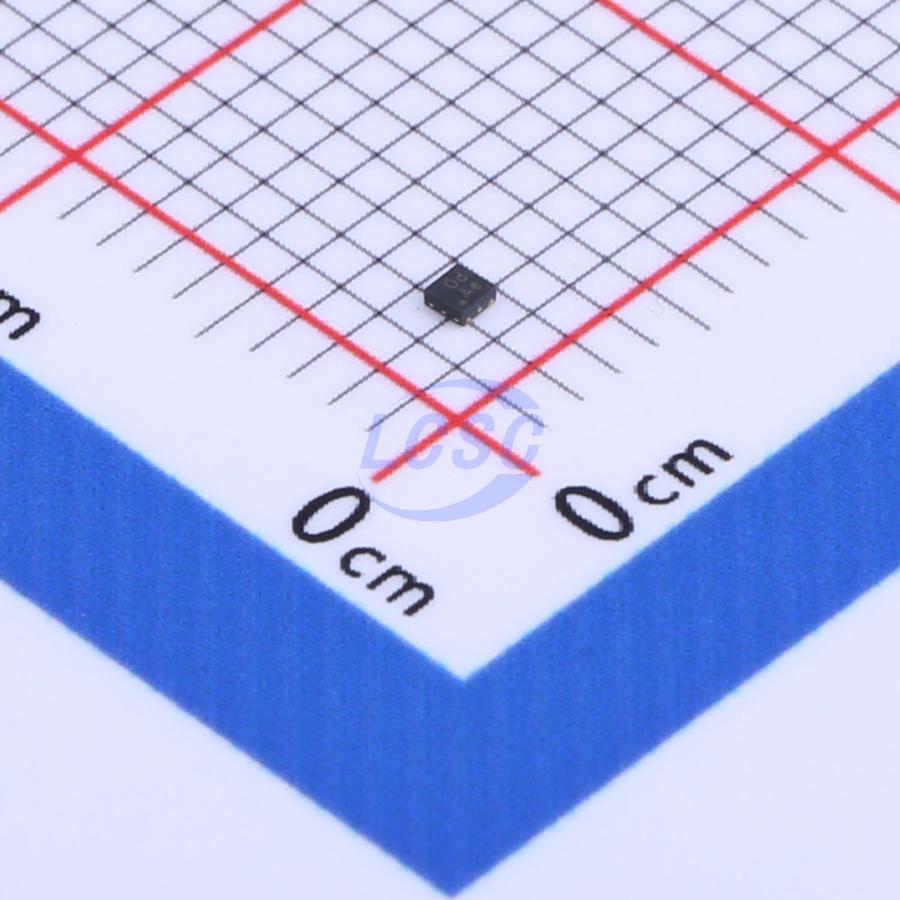

XB6042Q2SV
Lithium Battery UDFN-4(1x1) Battery Management RoHS
- Manufacturer
- XySemi
- Manufacturer part #
- XB6042Q2SV
- Store part #
- C2759999
- Package / case
- UDFN-4(1x1)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,760 in stock
#C2759999
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.11 | ₹135.55 |
| 50+ | ₹21.42 | ₹1,071.00 |
| 150+ | ₹18.97 | ₹2,845.50 |
| 500+ | ₹15.93 | ₹7,965.00 |
| 2,500+ | ₹14.58 | ₹36,450.00 |
| 5,000+ | ₹13.76 | ₹68,800.00 |
| 12,000+ | ₹13.60 | ₹1,63,200.00 |
| 24,000+ | ₹13.48 | ₹3,23,520.00 |
5 × ₹27.11
₹135.55
excl. GST
₹159.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 12,000 per reel
XB6042Q2SV
₹135.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 100nA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 12,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
The XB6042 series is a highly integrated protection solution for lithium-ion/polymer batteries. This series integrates advanced power MOSFETs, high-precision voltage detection circuitry, and delay circuits. Housed in a DFN1X1x0.37-4 package and requiring only one external component, it is ideal for battery pack applications where board space is limited. The XB6042 series provides all the protection functions required for battery applications, including overcharge, over-discharge, overcurrent, and load short-circuit protection. Precise overcharge detection voltage ensures safe and complete charging. Low standby current minimizes battery drain during storage. The device is designed not only for digital cellular phones, but also for any other lithium-ion and lithium-polymer battery-powered information devices requiring long battery life.
Applications
- Single-cell Li-ion battery pack
- LiPo battery pack
- Wearable devices
- Bluetooth headsets
Key features
- Charger reverse polarity protection
- Battery reverse polarity protection with no external load
- Integrated advanced power MOSFET with 44mΩ on-resistance
- DFN1X1x0.37-4 package
- Low over-charge release voltage
- Over-temperature protection
- Over-charge current protection: 0.4A
- Two-level overcurrent detection: over-discharge current 0.4A and load short circuit
- Charger detection function
- 0V battery charging function
- Internally generated delay time
- High-accuracy voltage detection
- Low current consumption: 1.5μA typical in active mode
- RoHS compliant and lead-free
