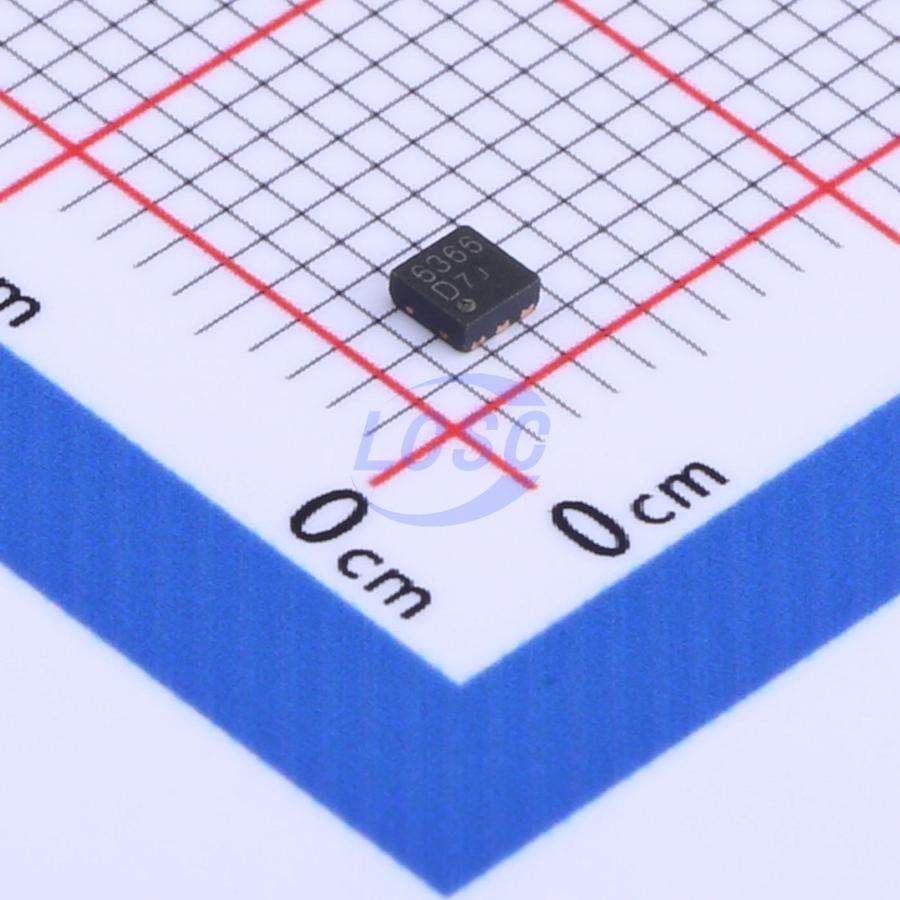

XB6366D
Lithium Battery 4.2A DFN-6-EP(2x2) Battery Management
One Cell Lithium-ion/Polymer Battery Protection IC
- Manufacturer
- XySemi
- Manufacturer part #
- XB6366D
- Store part #
- C2760016
- Package / case
- DFN-6-EP(2x2)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,755 in stock
#C2760016
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.73 | ₹113.65 |
| 50+ | ₹17.85 | ₹892.50 |
| 150+ | ₹15.76 | ₹2,364.00 |
| 500+ | ₹13.15 | ₹6,575.00 |
| 3,000+ | ₹11.99 | ₹35,970.00 |
| 6,000+ | ₹11.29 | ₹67,740.00 |
5 × ₹22.73
₹113.65
excl. GST
₹134.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XB6366D
₹113.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1.5uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
- Charge Current - Max
- 4.2A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The XB6366D product is a high integration solution for lithiumion/polymer battery protection. XB6366D contains advanced power MOSFET, high-accuracy voltage detection circuits and delay circuits. XB6366D is put into an ultra-small DFN2X2-6 package and only one external component makes it an ideal solution in limited space of battery pack. XB6366D has all the protection functions required in the battery application including overcharging, overdischarging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage. The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring longterm battery life.
Applications
- One-Cell Lithium-ion Battery Pack
- Lithium-Polymer Battery Pack
Key features
- Protection of Charger Reverse Connection
- Protection of Battery Cell Reverse Connection
- Integrate Advanced Power MOSFET with Equivalent of 45mΩ RSS(ON)
- Ultra-small DFN2X2-6 Package
- Only One External Capacitor Required
- Over-temperature Protection
- Overcharge Current Protection
- Two-step Overcurrent Detection: Overdischarge Current, Load Short Circuiting
- Charger Detection Function
- 0V Battery Charging Function
- Delay Times are generated inside
- High-accuracy Voltage Detection
- Low Current Consumption: Operation Mode: 2.8μA typ., Power-down Mode: 1.5μA typ.
- RoHS Compliant and Lead (Pb) Free
