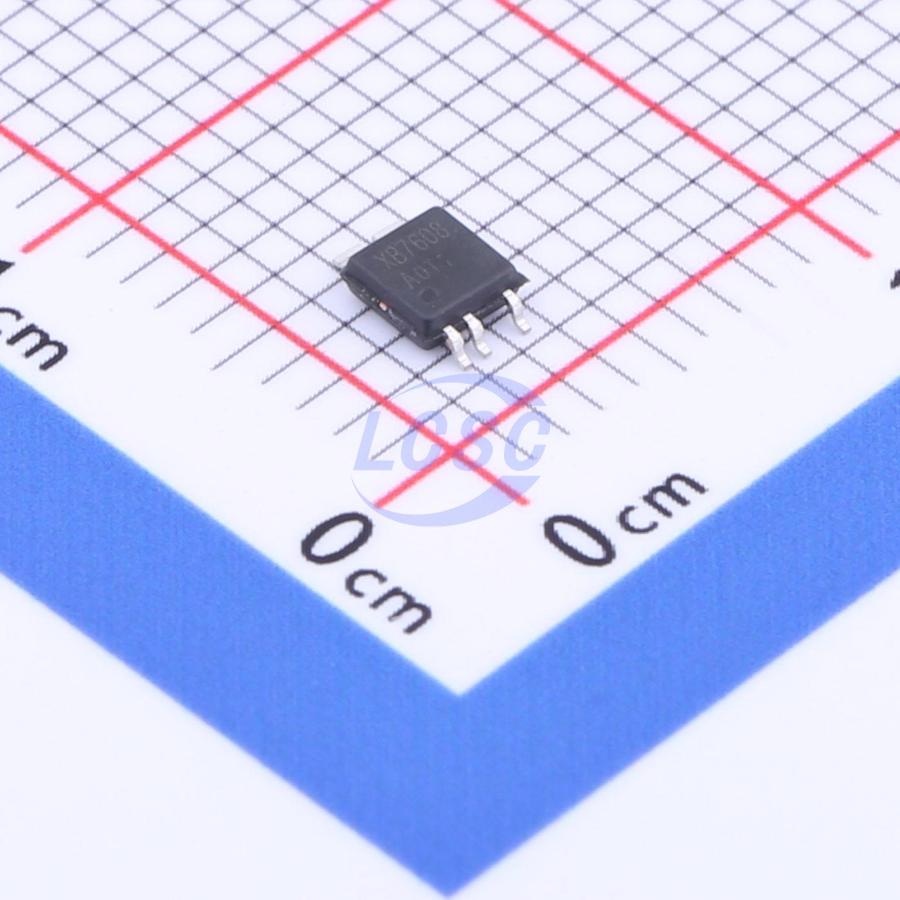

XB7608AJ
Lithium Battery CPC-5 Battery Management
One Cell Lithium-ion/Polymer Battery Protection IC
- Manufacturer
- XySemi
- Manufacturer part #
- XB7608AJ
- Store part #
- C2681921
- Package / case
- CPC-5
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,300 in stock
#C2681921
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.88 | ₹59.40 |
| 50+ | ₹9.27 | ₹463.50 |
| 150+ | ₹7.98 | ₹1,197.00 |
| 500+ | ₹7.00 | ₹3,500.00 |
| 2,500+ | ₹6.22 | ₹15,550.00 |
| 5,000+ | ₹5.82 | ₹29,100.00 |
5 × ₹11.88
₹59.40
excl. GST
₹70.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
XB7608AJ
₹59.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1.6uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 2V~6V
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
The XB7608AJ series product is a high integration solution for lithiumion/polymer battery protection. XB7608AJ contains advanced power MOSFET, high-accuracy voltage detection circuits and delay circuits. XB7608AJ is put into an ultra-small CPC5 package and only one external component makes it an ideal solution in limited space of battery pack. XB7608AJ has all the protection functions required in the battery application including overcharging, overdischarging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage. The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring longterm battery life.
Applications
- One-Cell Lithium-ion Battery Pack
- Lithium-Polymer Battery Pack
Key features
- Protection of Charger Reverse Connection
- Protection of Battery Cell Reverse Connection
- Integrate Advanced Power MOSFET with Equivalent of 15.5mΩ RSS(ON)
- Ultra-small CPC5 Package
- Only One External Capacitor Required
- Over-temperature Protection
- Overcharge Current Protection
- Two-step Overcurrent Detection: -Overdischarge Current -Load Short Circuiting
- Charger Detection Function
- 0V Battery Charging Function
- Delay Times are generated inside
- High-accuracy Voltage Detection
- Low Current Consumption
- Operation Mode: 3.5μA typ.
- Power-down Mode: 1.6μA typ.
- RoHS Compliant and Lead (Pb) Free
