XySemiDatasheet (PDF)

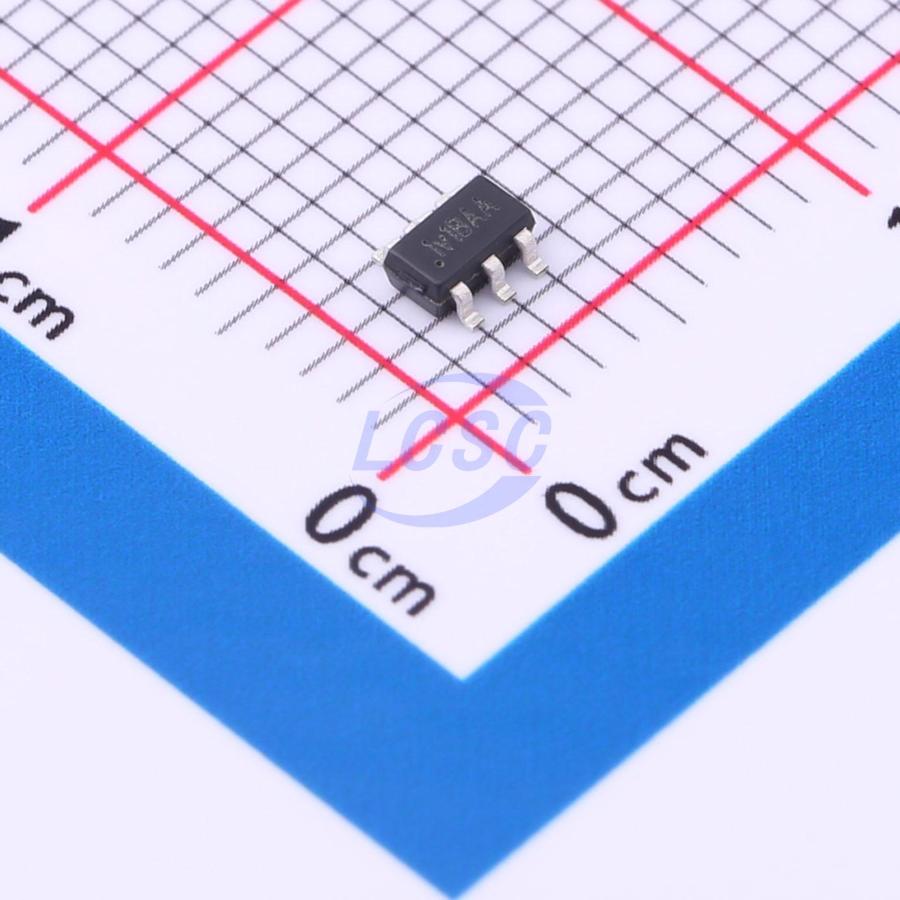

XBM3212DBA
SOT-23-6 Battery Management RoHS
SOT-23-6ROHS CompliantActive
Li-ion/Polymer 2-Cell Protector
- Manufacturer
- XySemi
- Manufacturer part #
- XBM3212DBA
- Store part #
- C2980176
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,975 in stock
#C2980176
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.81 | ₹114.05 |
| 50+ | ₹17.91 | ₹895.50 |
| 150+ | ₹15.81 | ₹2,371.50 |
| 500+ | ₹13.19 | ₹6,595.00 |
| 3,000+ | ₹12.03 | ₹36,090.00 |
| 6,000+ | ₹11.32 | ₹67,920.00 |
5 × ₹22.81
₹114.05
excl. GST
₹134.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XBM3212DBA
₹114.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 3.3uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery;LiFePO4 Battery
- Features
- Overcharge protection;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection
- The Chip Type
- Protection IC
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
XBM3212 Series is a protection IC for 2 serial-cell lithium-ion / lithium polymer recharge able batteries and includes high accuracy voltage detection circuits and delay circuits. XBM3212 Series is suitable for protecting 2 serial-cell rechargeable lithium-ion / lithium polymer battery packs from overcharge, over-discharge, overcurrent and short-circuiting.
Applications
- Power Tools
- E-Bike
- Power Bank
- Power Amplifier
- 2 Cell Lithium-ion or Lithium polymer rechargeable battery pack
- Lithium iron phosphate battery
Key features
- Manufactured with High Voltage Tolerant Process Maximum Rating 30V
- Low supply current
- 2-Cell voltage 7.2V Typ. 8µA(Iq)
- 2-Cell voltage 4.0V Typ. 3.3µA(Isd)
- SOT23-6 Package
- Variety of detector threshold
- Over-charge detector threshold - Vcu: 3.6V - 4.5V step of 0.1V ±25mV
- Overcharge Release Voltage - VcL = Vcu - 0.2V ±50mV
- Over-discharge detector threshold VDL: 2.1V - 3.0V step of 0.1V ±80mV
- Over-discharge Release Voltage - VDR ±100mV
- Discharge-current threshold 0.1V
- Short detector threshold 1.0V (Fixed)
- Charge-current threshold -0.1V
- Over-discharge self-recovery function
- Broken line protection function
- Over-charge detector Output Delay 1s
- Over-discharge detector Output Delay 100ms
- Discharge-current detector Output Delay 8ms
- Charge-current detector Output Delay 8ms
- Short Circuit detector Output Delay 130µs
- 0V Battery Charging Function
- ESD HBM: 4KV
- RoHS Compliant and Lead Pb Free
