SiChangeDatasheet (PDF)

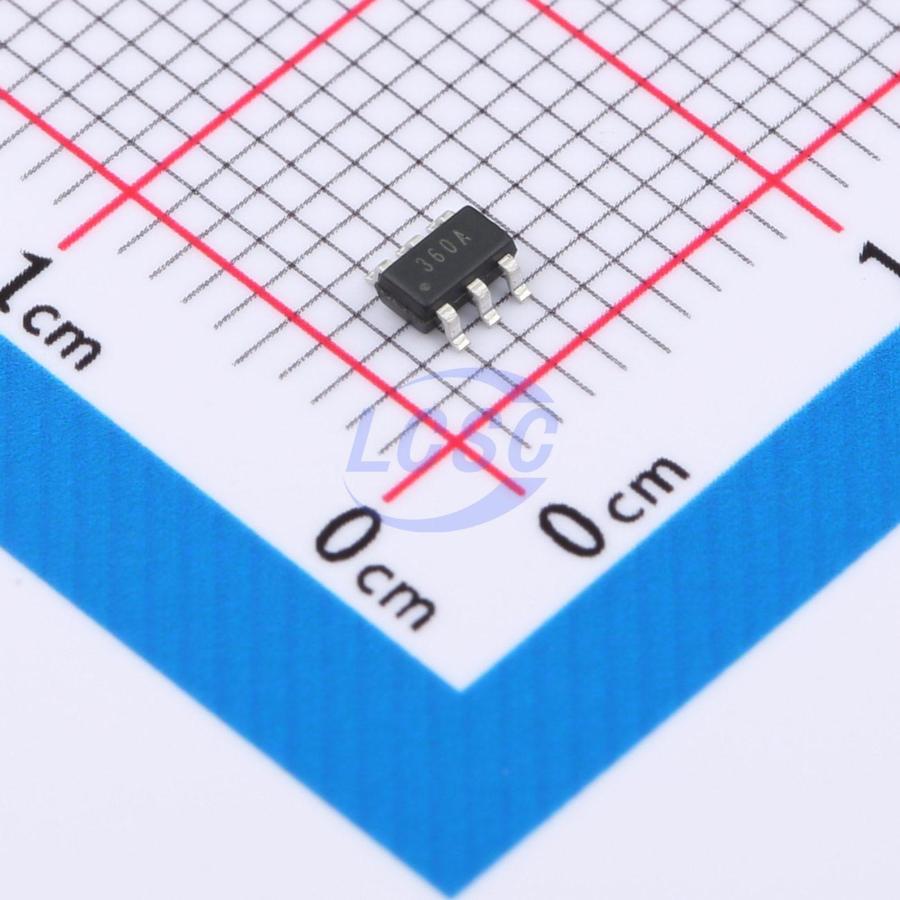

XC2360A
12 Bit Analog to Digital Converter 1 Input SAR SOT-23-6
SOT-23-6RoHSActive
1000 ksps, 3.3V - 4.8V, ultra-low power consumption, 12-bit SAR analog-to-digital converter
- Manufacturer
- SiChange
- Manufacturer part #
- XC2360A
- Store part #
- C41383382
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,214 in stock
#C41383382
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹219.45 | ₹219.45 |
| 10+ | ₹185.76 | ₹1,857.60 |
| 30+ | ₹164.69 | ₹4,940.70 |
| 100+ | ₹142.96 | ₹14,296.00 |
| 500+ | ₹133.19 | ₹66,595.00 |
| 1,000+ | ₹129.06 | ₹1,29,060.00 |
1 × ₹219.45
₹219.45
excl. GST
₹258.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC2360A
₹219.45 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Quiescent Current (Iq)
- 1.56mA
- Voltage - Supply
- 3V~4.8V
- Number of Channels
- 1
- Integral non - linearity
- 0.5LSB
- Clock/Oscillator
- External
- Clock Frequency
- 20MHz
- Features
- Power-on reset
- Resolution(Bits)
- 12;1MHz
- S/N Ratio
- 72.4dB
- DNL (LSB)
- 1.5LSB
- ADC architecture
- SAR
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The XC2360A is a 12- bit, high speed, low power, and small- sized SuccessiveApproximation- Register (SAR) ADC. The supply current drops at lower sampling rate because the devices automatically power down after conversions. The full- scale input of the XC2360A is 0V to VDD or VREF. This device can operate from a single 3.3V to 4.8 V supply with a 1000 KSPS throughput. The XC2360A is available in a 6- pin SOT- 23 package and has an operating temperature range of - 40℃ to 85℃ The XC2360A is a drop- in replacement for the LTC2360 and consumes only one third dynamic power of their counterpart.
Applications
- Communication Systems
- Data Acquisition Systems
- Handheld Portable Devices
- Uninterrupted Power Supplies
- Battery- Operated Systems
- Automotive
Key features
- 12- Bit Resolution
- Low Power (XC2360A typical): 2.30mW (3.3V, 1000KSPS), 10.0mW (4.5V, 1000KSPS)
- Single 3.3V to 4.8V Supply Operation for XC2360A
- Fast Throughput Rate: 1000 KSPS for XC2360A
- ±1.5 LSB INL, ±1.5 LSB DNL
- No Data Latency
- SPI/MICROWIRE Compatible Serial Interface
- Guaranteed Operation from - 40°C to 85°C
- 6- Pin SOT- 23 Package
- Second- Source for LTC2360
