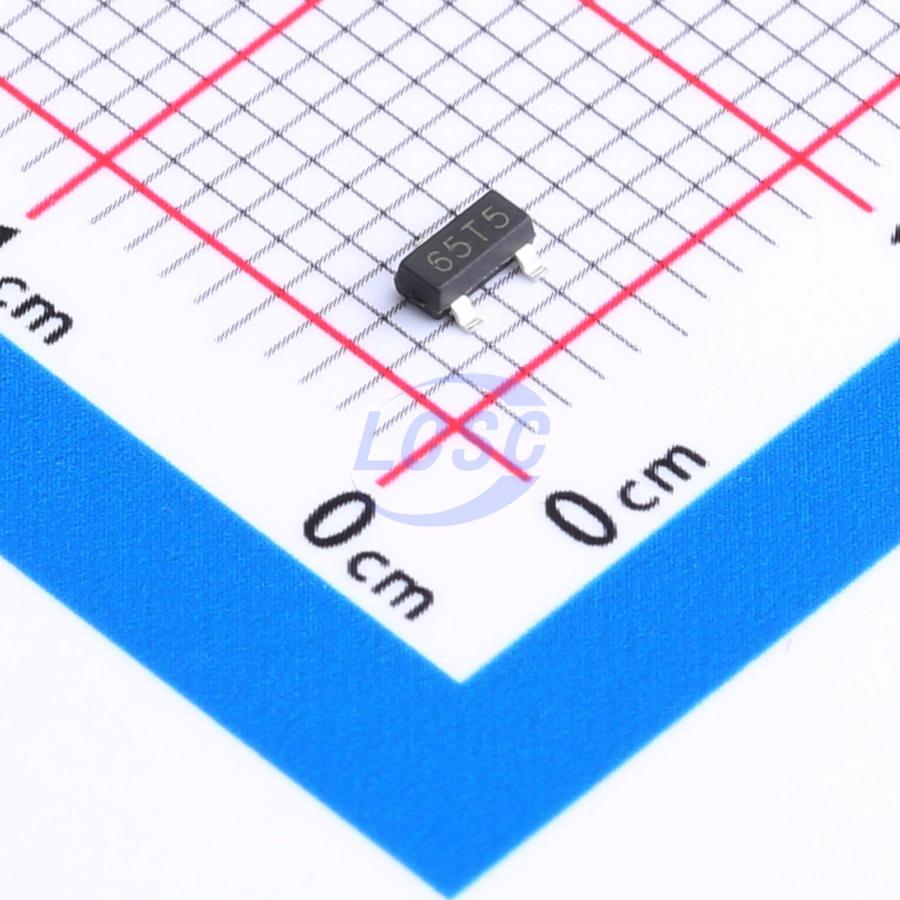

XC6206P252MR-MS
2.5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
High-precision, low-power 3-terminal positive voltage regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- XC6206P252MR-MS
- Store part #
- C5252896
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,000 in stock
#C5252896
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.50 | ₹125.00 |
| 500+ | ₹1.97 | ₹985.00 |
| 3,000+ | ₹1.52 | ₹4,560.00 |
| 6,000+ | ₹1.35 | ₹8,100.00 |
| 24,000+ | ₹1.20 | ₹28,800.00 |
| 51,000+ | ₹1.11 | ₹56,610.00 |
50 × ₹2.50
₹125.00
excl. GST
₹147.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206P252MR-MS
₹125.00 for 50 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+85℃@(Tj)
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Operating Voltage
- 6.5V
- Output Current
- 250mA
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.034 g
Overview
XC6206PXXXMR-MS series are a highly precise, lower consumption, 3 terminal, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6206PXXXMR-MS consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 3.6V. XC6206PXXXMR-MS series are available in SOT-23 packages.
Applications
- Battery-powered equipment
- Reference voltage sources
- Cameras, video cameras
- Portable AV systems
- Mobile phones
- Portable games
Key features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- Low Quiescent Current: 8uA at 6V
- Output voltage accuracy: tolerance ±2.5%
