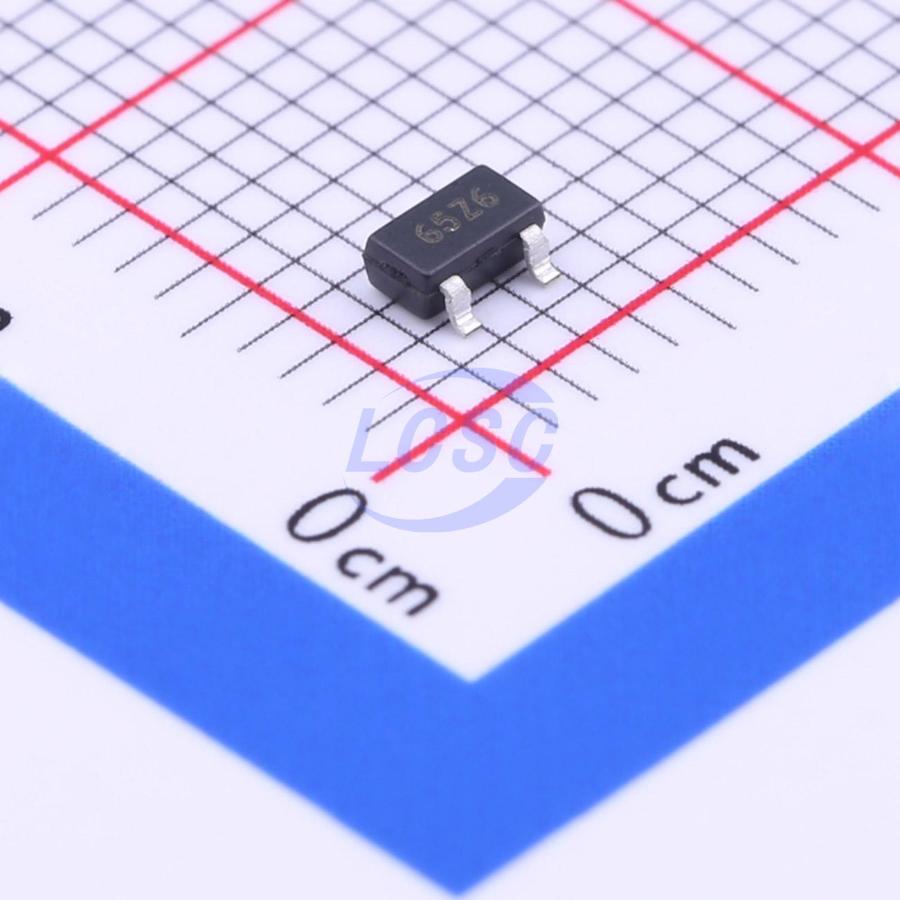

XC6206P302MR-G

The XC6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The currrent limiter's foldback circuit also operates as a short protect for the output current limiter and the output pin. Output voltage can be set internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. SOT-23, SOT-89, TO-92 and USP-6B packages are available.

Applications

• Battery powered equipment
• Reference voltage sources
• Cameras, video cameras
• Portable AV systems
• Mobile phones
• Portable games
• Cordless phones, wireless communication equipment

Key features

• CMOS
• Maximum Output Current: 250mA (5.0V type)
• Dropout Voltage: 250mV @ 100mA (3.0V type)
• Maximum Operating Voltage: 6.0V
• Output Voltage Range: 1.2V ~ 5.0V (0.1V increments)
• Highly Accurate: Fixed voltage accuracy ± 2% (+30mV@VOUT<1.5V) (+1% @VOUT>2.0V)
• Low Power Consumption: 1.0μA (TYP.)
• Operating Temperature Range: -40°C ~ 85°C
• Low ESR Capacitor: Ceramic capacitor compatible
• Ultra Small Package: SOT-23 (250mW) SOT-89 (500mW) TO-92 (300mW) USP-6B (100mW)
