MSKSEMIDatasheet (PDF)

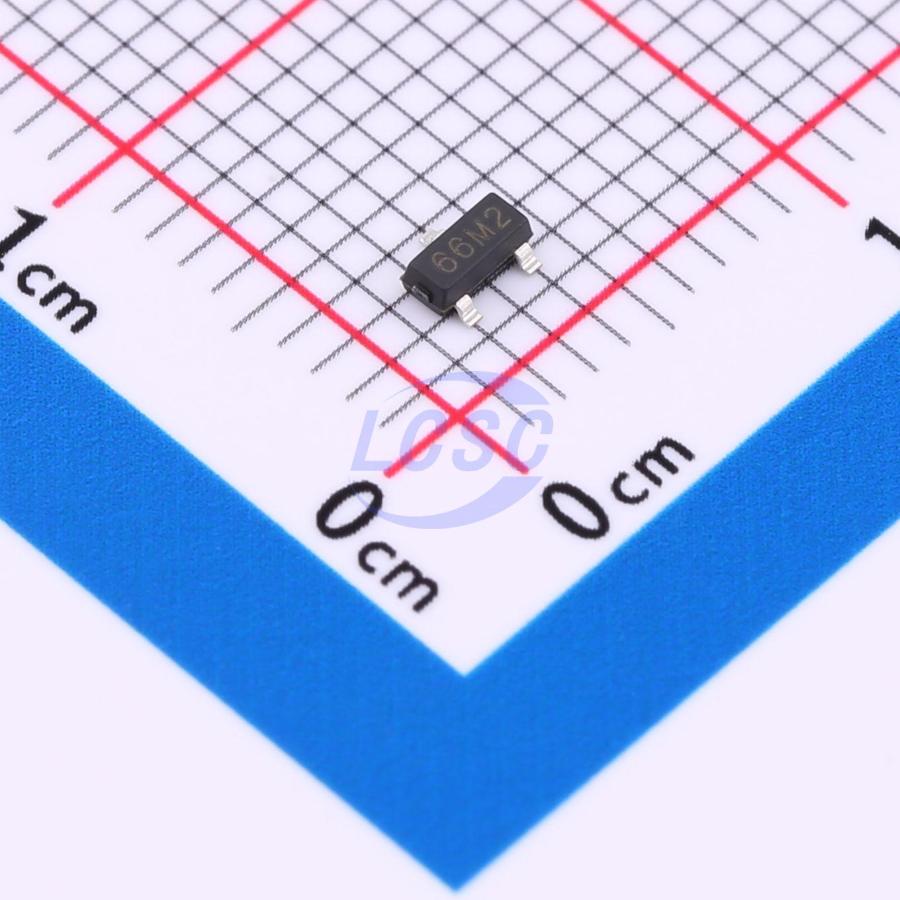

XC6206P502MR-MS
Linear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
SOT-23RoHSActive
CMOS step-down voltage regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- XC6206P502MR-MS
- Store part #
- C22462588
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,175 in stock
#C22462588
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.42 | ₹62.10 |
| 50+ | ₹9.83 | ₹491.50 |
| 150+ | ₹8.52 | ₹1,278.00 |
| 500+ | ₹7.54 | ₹3,770.00 |
| 3,000+ | ₹6.76 | ₹20,280.00 |
| 6,000+ | ₹6.38 | ₹38,280.00 |
5 × ₹12.42
₹62.10
excl. GST
₹73.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206P502MR-MS
₹62.10 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+80℃@(Ta)
- Supply Current (Iq)
- 7uA
- Output Configuration
- Positive
- Operating Voltage
- 8V
- Output Current
- 250mA
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
XC6206P502MR-MS is a CMOS step-down voltage regulator featuring high ripple rejection ratio, low power consumption, low dropout, and overcurrent/short-circuit protection. These devices feature very low quiescent current (8.0μA Typ.) and are capable of delivering 250mA output current with minimal input-to-output voltage differential while maintaining excellent regulation. Due to the minimal dropout voltage and low quiescent current, these devices are particularly suited for battery-powered applications where extended battery life is desired, such as computers, consumer products, and industrial equipment.
Applications
- Battery-powered systems
- Cordless telephone equipment
- Wireless control systems
- Portable/handheld computers
- Portable consumer devices
- Portable instruments
- Automotive electronics
- Voltage references
Key features
- High-precision output voltage: ±2.5%
- Output voltage: 1.5V~5.0V (step 0.1V)
- Ultra-low quiescent current (Typ. = 8.0μA)
- Low temperature coefficient
- Maximum input voltage up to 8V
- High load capability: Iout = 250mA at Vin = 4.3V and Vout = 3.3V
- Usable as regulator and voltage reference
- Good line regulation: Typ. 0.03%/V
