SiChangeDatasheet (PDF)
XC7467

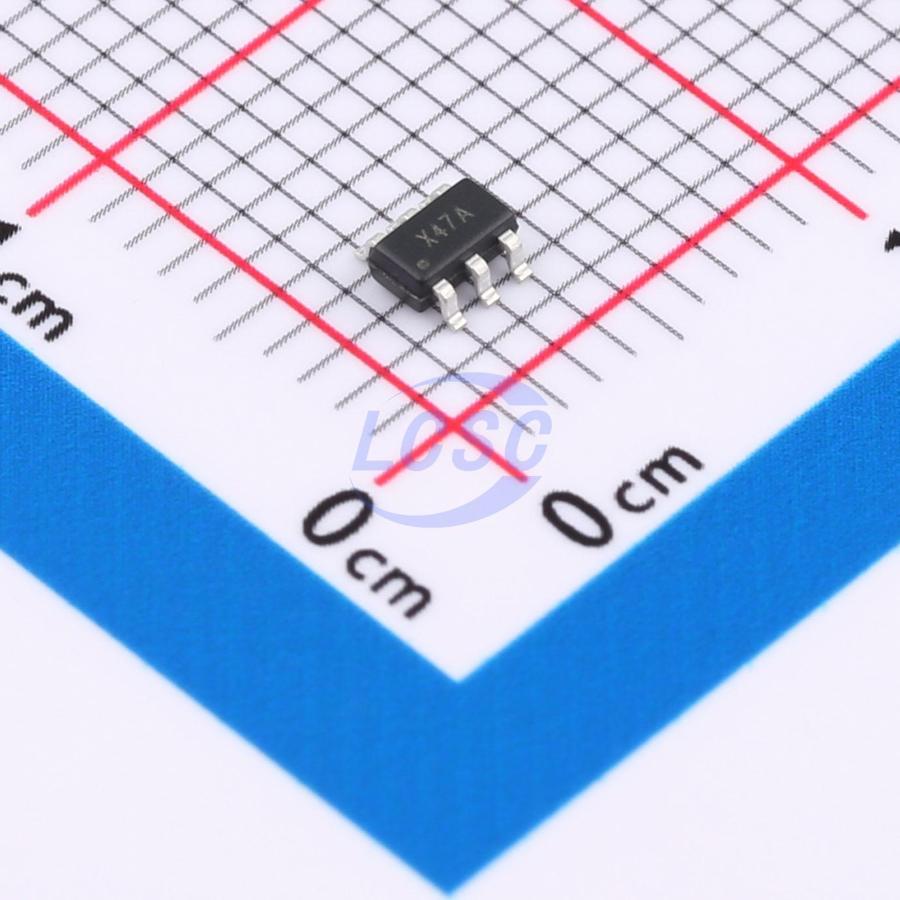

SPI 1.5V~4.5V SOT-23-6 Analog to Digital Converters (ADC)
SOT-23-6RoHSActive
1.2-MSPS/240-KSPS, 10-Bit Analog-to-Digital Converter with Serial Interface
- Manufacturer
- SiChange
- Manufacturer part #
- XC7467
- Store part #
- C23377943
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,001 in stock
#C23377943
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹187.34 | ₹187.34 |
| 10+ | ₹154.82 | ₹1,548.20 |
| 30+ | ₹137.04 | ₹4,111.20 |
| 100+ | ₹116.87 | ₹11,687.00 |
| 500+ | ₹107.98 | ₹53,990.00 |
| 1,000+ | ₹104.08 | ₹1,04,080.00 |
1 × ₹187.34
₹187.34
excl. GST
₹221.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC7467
₹187.34 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Voltage - Supply
- 1.5V~4.5V
- Number of Channels
- 1
- Integral non - linearity
- 0.5LSB
- Clock/Oscillator
- External
- Clock Frequency
- 3.4MHz;16.6MHz
- Features
- Power-on reset
- Resolution(Bits)
- 10;240kHz;1.2MHz
- S/N Ratio
- 61dB
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The XC7467 is a 10-bit ADC (Analog-to-Digital Converter) chip that features ultra-low power, small size, unipolar, and single-ended input. The product operates from a single 1.5 V - 4.5 V power supply. Adopting advanced technology and design, it has a wide voltage working range: when powered by a single 1.5V - 3V power supply, the sampling rate can reach up to 240-KSPS; when powered by a single 3V - 4.5V power supply, the sampling rate can reach up to 1.2-MSPS. The XC7467 is available in a 6-pin SOT-23 package and has an operating temperature range of -40℃ to 85℃. The XC7467 is second-source for the AD7467 and consumes only half dynamic power of their counterpart.
Applications
- Battery Powered Systems
- Isolated Data Acquisition
- Portable Data Acquisition Systems
- Medical Instruments
Key features
- Specified for VDD of 1.5V to 4.5V
- High throughput:
- 1.2 MSPS for 10-Bit VDD ≥ 3V
- 240 KSPS for 10-Bit VDD ≥ 1.5V
- Low power (XC7467 typical):
- 0.22mW (3.3V, 100KSPS)
- 0.10mW (2.5V, 100KSPS)
- 0.03mW (1.6V, 100KSPS)
- Automatic power-down
- ±0.5LSB INL, ±0.5LSB DNL
- No pipeline delays
- SPI/DSP/MICROWIRE/DSPI Compatible serial interface
- Second-Source for AD7467
- 6-Pin SOT-23 Package
