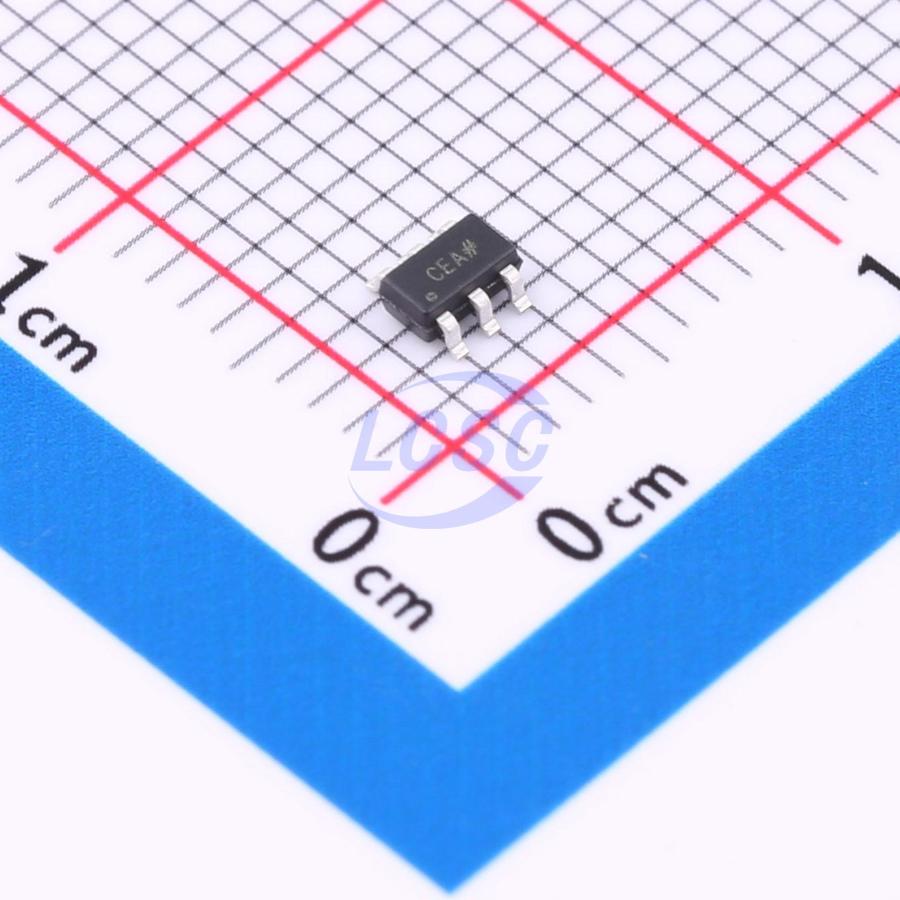

SiChange

XC7476

12 Bit Analog to Digital Converter 1 Input SAR SOT-23-6

SOT-23-6RoHSActive

800-ksps, 4 V - 5.25 V, ultra-low power consumption, 12-bit SAR analog-to-digital converter

Manufacturer: SiChange
Manufacturer part #: XC7476
Store part #: C23377945
Package / case: SOT-23-6
Category: Analog to Digital Converters (ADC)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

991 in stock

#C23377945

Stock & price checked 21 h ago

Quantity	Unit price	Pack price
1+	₹138.54	₹138.54
10+	₹111.66	₹1,116.60
30+	₹98.01	₹2,940.30
100+	₹84.78	₹8,478.00
500+	₹76.76	₹38,380.00
1,000+	₹72.65	₹72,650.00

Quantity (min 1)

1 × ₹138.54

₹138.54

excl. GST

₹163.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

XC7476

₹138.54 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃
Interface: SPI
Voltage - Supply: 4V~5.25V
Number of Channels: 1
Integral non - linearity: 1.25LSB
Clock/Oscillator: External
Clock Frequency: 16MHz
Resolution(Bits): 12;800kHz
S/N Ratio: 72dB
DNL (LSB): 1LSB
ADC architecture: SAR
Programmable Gain: Not supported

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.045 g

Overview

The XC7476 is a 12- bit, high speed, low power, and small- sized Successive- Approximation- Register (SAR) ADC. This device can operate from a single 4 V to 5.25 V supply with an 800- KSPS throughput. The XC7476 is available in a 6- pin SOT- 23 package and has an operating temperature range of - 40℃ to 85℃. The XC7476 is a drop- in replacement for the AD7476 and consumes only half dynamic power of their counterpart.

Applications

Battery Powered Systems
Personal digital assistants
Medical instruments
Mobile communications
Instrumentation and Control Systems
Data Acquisition Systems
High Speed Modems
Optical Sensors

Key features

Single 4V to 5.25V Supply Operation for XC7476
Fast Throughput Rate: 800 KSPS for XC7476
± 1.25 LSB INL, ± 1.5 LSB DNL
No Pipeline Delays
SPI/DSP/MICROWIRE Compatible Serial Interface
Variable Power Management
Low Power (XC7476 typical): 3.60mW (4V, 800KSPS), 6.15mW (5V, 800KSPS)
Second- Source for AD7476
6- Pin SOT- 23 Package
