SiChangeDatasheet (PDF)

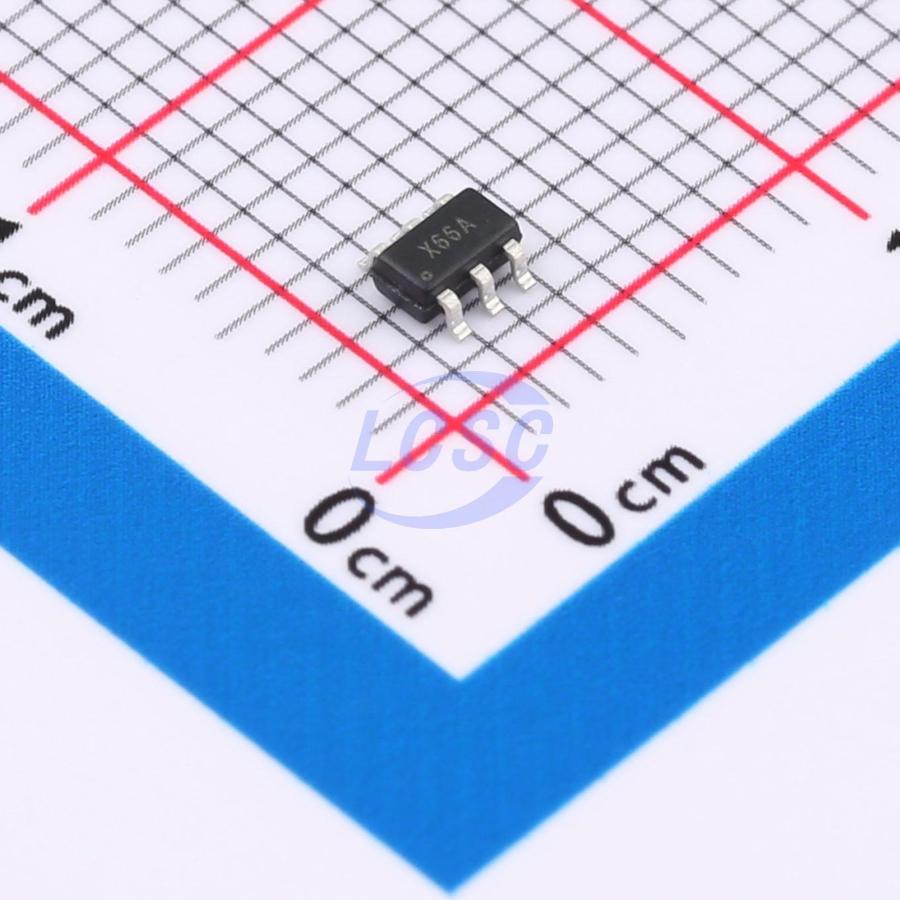

XC7866
12 Bit Analog to Digital Converter 1 Input SOT-23-6
SOT-23-6RoHSActive
1-MSPS/200-KSPS, ULTRALOW POWER, 12-BIT, MINIATURE ANALOG-TO-DIGITAL CONVERTER WITH SERIAL INTERFACE
- Manufacturer
- SiChange
- Manufacturer part #
- XC7866
- Store part #
- C23377948
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,746 in stock
#C23377948
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.77 | ₹102.77 |
| 10+ | ₹91.47 | ₹914.70 |
| 30+ | ₹85.82 | ₹2,574.60 |
| 100+ | ₹80.39 | ₹8,039.00 |
| 500+ | ₹76.92 | ₹38,460.00 |
| 1,000+ | ₹75.17 | ₹75,170.00 |
1 × ₹102.77
₹102.77
excl. GST
₹121.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC7866
₹102.77 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Voltage - Supply
- 1.5V~4.5V
- Number of Channels
- 1
- Integral non - linearity
- 1.5LSB
- Voltage Reference
- External
- Clock/Oscillator
- External
- Clock Frequency
- 3.4MHz;16.6MHz
- Resolution(Bits)
- 12;200kHz;1MHz
- S/N Ratio
- 71.25dB
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
The XC7866 is a 12-bit ADC (Analog-to-Digital Converter) chip that features ultra-low power, small size, unipolar, and single-ended input. The product operates from a single 1.5V - 4.5V power supply. Adopting advanced technology and design, it has a wide voltage working range: when powered by a single 1.5V - 3V power supply, the sampling rate can reach up to 200-KSPS; When powered by a single 3V - 4.5V power supply, the sampling rate can reach up to 1-MSPS. The XC7866 is available in a 6-pin SOT-23 package and has an operating temperature range of -40℃ to 85℃. The XC7866 is second-source for the ADS7866 and consumes only one third dynamic power of their counterpart.
Applications
- Battery-powered systems
- Medical instruments
- Remote data acquisition
- Isolated data acquisition
- Automatic test equipment
Key features
- Low power (XC7866 typical): 0.62mW (3.3V, 200KSPS), 0.13mW (1.8V, 200KSPS)
- Specified for VDD of 1.5V to 4.5V
- High throughput:
- 1 MSPS for 12-Bit VDD ≥ 3V
- 200 KSPS for 12-Bit VDD ≥ 1.5V
- Automatic power-down
- ±1.5 LSB INL, ±1.5 LSB DNL
- No pipeline delays
- SPI Compatible serial interface
- Second-Source for ADS7866
- 6-Pin SOT-23 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC7466#C23377942SiChange · SOT-23-6 | SiChange | SOT-23-6 | 966 | ₹294.78 · 966 in stock | View |
 | XC7886E#C41383377SiChange · SOT-23-6 | SiChange | SOT-23-6 | 881 | ₹212.49 · 881 in stock | View |
 | XCS7476E#C41383380SiChange · SOT-23-6 | SiChange | SOT-23-6 | 4,359 | ₹158.63 · 4,359 in stock | View |
 | XC7476E#C41383374SiChange · SOT-23-6 | SiChange | SOT-23-6 | 782 | ₹140.94 · 782 in stock | View |
 | XC11665A#C41383388SiChange · SOT-23-6 | SiChange | SOT-23-6 | 897 | ₹416.30 · 897 in stock | View |
