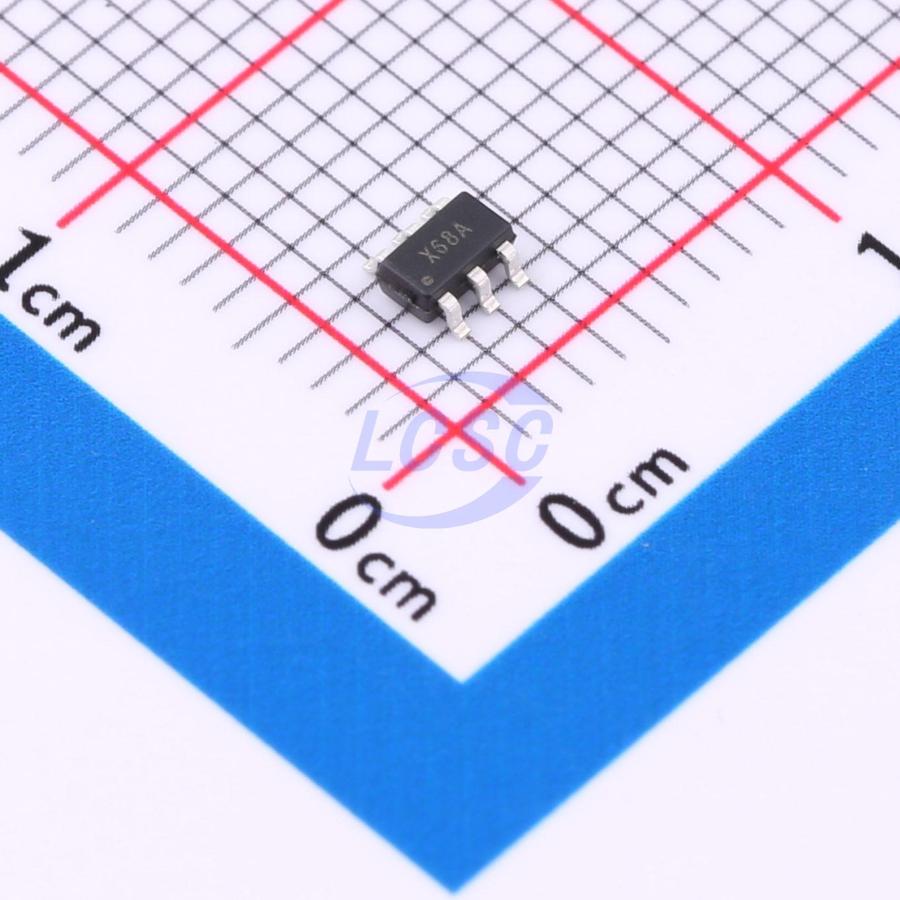

XC7868
8 Bit Analog to Digital Converter 1 Input SOT-23-6
SOT-23-6RoHSActive
1.4-MSPS/280-ksps ultra-low-power 8-bit analog-to-digital converter with serial interface
- Manufacturer
- SiChange
- Manufacturer part #
- XC7868
- Store part #
- C23377950
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,471 in stock
#C23377950
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.01 | ₹91.01 |
| 10+ | ₹81.91 | ₹819.10 |
| 30+ | ₹77.14 | ₹2,314.20 |
| 100+ | ₹72.59 | ₹7,259.00 |
| 500+ | ₹69.99 | ₹34,995.00 |
| 1,000+ | ₹68.48 | ₹68,480.00 |
1 × ₹91.01
₹91.01
excl. GST
₹107.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC7868
₹91.01 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Voltage - Supply
- 1.5V~4.5V
- Number of Channels
- 1
- Integral non - linearity
- 0.5LSB
- Voltage Reference
- External
- Clock/Oscillator
- External
- Clock Frequency
- 3.4MHz;16.6MHz
- Resolution(Bits)
- 8;280kHz;1.4MHz
- S/N Ratio
- 49.5dB
- DNL (LSB)
- 0.5LSB
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.046 g
Overview
The XC7868 is an 8- bit ADC (Analog- to- Digital Converter) chip that features ultra- low power, small size, unipolar, and single- ended input. The product operates from a single 1.5V - 4.5V power supply. Adopting advanced technology and design, it has a wide voltage working range: when powered by a single 1.5V - 3V power supply, the sampling rate can reach up to 280 KSPS; When powered by a single 3V - 4.5V power supply, the sampling rate can reach up to 1.4- MSPS. The XC7868 is available in a 6- pin SOT- 23 package and has an operating temperature range of - 40℃ to 85℃. The XC7868 is second- source for the ADS7868 and consumes only one third dynamic power of their counterpart.
Applications
- Battery- powered systems
- Medical instruments
- Remote data acquisition
- Isolated data acquisition
- Automatic test equipment
Key features
- Low power (XC7868 typical): 0.48mW (3.3V, 280KSPS) 0.16mW (1.8V, 280KSPS)
- Specified for VDD of 1.5V to 4.5V
- High throughput:
- 1.4 MSPS for 8- Bit VDD ≥ 3V
- 280 KSPS for 8- Bit VDD ≥ 1.5V
- Automatic power- down
- ±0.5 LSB INL, ±0.5 LSB DNL
- No pipeline delays
- SPI Compatible serial interface
- Second- Source for ADS7868
- 6- Pin SOT- 23 Package
