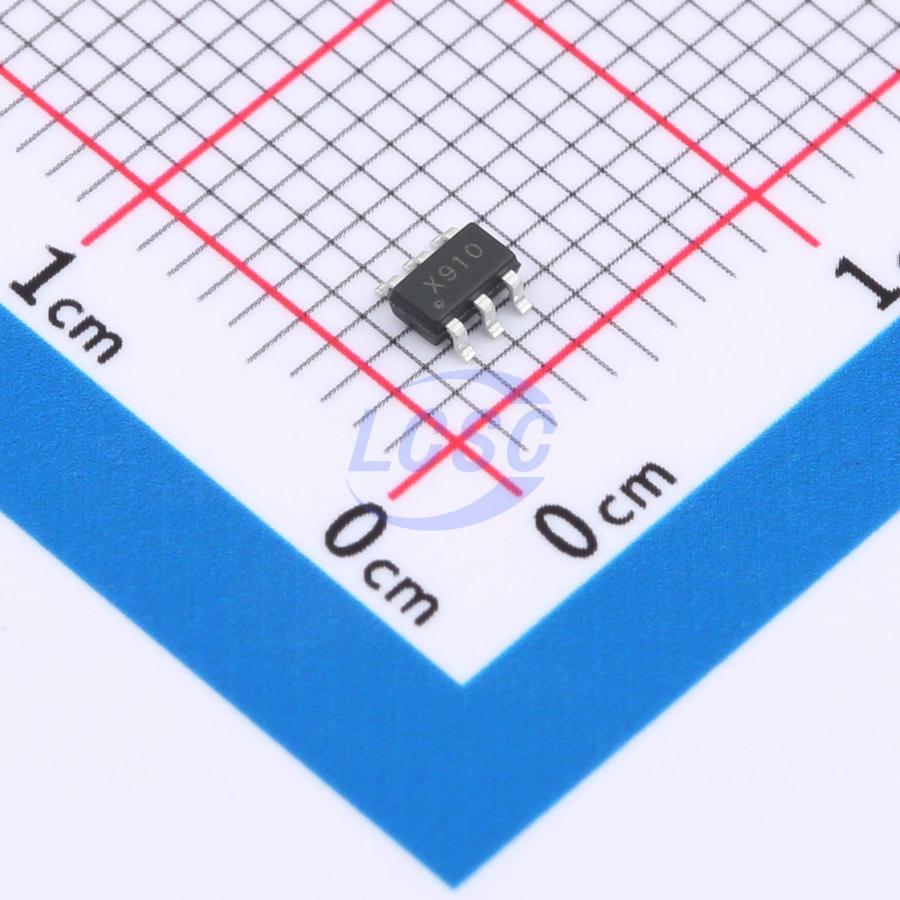

XC7910
10 Bit Analog to Digital Converter 1 Input SAR SOT-23-6
SOT-23-6RoHSActive
250 ksps, 3.3 V - 5.25 V, ultra-low power consumption, 10-bit SAR analog-to-digital converter
- Manufacturer
- SiChange
- Manufacturer part #
- XC7910
- Store part #
- C23377964
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C23377964
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹324.80 | ₹324.80 |
| 10+ | ₹274.75 | ₹2,747.50 |
| 30+ | ₹243.55 | ₹7,306.50 |
| 100+ | ₹211.48 | ₹21,148.00 |
| 500+ | ₹197.18 | ₹98,590.00 |
| 1,000+ | ₹190.90 | ₹1,90,900.00 |
1 × ₹324.80
₹324.80
excl. GST
₹383.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC7910
₹324.80 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Quiescent Current (Iq)
- 340uA
- Voltage - Supply
- 3.3V~5.25V
- Number of Channels
- 1
- Integral non - linearity
- 0.5LSB
- Clock/Oscillator
- External
- Clock Frequency
- 5MHz
- Resolution(Bits)
- 10;250kHz
- S/N Ratio
- 61.5dB
- DNL (LSB)
- 0.5LSB
- ADC architecture
- SAR
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The XC7910 is a 10- bit, high speed, low power, and small- sized Successive- Approximation- Register (SAR) ADC. The part operates from a single 3.3 V to 5.25 V power supply and features throughput rates up to 250 KSPS. The XC7910 is available in a 6- pin SOT- 23 package and has an operating temperature range of - 40℃ to 85℃ The XC7910 is a drop- in replacement for the AD7910 and consumes only one third dynamic power of their counterpart.
Applications
- Battery Powered Systems
- Personal digital assistants
- Medical instruments
- Mobile communications
- Instrumentation and Control Systems
- Data Acquisition Systems
- High Speed Modems
- Optical Sensors
Key features
- Specified for VDD of 3.3 V to 5.25 V
- Fast Throughput Rate: 250 KSPS
- ±0.5 LSB INL, ±0.5 LSB DNL
- 10 bit resolution
- No Pipeline Delays
- SPI/DSP/MICROWIRE/QSPI Compatible Serial Interface
- Variable Power Management
- Low Power (typical)
- 0.90 mW (3.3 V, 250 KSPS)
- 2.50 mW (5.0 V, 250 KSPS)
- Second- Source for AD7910
- 6- Pin SOT- 23 Package (Stock)
- 6- Pin SC- 70 and 8- Pin MSOP Packages (Planned)
