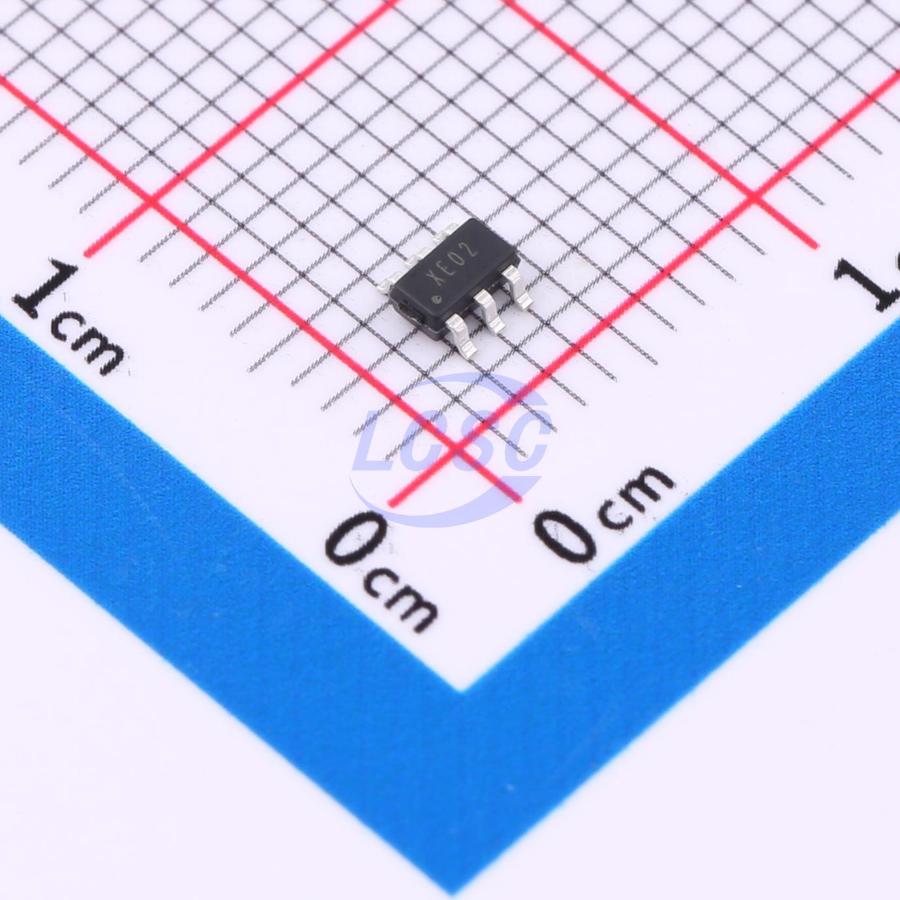

XCS7477E
SPI 3.3V~4.8V SOT-23-6 Analog to Digital Converters (ADC)
SOT-23-6RoHSActive
1-MSPS, 3.3V - 4.8V, ULTRALOWPOWER, 10-BIT SAR ANALOG-TO-DIGITAL CONVERTER
- Manufacturer
- SiChange
- Manufacturer part #
- XCS7477E
- Store part #
- C41361490
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C41361490
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.30 | ₹135.30 |
| 10+ | ₹111.89 | ₹1,118.90 |
| 30+ | ₹99.09 | ₹2,972.70 |
| 100+ | ₹84.57 | ₹8,457.00 |
| 500+ | ₹78.06 | ₹39,030.00 |
| 1,000+ | ₹75.24 | ₹75,240.00 |
1 × ₹135.30
₹135.30
excl. GST
₹159.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XCS7477E
₹135.30 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI
- Voltage - Supply
- 3.3V~4.8V
- Number of Channels
- 1
- Integral non - linearity
- 1LSB
- Clock/Oscillator
- External
- Clock Frequency
- 20MHz
- Resolution(Bits)
- 1MHz;10
- S/N Ratio
- 61dB
- DNL (LSB)
- 1LSB
- ADC architecture
- SAR
- Programmable Gain
- Not supported
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The XCS7477E is a 10- bit, high speed, low power, and small- sized Successive- Approximation- Register (SAR) ADC. This device can operate from a single 3.3 V to 4.8 V supply with a 1- MSPS throughput. The XCS7477E is available in a 6- pin SOT- 23 package and has an operating temperature range of - 40℃ to 85℃. The XCS7477E is a drop- in replacement for the ADCS7477.
Applications
- Battery Powered Systems
- Portable Systems
- Medical Instruments
- Mobile Communications
- Factory Automation and ATM Equipment
- Instrumentation and Control Systems
Key features
- Single 3.3 V to 4.8 V Supply Operation for XCS7477E
- Fast Throughput Rate: 1 MSPS for XCS7477E
- ± 1 LSB INL, ± 1 LSB ONL
- No Pipeline Delays
- SPI/DSP/MICROWIRE/QSPI Compatible Serial Interface
- Variable Power Management
- Low Power (XCS7477E Typical): 2.30mW (3.3V, 1 MSPS); 9.80mW (4.5V, 1 MSPS)
- Second- Source for ADCS7477
- 6- Pin SOT- 23 Package
