XINLUDADatasheet (PDF)

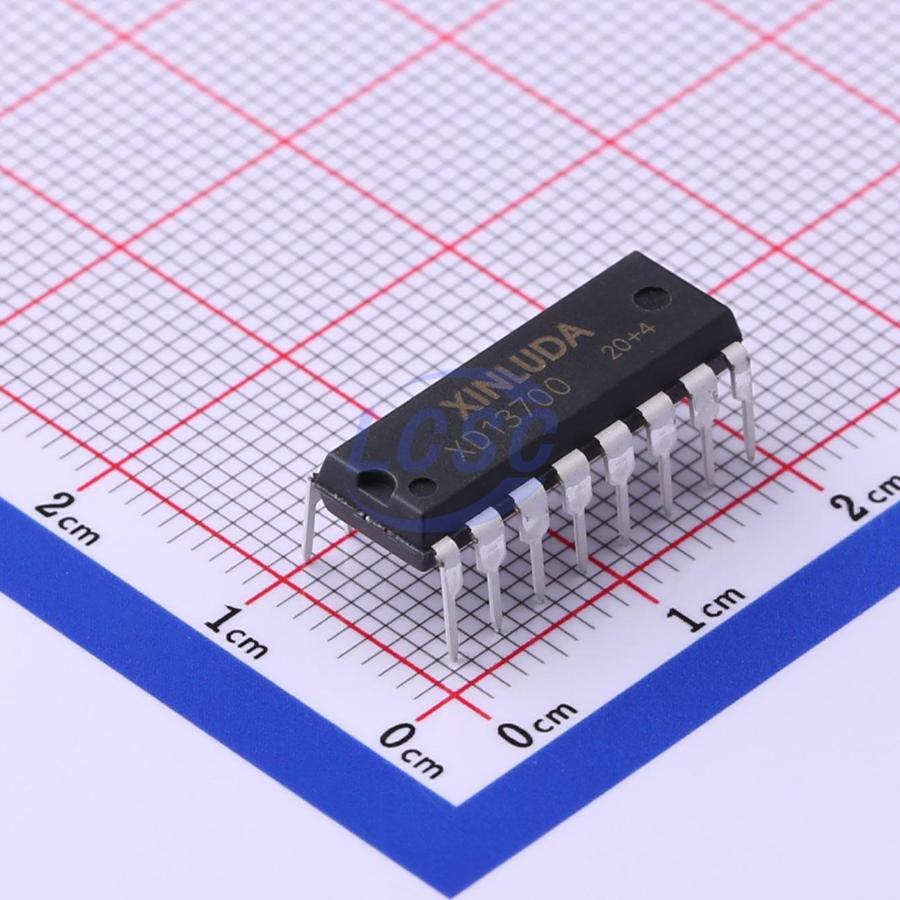

XD13700
20mA 2 4mV 50V/us 110dB 8uA 2MHz 2.6mA DIP-16 Instrumentation, Op Amps, Buffer Amps
DIP-16RoHSActive
Dual Operational Transconductance Amplifiers With Linearizing Diodes and Buffers
- Manufacturer
- XINLUDA
- Manufacturer part #
- XD13700
- Store part #
- C521165
- Package / case
- DIP-16
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,290 in stock
#C521165
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.08 | ₹230.40 |
| 50+ | ₹35.22 | ₹1,761.00 |
| 150+ | ₹31.04 | ₹4,656.00 |
| 500+ | ₹25.81 | ₹12,905.00 |
| 2,000+ | ₹23.50 | ₹47,000.00 |
| 5,000+ | ₹22.09 | ₹1,10,450.00 |
5 × ₹46.08
₹230.40
excl. GST
₹271.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 25 per tube
XD13700
₹230.40 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 4mV
- Slew Rate
- 50V/us
- Input Offset Current(Ios)
- 600nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 8uA
- Gain Bandwidth Product
- 2MHz
- Quiescent Current
- 2.6mA
- Dual Supply
- 4.75V~16V;-16V~-4.75V
- Single Supply
- 9.5V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.712 g
Overview
The XD/XL13700 series consists of two current-controlled transconductance amplifiers, each with differential inputs and a push-pull output. The two amplifiers share common supplies but otherwise operate independently. Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels. The result is a 10-dB signal-to-noise improvement referenced to 0.5 percent THD. High impedance buffers are provided which are especially designed to complement the dynamic range of the amplifiers. The output buffers of the XD/XL13700 differ from those of the XD/XL13600 in that their input bias currents(and thus their output DC levels) are independent of IABC. This may result in performance superior to that of the XD/XL13600 in audio applications.
Applications
- Current-Controlled Amplifiers
- Stereo Audio Amplifiers
- Current-Controlled Impedances
- Current-Controlled Filters
- Current-Controlled Oscillators
- Multiplexers
- Timers
- Sample-and-Hold Circuits
Key features
- gm Adjustable Over 6 Decades
- Excellent gm Linearity
- Excellent Matching Between Amplifiers
- Linearizing Diodes for reduced output distortion
- High Impedance Buffers
- High Output Signal-to-Noise Ratio
