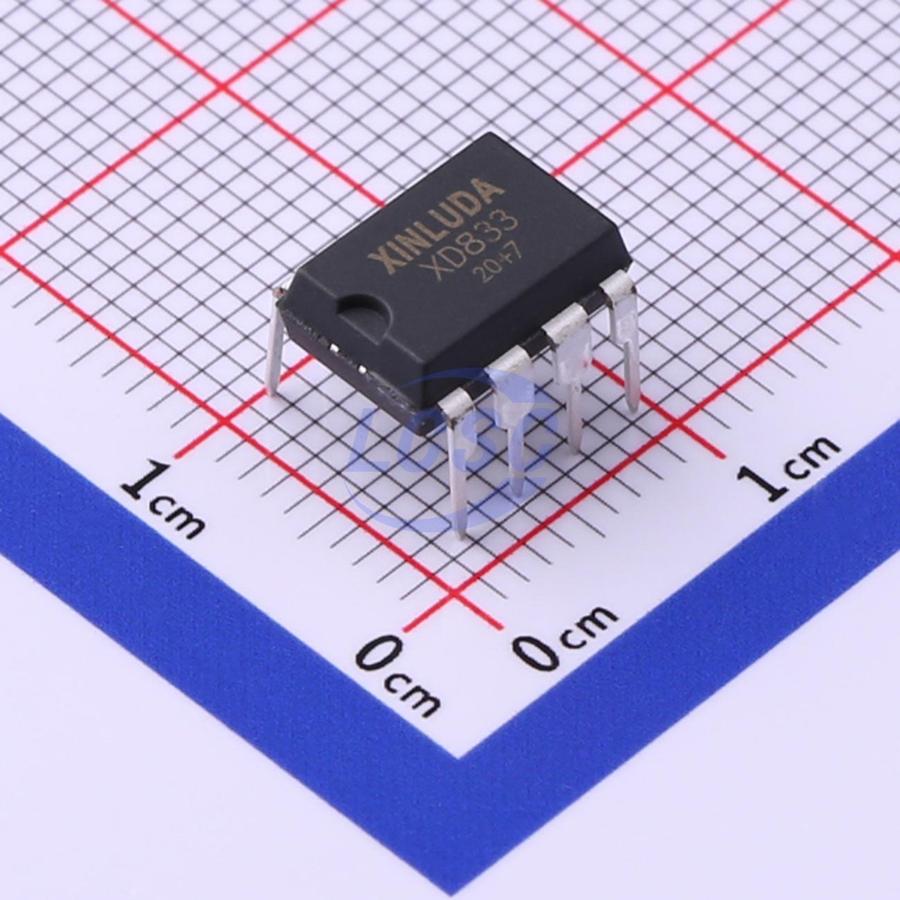

XD833

The xD/xL833 is a dual operational amplifier with high- performance specifications for use in quality audio and data- signal applications. This device operates over a wide range of single- and dual- supply voltage with low noise, high- gain bandwidth, and high slew rate. Additional features include low total harmonic distortion, excellent phase and gain margins, large output voltage swing with no deadband crossover distortions, and symmetrical sink/source performance. The dual amplifiers are utilized widely in circuit of audio optimized for all preamp and high level stages in PCM and HiFi systems. XD/XL833 is pin- for- pin compatible with industry- standard dual operation amplifiers' pin assignments. With addition of a preamplifier, the gain of the power stage can be greatly reduced to improve performance.

Applications

• HiFi Audio System Equipment
• Preamplification and Filtering
• Set Top Box
• Microphone PreAmplifier Circuit
• General- Purpose Amplifier Applications

Key features

• Dual- Supply Operation: ±5V to ±18V
• Low Noise Voltage: 4.5 nV/√Hz
• Low Input Offset Voltage: 0.15 mV
• Low Total Harmonic Distortion: 0.002%
• High Slew Rate: 7V/μs
• High- Gain Bandwidth Product: 16 MHz
• High Open- Loop AC Gain: 800 at 20 kHz
• Large Output- Voltage Swing: 14.1 V to - 14.6V
• Excellent Gain and Phase Margins
