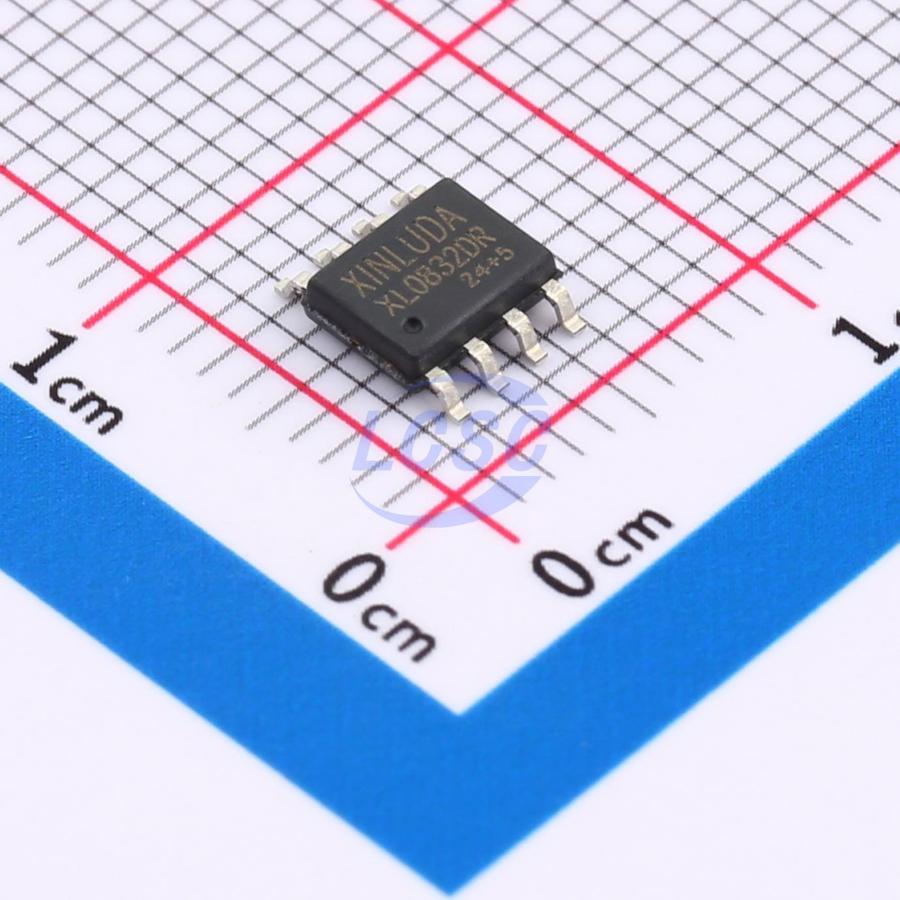

XL0832DR

The XL/XD0832 is an 8- bit A/D converter, connected with single- chip microcomputer through three - wire interface, low power consumption, suitable for use in a variety of intelligent instruments. The XL/XD0832's maximum resolution can reach 256 levels, which can adapt to the general analog conversion requirements. The chip has double data output, which can be used as data verification, reducing a few data errors, fast conversion speed and strong stable performance. Independent chip enables input, making multi- device connection and processor control more convenient, DI data input side, can easily achieve the choice of channel functions.

Applications

• Handheld device
• Portable monitors and power management
• Industrial signal monitoring
• Measurement and control instrument

Key features

• 8-bit resolution A/D converter
• 5V single power supply
• Dual-channel A/D conversion
• Support single-ended or differential mode
• Total non-adjustable error ±2 LSB MAX
• The operating frequency is 250KHz and the conversion time is 32uS
• I/O levels are TTL/CMOS compatible
• Power consumption as low as 15mW
• Package option: XL0832DR (SOP8), XD0832CC(DIP8)
