XINLUDADatasheet (PDF)

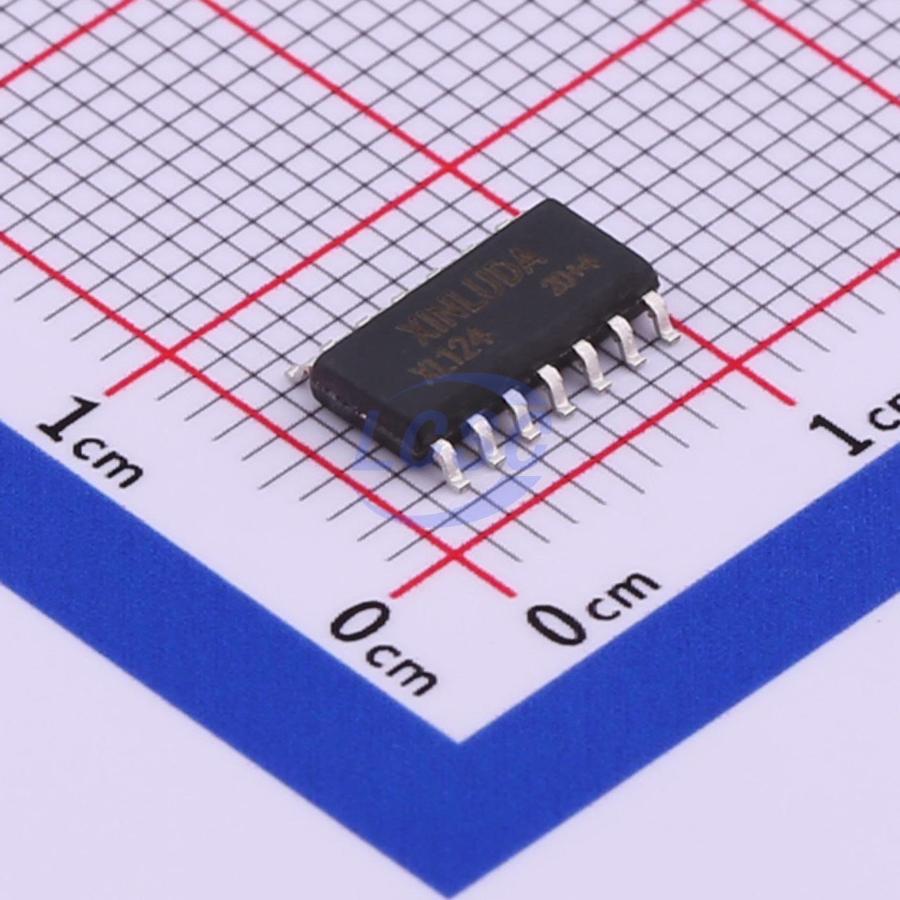

XL124
40mA 4 5mV 500V/ms 80dB 20nA 700uA 1.3MHz SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
Low-power quad operational amplifiers
- Manufacturer
- XINLUDA
- Manufacturer part #
- XL124
- Store part #
- C521149
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,990 in stock
#C521149
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.83 | ₹64.15 |
| 50+ | ₹10.23 | ₹511.50 |
| 150+ | ₹8.92 | ₹1,338.00 |
| 500+ | ₹7.94 | ₹3,970.00 |
| 2,500+ | ₹6.79 | ₹16,975.00 |
| 5,000+ | ₹6.39 | ₹31,950.00 |
5 × ₹12.83
₹64.15
excl. GST
₹75.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL124
₹64.15 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -55℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 20nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 700uA
- Gain Bandwidth Product
- 1.3MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 35nV/√Hz@1kHz
- Dual Supply
- -1.5V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.296 g
Overview
These circuits consist of four independent, high gain operational amplifiers with frequency compensation implemented internally. They operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low- power supply current drain is independent of the magnitude of the power supply voltage.
Key features
- Wide gain bandwidth: 1.3 MHz
- Input common mode voltage range includes ground
- Large voltage gain: 100 dB
- Very low supply current/amplifier: 375 μA
- Low input bias current: 20 nA
- Low input voltage: 3 mV max
- Low input offset current: 2 nA
- Wide power supply range:
- Single supply: 3 V to 30 V
- Dual supplies: ±1.5 V to ±15 V
