XINLUDADatasheet (PDF)

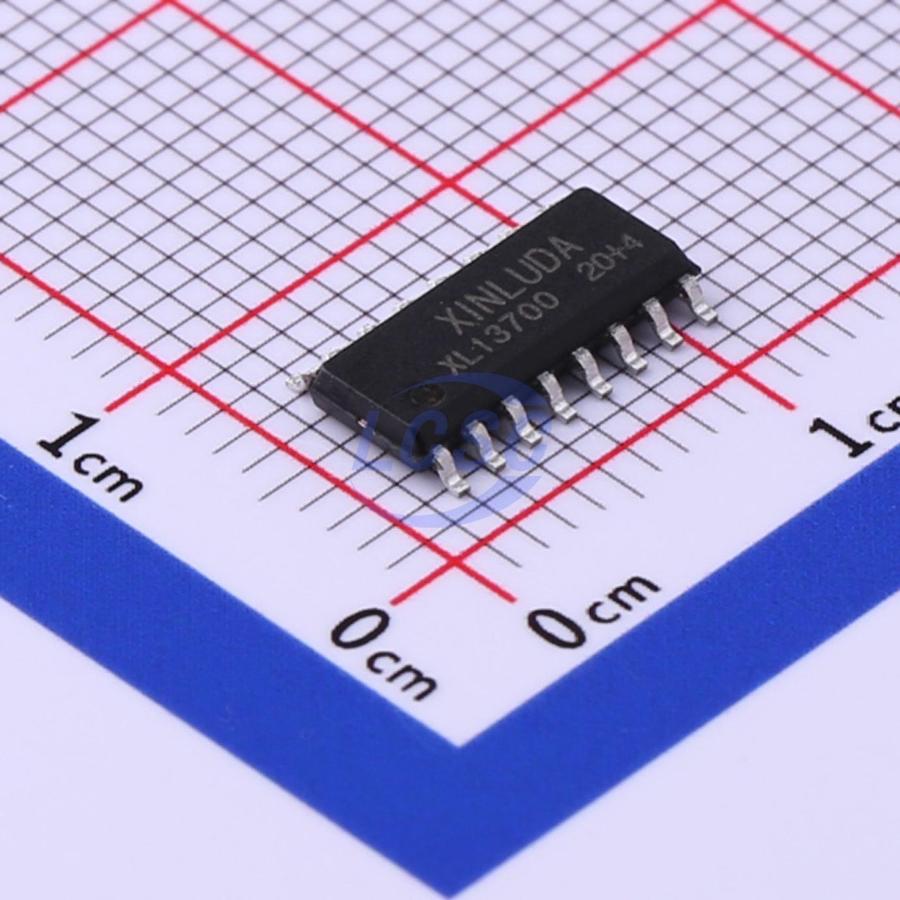

XL13700
2 4mV 50V/us 110dB 8uA 2MHz 2.6mA SOP-16 Instrumentation, Op Amps, Buffer Amps
SOP-16RoHSActive
Dual Operational Transconductance Amplifiers With Linearizing Diodes and Buffers
- Manufacturer
- XINLUDA
- Manufacturer part #
- XL13700
- Store part #
- C521166
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,575 in stock
#C521166
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.96 | ₹204.80 |
| 50+ | ₹31.90 | ₹1,595.00 |
| 150+ | ₹28.02 | ₹4,203.00 |
| 500+ | ₹21.10 | ₹10,550.00 |
| 2,500+ | ₹18.95 | ₹47,375.00 |
| 5,000+ | ₹17.65 | ₹88,250.00 |
5 × ₹40.96
₹204.80
excl. GST
₹241.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL13700
₹204.80 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 4mV
- Slew Rate
- 50V/us
- Input Offset Current(Ios)
- 600nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 8uA
- Gain Bandwidth Product
- 2MHz
- Quiescent Current
- 2.6mA
- Dual Supply
- -16V~16V
- Single Supply
- 9.5V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.32 g
Overview
The XD/XL13700 series consists of two current-controlled transconductance amplifiers, each with differential inputs and a push-pull output. The two amplifiers share common supplies but otherwise operate independently. Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels. The result is a 10-dB signal-to-noise improvement referenced to 0.5 percent THD. High impedance buffers are provided which are especially designed to complement the dynamic range of the amplifiers. The output buffers of the XD/XL13700 differ from those of the XD/XL13600 in that their input bias currents(and thus their output DC levels) are independent of IABC. This may result in performance superior to that of the XD/XL13600 in audio applications.
Applications
- Current-Controlled Amplifiers
- Stereo Audio Amplifiers
- Current-Controlled Impedances
- Current-Controlled Filters
- Current-Controlled Oscillators
- Multiplexers
- Timers
- Sample-and-Hold Circuits
Key features
- gm Adjustable Over 6 Decades
- Excellent gm Linearity
- Excellent Matching Between Amplifiers
- Linearizing Diodes for reduced output distortion
- High Impedance Buffers
- High Output Signal-to-Noise Ratio
