XINLUDADatasheet (PDF)

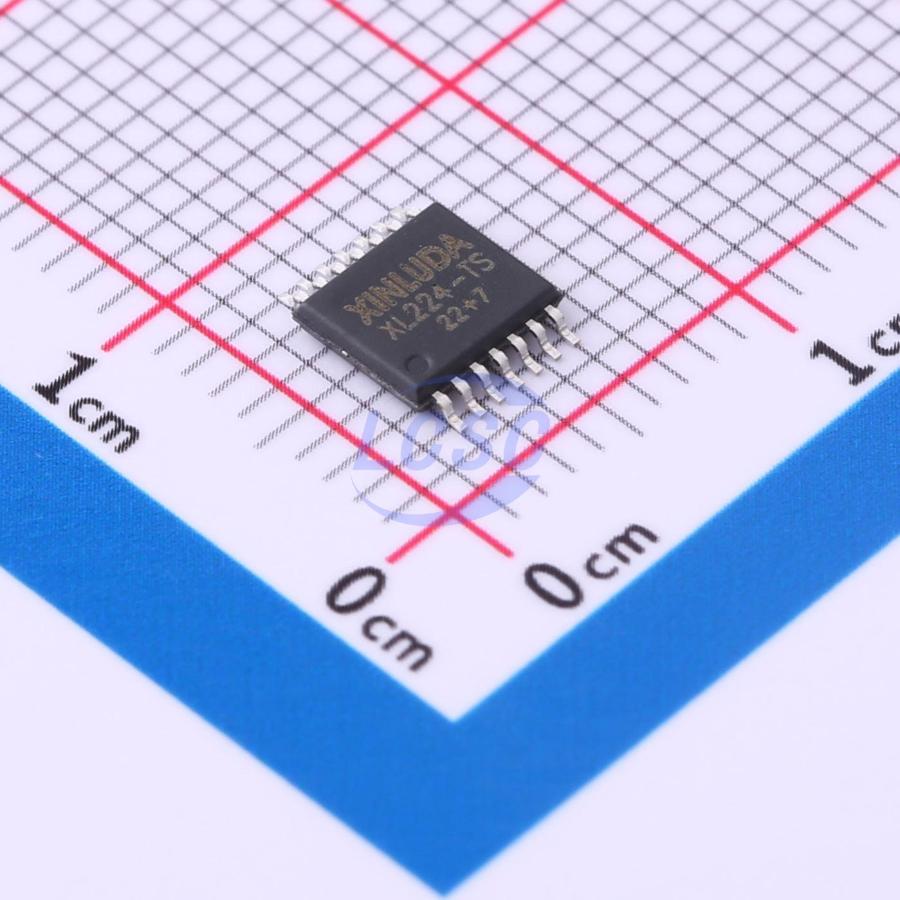

XL224-TS
40mA 4 7mV 500V/ms 70dB 250nA 3mA 1.2MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps
TSSOP-14RoHSActive
Quadruple Operational Amplifiers
- Manufacturer
- XINLUDA
- Manufacturer part #
- XL224-TS
- Store part #
- C5125481
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,290 in stock
#C5125481
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.19 | ₹85.95 |
| 50+ | ₹13.67 | ₹683.50 |
| 150+ | ₹11.92 | ₹1,788.00 |
| 500+ | ₹10.60 | ₹5,300.00 |
| 2,500+ | ₹9.04 | ₹22,600.00 |
| 5,000+ | ₹8.51 | ₹42,550.00 |
5 × ₹17.19
₹85.95
excl. GST
₹101.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XL224-TS
₹85.95 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 7mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- -25℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 250nA
- Input Offset Voltage Drift(Vos TC)
- 9uV/℃
- Quiescent Current
- 3mA
- Gain Bandwidth Product
- 1.2MHz
- Features
- Built-in compensation;ESD protection
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -16V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The XL324 series are low−cost, quad operational amplifiers with true differential inputs. They have several distinct advantages over standard operational amplifier types in single supply applications. The quad amplifier can operate at supply voltages as low as 3.0 V or as high as 32 V. The common mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.
Key features
- Short Circuited Protected Outputs
- True Differential Input Stage
- Single Supply Operation: 3.0 V to 32 V
- Four Amplifiers Per Package
- Internally Compensated
- Common Mode Range Extends to Negative Supply
- Industry Standard Pinouts
- ESD Clamps on the Inputs Increase Ruggedness without Affecting Device Operation
- These Devices are Pb−Free and RoHS Compliant
