XINLUDADatasheet (PDF)

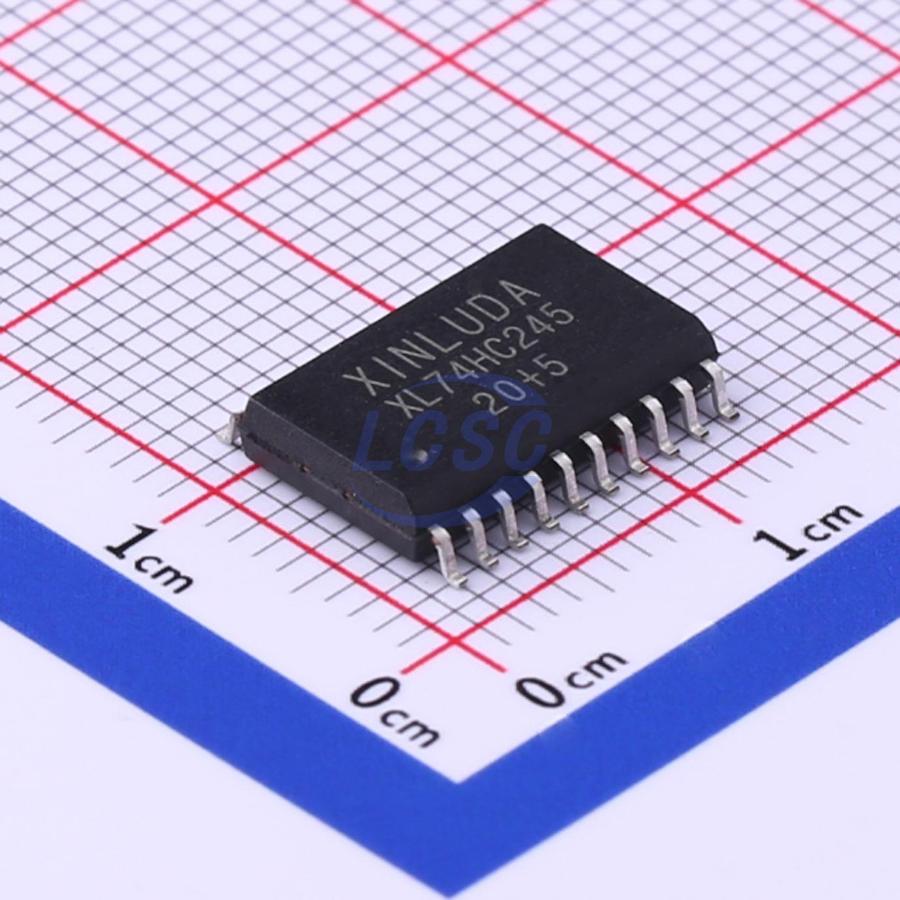

XL74HC245
2V~6V 8 1 9ns@4.5V,50pF SOP-20-300mil Buffers, Drivers, Receivers, Transceivers
SOP-20-300milRoHSActive
Octal 3-State Noninverting Bus Transceiver
- Manufacturer
- XINLUDA
- Manufacturer part #
- XL74HC245
- Store part #
- C561304
- Package / case
- SOP-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,325 in stock
#C561304
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.31 | ₹171.55 |
| 50+ | ₹27.28 | ₹1,364.00 |
| 150+ | ₹24.26 | ₹3,639.00 |
| 500+ | ₹20.51 | ₹10,255.00 |
| 2,000+ | ₹17.79 | ₹35,580.00 |
| 4,000+ | ₹16.79 | ₹67,160.00 |
5 × ₹34.31
₹171.55
excl. GST
₹202.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
XL74HC245
₹171.55 for 5 + GST
Specifications
- Function
- Output enable
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Operating Temperature
- -40℃~+85℃
- Number of Elements
- 1
- Quiescent Supply Current
- 8uA
- Propagation Delay
- 9ns@4.5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.931 g
Overview
The XL74HC245 and XD74HC245 are 8-bit transceiver with 3-state outputs. The device features an output enable (OE) and send/receive (DIR) for direction control. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Eight-channel signal bidirectional transceiver
- Forward tri-state output
- Meets JEDEC standard no.7A
- ESD protection HBM EIA/JESD22-A114-B exceeds 2000V, MM EIA/JESD22-A115-A Over 2000V
- The specified temperature is -40℃ ~+85℃
- Available package: SOP20(XL74HC245), DIP20(XD74HC245)
