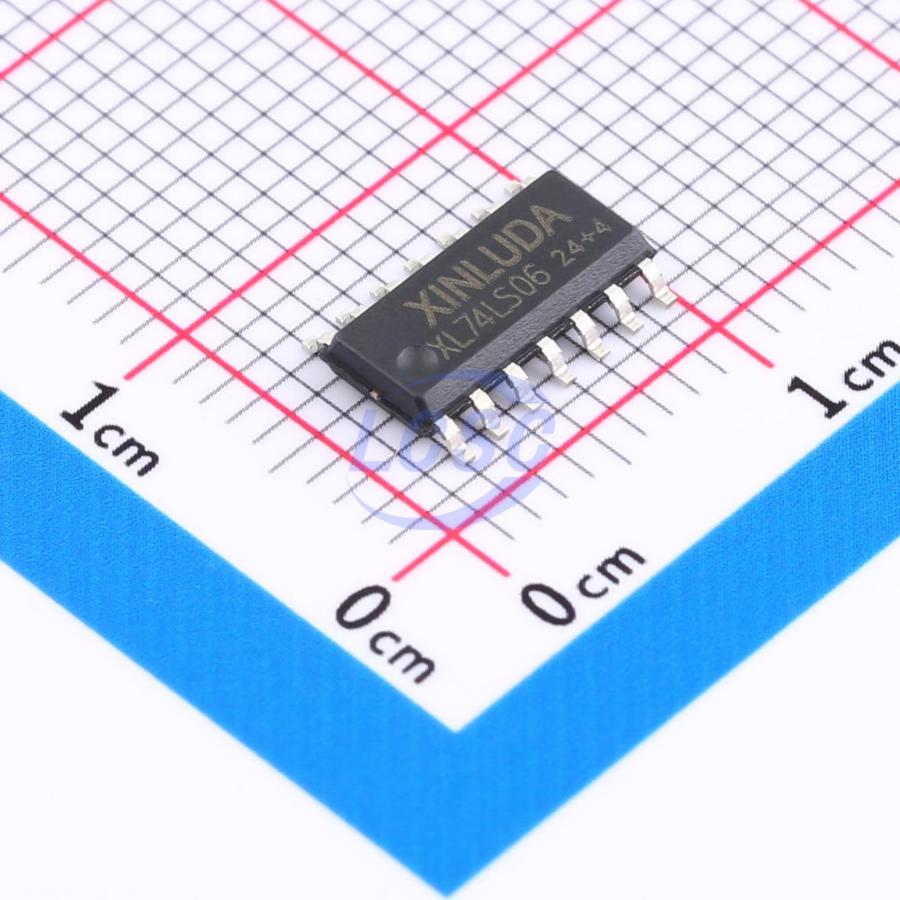

XINLUDA

XL74LS06

4.5V~5.5V 8 1 15ns@5V,15pF SOIC-14 Buffers, Drivers, Receivers, Transceivers

SOIC-14RoHSActive

Hex Inverter Buffers and Drivers With Open-Collector High-Voltage Outputs

Manufacturer: XINLUDA
Manufacturer part #: XL74LS06
Store part #: C513512
Package / case: SOIC-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,620 in stock

#C513512

Stock & price checked 31 h ago

Quantity	Unit price	Pack price
5+	₹23.10	₹115.50
50+	₹18.24	₹912.00
150+	₹16.15	₹2,422.50
500+	₹13.56	₹6,780.00
2,500+	₹11.92	₹29,800.00
5,000+	₹11.23	₹56,150.00

Quantity (min 5, multiples of 5)

5 × ₹23.10

₹115.50

excl. GST

₹136.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

XL74LS06

₹115.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Level shifting
Current - Output High(IOH): 250uA
Series: 74LS
Voltage - Supply: 4.5V~5.5V
Current - Output Low(IOL): 40mA
Output Type: Open-drain
Number of Bits per Element: 8
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+85℃
Propagation Delay: 15ns@5V,15pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.296 g

Overview

The XL/XD74LS06 devices feature high-voltage, open-collector outputs to interface with high-level circuits (such as MOS), or for driving high-current loads, and also are characterized for use as inverter buffers for driving TTL inputs. The XL/XD74LS06 devices have a rated output voltage of 30 V.
