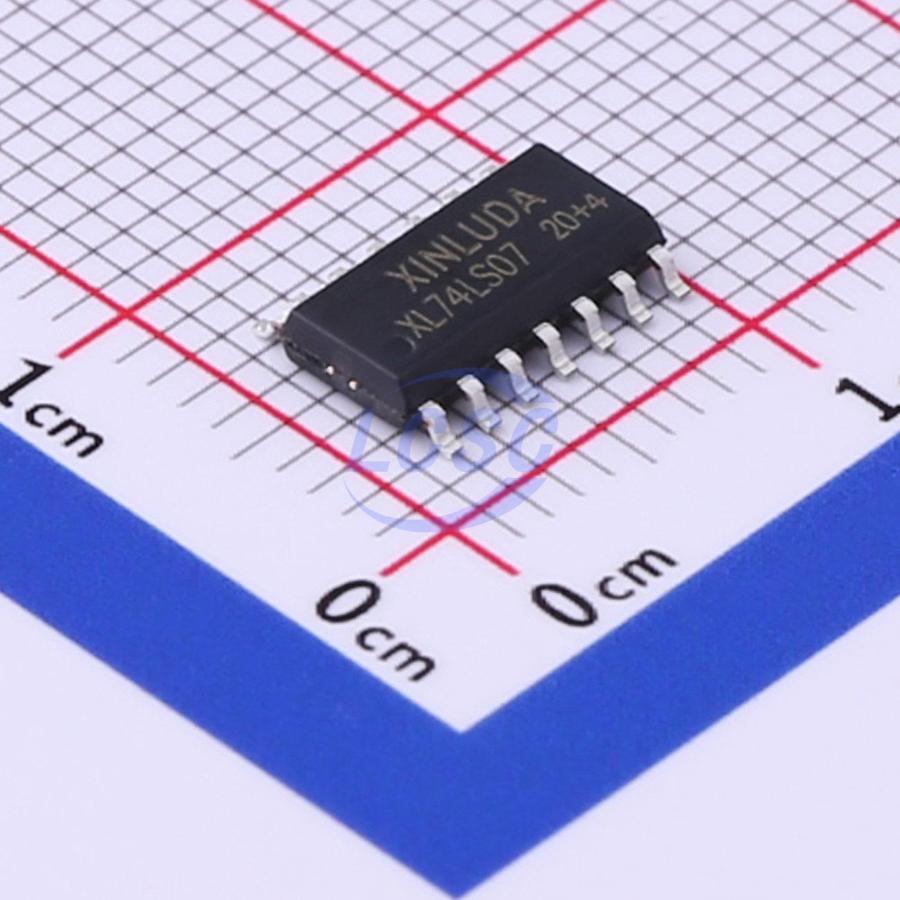

XINLUDA

XL74LS07

4.75V~5.25V 6 6 10ns@5V,15pF SOIC-14 Buffers, Drivers, Receivers, Transceivers

SOIC-14RoHSActive

Hex Buffers and Drivers With Open-Collector High-Voltage Outputs

Manufacturer: XINLUDA
Manufacturer part #: XL74LS07
Store part #: C513513
Package / case: SOIC-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,565 in stock

#C513513

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹25.52	₹127.60
50+	₹20.29	₹1,014.50
150+	₹18.06	₹2,709.00
500+	₹15.25	₹7,625.00
2,500+	₹13.24	₹33,100.00
5,000+	₹12.49	₹62,450.00

Quantity (min 5, multiples of 5)

5 × ₹25.52

₹127.60

excl. GST

₹150.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

XL74LS07

₹127.60 for 5 + GST

Specifications

Function: Level shifting
Current - Output High(IOH): 250uA
Voltage - Supply: 4.75V~5.25V
Series: 74LS
Current - Output Low(IOL): 40mA
Output Type: Open-drain
Number of Bits per Element: 6
Number of Elements: 6
Operating Temperature: -40℃~+85℃
Propagation Delay: 10ns@5V,15pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.319 g

Overview

These hex buffers and drivers feature high-voltage open-collector outputs to interface with highlevel circuits or for driving high-current loads. They are also characterized for use as buffers for driving TTL inputs. The XL/XD74LS07 devices have a rated output voltage of 30 V. The maximum sink current is 40 mA. These circuits are compatible with most TTL families. Inputs are diode-clamped to minimize transmission- line effects, which simplifies design. Typical power dissipation is 140 mW, and average propagation delay time is 12 ns.
