XINLUDADatasheet (PDF)

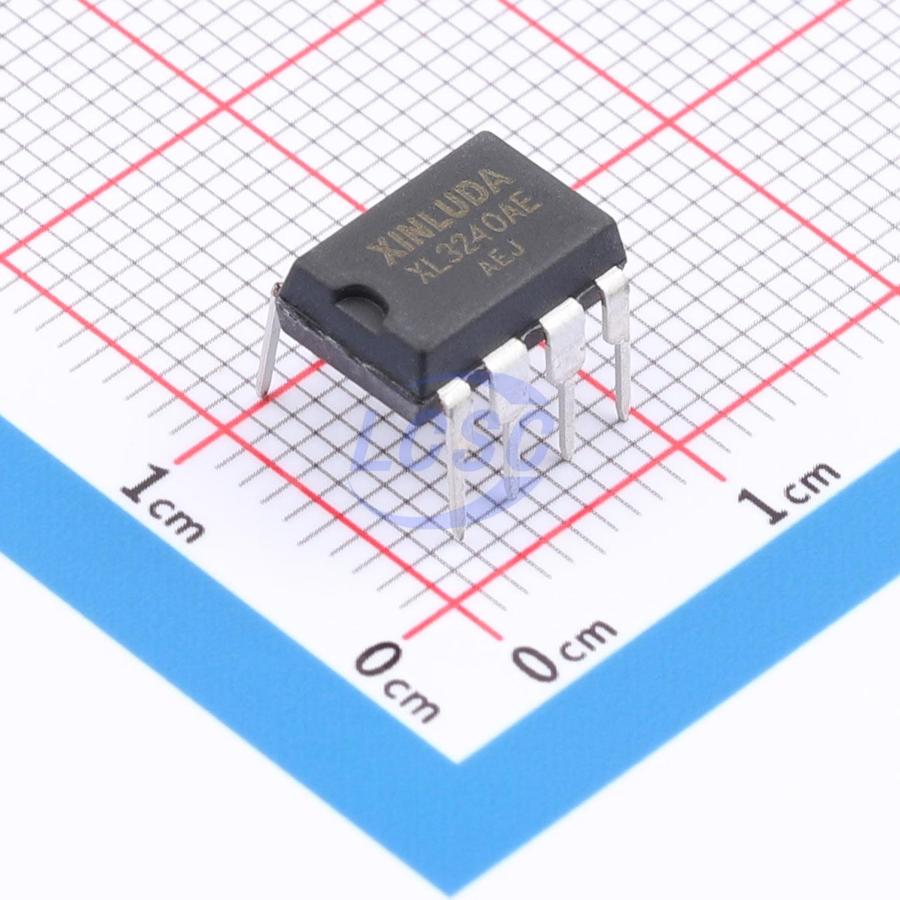

XLA3240AE
40mA 2 5mV 9V/us 10pA 90dB 8mA 4.5MHz DIP-8 Instrumentation, Op Amps, Buffer Amps
DIP-8RoHSActive
- Manufacturer
- XINLUDA
- Manufacturer part #
- XLA3240AE
- Store part #
- C52148190
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,929 in stock
#C52148190
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹95.27 | ₹95.27 |
| 10+ | ₹76.60 | ₹766.00 |
| 50+ | ₹67.38 | ₹3,369.00 |
| 100+ | ₹58.15 | ₹5,815.00 |
| 500+ | ₹52.79 | ₹26,395.00 |
| 1,000+ | ₹49.78 | ₹49,780.00 |
1 × ₹95.27
₹95.27
excl. GST
₹112.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
XLA3240AE
₹95.27 for 1 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 9V/us
- Input Offset Current(Ios)
- 30pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 10pA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 15uV/℃
- Quiescent Current
- 8mA
- Gain Bandwidth Product
- 4.5MHz
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -18V~-2V;2V~18V
- Single Supply
- 4V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.929 g
Overview
XLA3240 is a dual integrated operational amplifier. It combines the advantages of MOS and bipolar transistors on the same monolithic die. Gate-protected MOSFET (PMOS) input transistors provide high input impedance and a wide common-mode input voltage range (typically as low as 0.5V below the negative supply rail). Bipolar output transistors allow wide output voltage swing and deliver high output current capability.
Applications
- Ground-referenced single supply amplifier in automotive and portable instrumentation
- Sample-and-hold amplifier
- Long-duration timer/astable multivibrator
- Photocurrent instrumentation
- Intrusion alarm system
Key features
- Internally compensated MOSFET input stage
- Extremely high input impedance (ZIN): 1.5TΩ (typical)
- Extremely low input current (I1): 10pA (typical, at ±15V)
- Wide common-mode input voltage range (VICR): swings to 0.5V below negative supply rail
