XINLUDADatasheet (PDF)

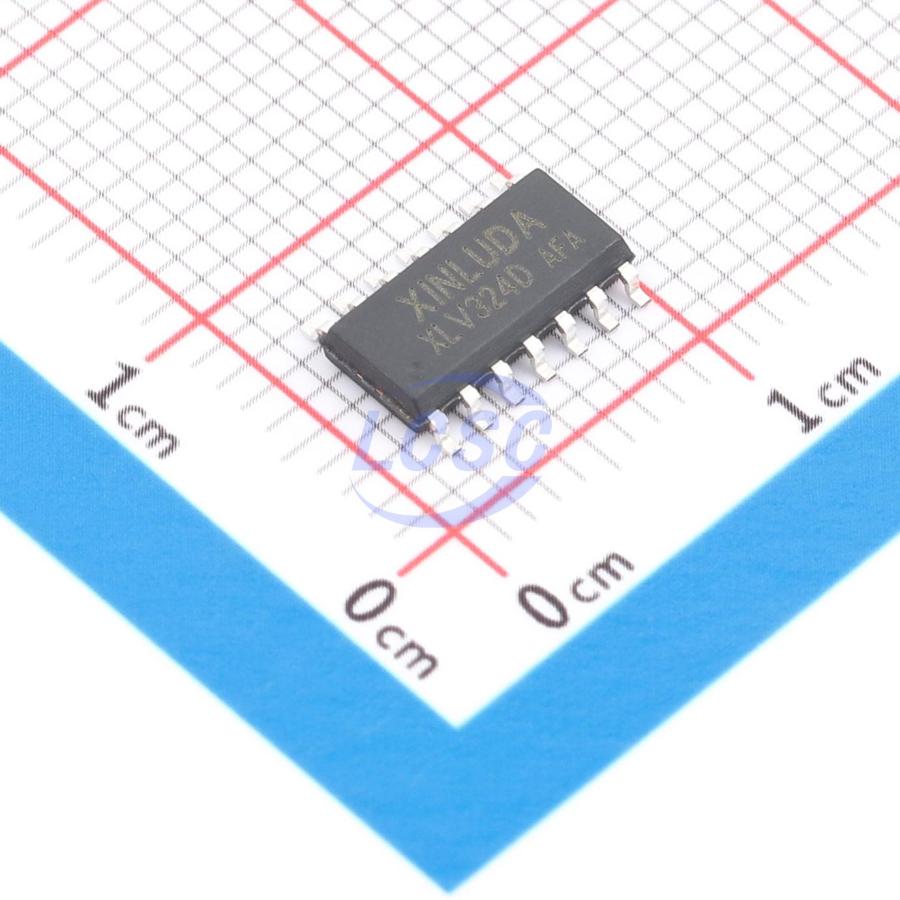

XLV324DR
10mA 4 channels 1.7mV 1V/us 1nA 65dB 1MHz 410uA Rail-to-rail output SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
- Manufacturer
- XINLUDA
- Manufacturer part #
- XLV324DR
- Store part #
- C54415120
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,485 in stock
#C54415120
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.07 | ₹65.35 |
| 50+ | ₹10.39 | ₹519.50 |
| 150+ | ₹9.04 | ₹1,356.00 |
| 500+ | ₹8.03 | ₹4,015.00 |
| 2,500+ | ₹7.22 | ₹18,050.00 |
| 5,000+ | ₹6.83 | ₹34,150.00 |
5 × ₹13.07
₹65.35
excl. GST
₹77.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
XLV324DR
₹65.35 for 5 + GST
Specifications
- Output Current
- 10mA
- Number of Channels
- 4 channels
- Vos - Input Offset Voltage
- 1.7mV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 1nA
- Common Mode Rejection Ratio(CMRR)
- 65dB
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 410uA
- Input Voltage Noise Density
- 50nV/√Hz@50kHz
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.395 g
Overview
XLV324DR is a CMOS quad low-voltage operational amplifier with rail-to-rail output swing. These amplifiers are a cost-effective solution for applications where low power consumption and space-saving packaging are critical. Operating specifications are provided for 2.7V and 5V supply voltages. Rail-to-rail operation improves SNR performance. Ultra-low quiescent current makes this amplifier family well-suited for portable battery-powered devices. The common-mode input range includes ground, enabling the device for low-side current shunt measurements. The ultra-small package allows placement close to the signal source on the PCB, reducing noise pickup.
Applications
- Notebook computers and personal digital assistants
- Portable battery-powered instruments
- Active filters
- Voltage references
- Wien bridge oscillators
- Comparators with hysteresis
- Multiple feedback bandpass filters
Key features
- 2.7V to 5.0V single-supply operation
- No output crossover distortion
- Industrial temperature range: -40°C to +85°C
- Rail-to-rail output
- No output phase reversal with overdriven inputs
- Lead-free devices
