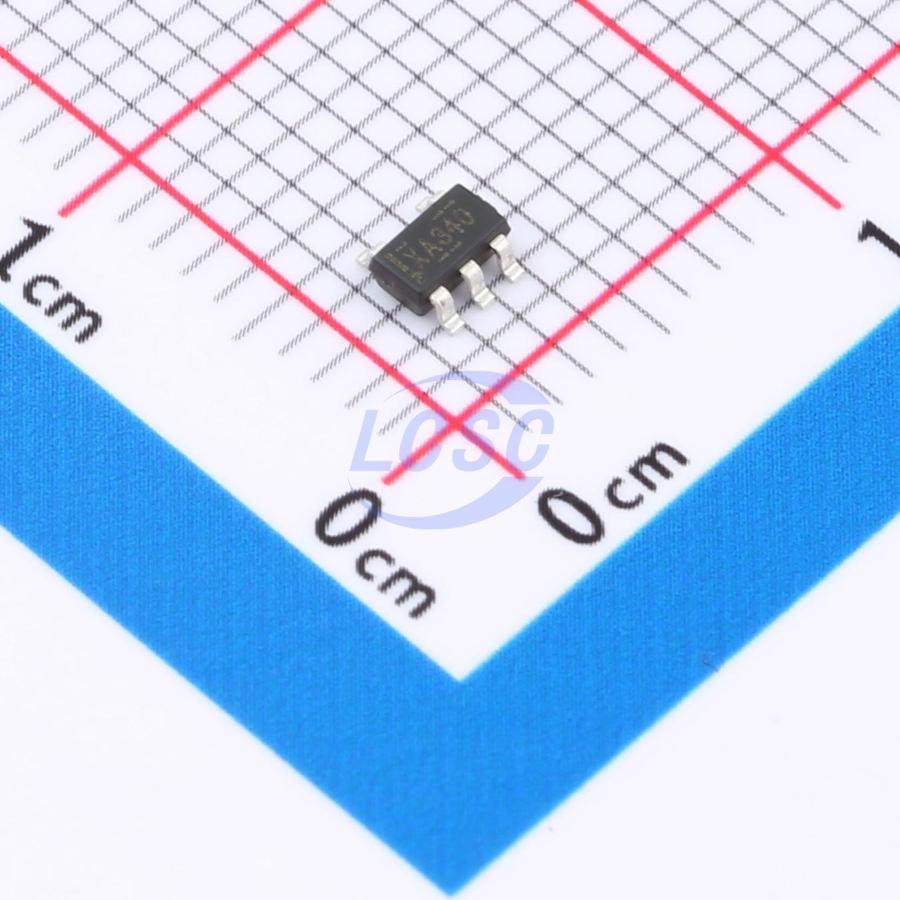

XOPA340NA

The XOPAx340 series single, dual, and quad op amps represent a new generation of general-purpose, low-power op amps. This series features rail-to-rail input and output swing, low quiescent current (750 μA typical), wide bandwidth (11 MHz), and ultra-low noise (8 nV/√Hz at 10 kHz), making it highly attractive for a wide range of battery-powered applications requiring a good balance of cost and performance, such as audio output, motor phase current sensing, photodiode amplification, barcode scanners, and white goods. Low input bias current enables use in applications with megaohm-level source impedances. The robust design of the XOPAx340 op amps provides ease of use for circuit designers: unity-gain stable, capable of driving capacitive loads up to 300 pF, integrated RF/EMI rejection filter, no phase reversal under overdrive conditions, and high ESD protection (4-kV HBM). The XOPAx340 op amps are optimized for operation over a voltage range of +1.8 V (±0.9 V) to +5.5 V (±2.75 V) at temperatures from 0°C to 70°C, and support +2.0 V (±1.0 V) to +5.5 V (±2.75 V) operation over the extended temperature range of −40°C to +125°C.

Applications

• AEC-Q100 Grade 1 applications
• Hybrid/electric vehicle inverters and motor control
• Battery-powered instrumentation
• On-board chargers and wireless chargers
• Advanced driver assistance systems
• Motor phase current sensing
• Sensor signal conditioning

Key features

• Low input offset voltage: ±0.35 mV maximum
• Wide unity-gain bandwidth: 11 MHz
• High slew rate: 11 V/μs
• Fast settling time: 0.26 μs to 0.1%
• Low noise: 8 nV/√Hz at 10 kHz
• Rail-to-rail input and output
• Internal RF/EMI filter
• Single-supply voltage: 1.8 V to 5.5 V
• Low supply current: 750 μA per amplifier at 5 V supply
• Extended temperature range: -40°C to +125°C
