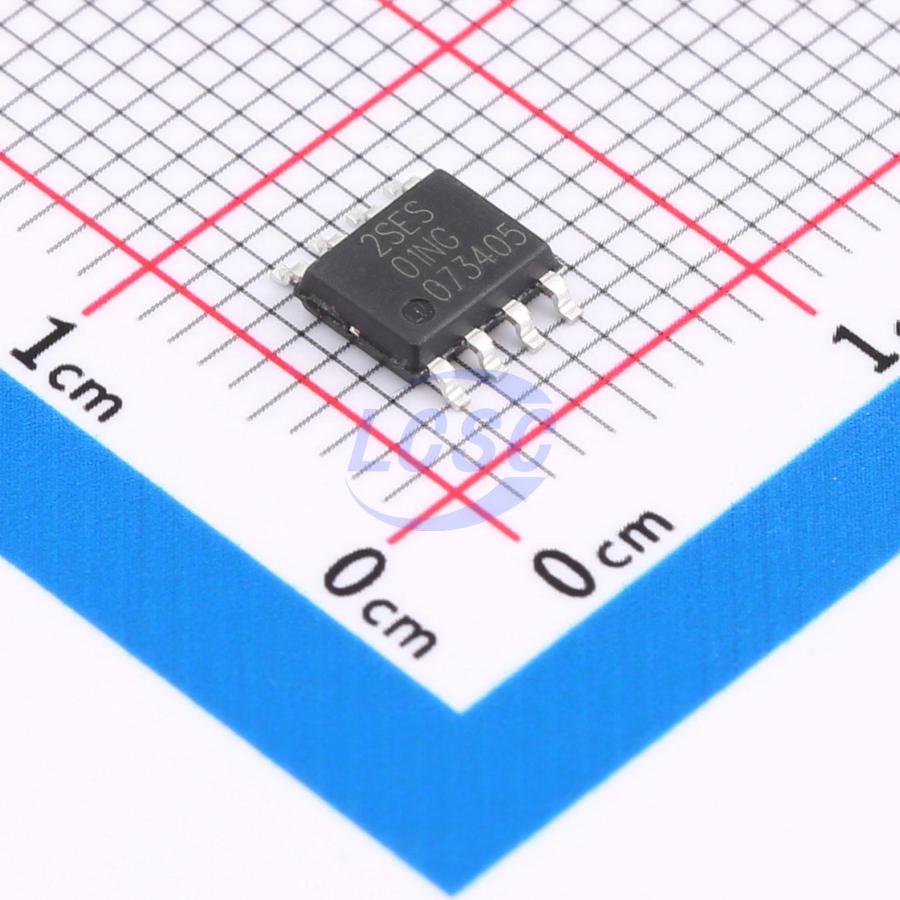

XT2052Y2ASR-G
Linear Charging IC Lithium-ion/Polymer SOP-8-EP
1.0A linear battery management chip compatible with USB interface
- Manufacturer
- NATLINEAR
- Manufacturer part #
- XT2052Y2ASR-G
- Store part #
- C156449
- Package / case
- SOP-8-EP
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,330 in stock
#C156449
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹12.09 | ₹120.90 |
| 100+ | ₹10.12 | ₹1,012.00 |
| 300+ | ₹9.14 | ₹2,742.00 |
| 1,000+ | ₹8.40 | ₹8,400.00 |
| 4,000+ | ₹7.06 | ₹28,240.00 |
| 8,000+ | ₹6.77 | ₹54,160.00 |
10 × ₹12.09
₹120.90
excl. GST
₹142.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
XT2052Y2ASR-G
₹120.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 25uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.25V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Under-voltage lockout;Reverse current blocking;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.185 g
Overview
XT2052 is a charger IC that provides constant-current/constant-voltage charging for single-cell rechargeable lithium batteries. The device integrates a power transistor internally, eliminating the need for external current-sense resistors and blocking diodes. XT2052 requires minimal external components and complies with the USB bus specification, making it ideal for portable applications. A thermal regulation circuit maintains the chip temperature within a safe range when the device dissipates high power or operates in elevated ambient temperatures. The internal constant-voltage charge regulation is fixed at 4.2V, and the charge current is set via an external resistor. When the input voltage (AC adapter or USB power supply) is removed, XT2052 automatically enters a low-power sleep mode in which battery current consumption drops below 0.1μA. An integrated reverse-current protection circuit automatically turns off the internal power MOSFET when the battery voltage exceeds the input voltage. Additional features include input undervoltage lockout, automatic recharge, built-in OVP protection, and charge status/charge termination status indication. XT2052 is available in a thermally enhanced 8-pin small-outline package, eSOP-8 or eMSOP-8.
Applications
- Mobile phones
- Digital cameras
- MP4 players
- Bluetooth applications
- Electronic dictionaries
- Portable devices
- Various chargers
- Power banks
Key features
- Programmable charge current up to 1.0A — no external MOSFET, sense resistor, or blocking diode required
- Compact form factor for complete linear charge management of Li-ion batteries
- Constant-current/constant-voltage operation with thermal regulation for maximum battery management efficiency without risk of overheating
- Single-cell Li-ion battery management via USB interface
- Charge current output monitoring
- Charge status indicator flag and charge complete flag
- 1/10 charge current termination
- Automatic recharge
- 40μA supply current in shutdown mode
- 2.9V trickle charge threshold voltage
- Soft-start to limit inrush current
- OVP protection: stops charging when input exceeds 6.8V
- Zero battery drain from IC when VIN is disconnected
- Reverse current protection on output
- Available in eSOP8, eMSOP8, and custom package options
