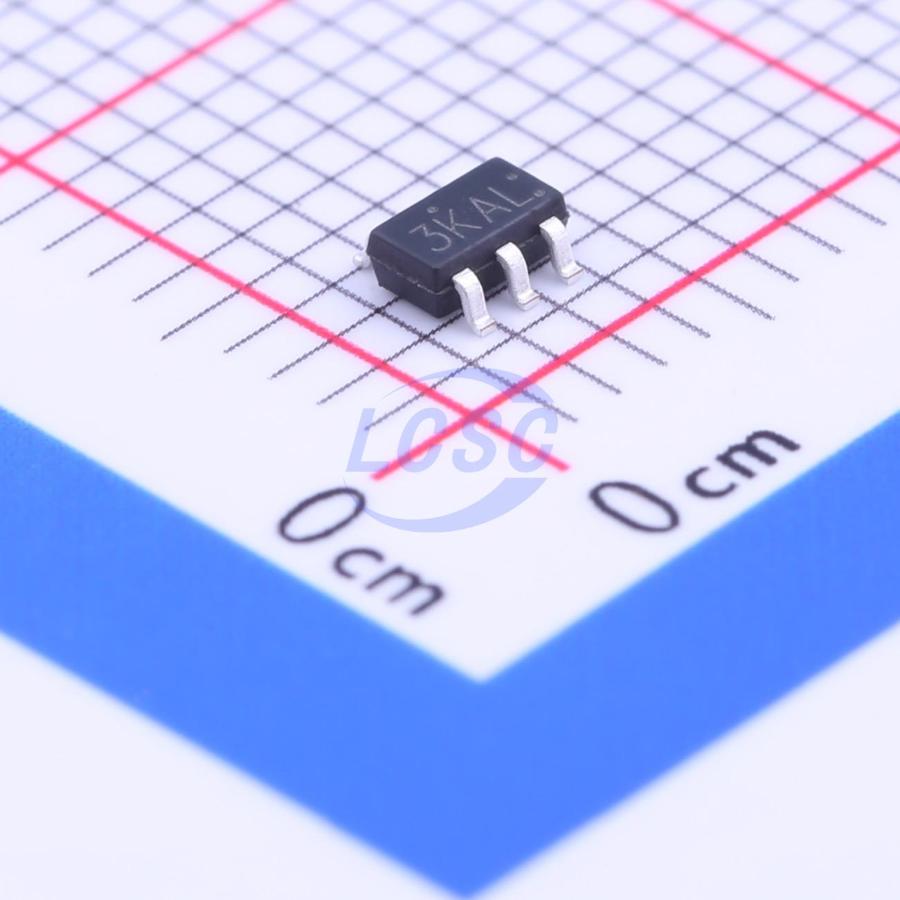

XT4052K421MR-G
Lithium Battery 800mA SOT-23-5L Battery Management RoHS
- Manufacturer
- NATLINEAR
- Manufacturer part #
- XT4052K421MR-G
- Store part #
- C219048
- Package / case
- SOT-23-5L
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,380 in stock
#C219048
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.53 | ₹50.60 |
| 200+ | ₹1.97 | ₹394.00 |
| 600+ | ₹1.65 | ₹990.00 |
| 3,000+ | ₹1.40 | ₹4,200.00 |
| 9,000+ | ₹1.24 | ₹11,160.00 |
| 21,000+ | ₹1.14 | ₹23,940.00 |
20 × ₹2.53
₹50.60
excl. GST
₹59.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XT4052K421MR-G
₹50.60 for 20 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 25uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.25V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 800mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.042 g
Overview
XT4052 is a complete single-chip linear power management IC for lithium-ion battery constant-current/constant-voltage charging. Its slim profile and compact package make it ideal for portable applications. The chip is designed to comply with USB power supply specifications. Thanks to the internal MOSFET architecture, no external sense resistors or blocking diodes are required. During high-power operation and elevated ambient temperatures, thermal feedback regulates the charge current to reduce die temperature. The charge voltage is fixed at 4.2V, and the charge current is programmable via an external resistor. When the charge voltage reaches the target value and the charge current drops to 1/10 of the programmed value, the chip automatically terminates charging. When the input power source is removed, the chip automatically enters a low-current state, reducing battery leakage current to below 2μA. The XT4052 can also be placed in shutdown mode, in which the supply current drops to 25μA. The chip integrates a battery reverse-polarity protection circuit to prevent IC breakdown and avoid accidents caused by battery self-discharge. Additional features include charge current monitoring, input undervoltage lockout, automatic recharge, and charge status indication.
Applications
- Mobile phones
- PDA
- MP3
- Bluetooth applications
Key features
- Programmable charge current up to 800mA
- No external MOSFET, sense resistor, or blocking diode required
- Complete Li-ion battery linear charge management in small form factor
- CC/CV operation with thermal regulation for efficient battery management without overheating risk
- Single-cell Li-ion battery charging from USB port
- Preset charge voltage 4.2V ±1%
- Charge current output monitoring
- Charge status indication
- Charge termination at 1/10 charge current
- 25μA supply current in shutdown mode
- 2.9V trickle charge threshold voltage
- Soft-start to limit inrush current
- Reverse battery protection
