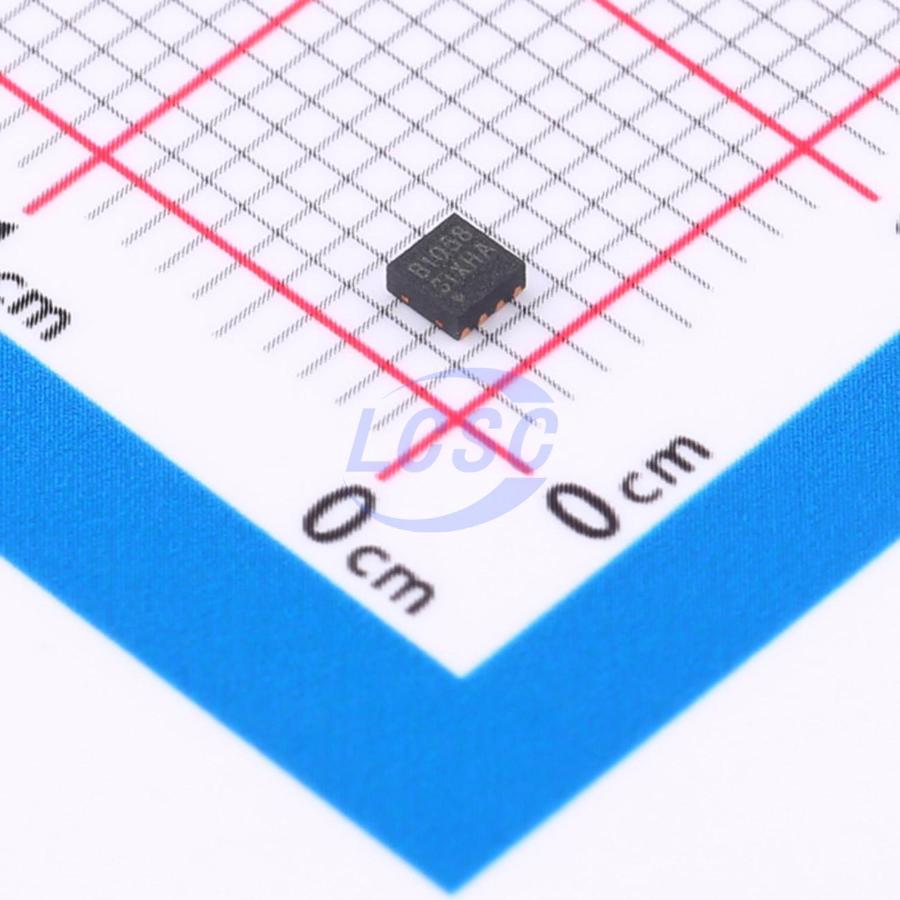

XTB1058L435AD3CT
1A DFN-8(2x2) Battery Management RoHS
High Input Voltage Single Cell Li-ion Battery Linear Charger
- Manufacturer
- XTX
- Manufacturer part #
- XTB1058L435AD3CT
- Store part #
- C7422366
- Package / case
- DFN-8(2x2)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,480 in stock
#C7422366
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.27 | ₹56.35 |
| 50+ | ₹8.92 | ₹446.00 |
| 150+ | ₹7.74 | ₹1,161.00 |
| 500+ | ₹6.85 | ₹3,425.00 |
| 3,000+ | ₹6.14 | ₹18,420.00 |
| 6,000+ | ₹5.78 | ₹34,680.00 |
5 × ₹11.27
₹56.35
excl. GST
₹66.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XTB1058L435AD3CT
₹56.35 for 5 + GST
Specifications
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Programmable charging current;Overvoltage protection;Short-Circuit Protection;Soft-start
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
The XTB1056 is a cost-effective, high-integration linear charger for single cell Li-ion or Li-ion polymer batteries. The device support CC/CV charge from either USB port or AC adapter. Low BOM component requirement makes the whole system small in size. The charger accepts an input voltage up to 28V but is disabled when the input voltage exceeds the OVP threshold. The 28V rating eliminates the over-voltage protection circuit required in a low input voltage charger. The charge current and the end-of-charge current are programmable with external resistors. When the battery voltage is lower than typically 2.6 V, the charger preconditions the battery with typically 20% of the programmed charge current. The XTB1056 implements two indication pins, PPR and CHG, allowing connection to micro-controller or LED to show device status. With open-drain structure, PPR pin stays low while input voltage is within operation range, and CHG stays low during charging state, else pins are in the high impedance state. The XTB1056 features thermal fold-back function to limit the charge current and protect the device from over junction temperature fault. The XTB1056 also integrates current monitor, UVLO, OVP function to prevent device from damage.
Applications
- Mobile Phones
- Portable Devices
- Wireless Devices, Bluetooth Headset
- Personal Electronics, Personal Healthcare
- Wearable Device
Key features
- Single-Chip for 1-cell Li-ion or Polymer Battery
- Constant-Current/Constant-Voltage Battery Charge
- No External MOSFET, Current Sensor or Diode Required
- Low Component Count and Cost
- Programmable Charge Current
- Programmable End-of-Charge Current
- Charging Current Monitor and Thermal Fold-back
- 2.6V Trickle Charge Threshold
- With 6.8V or 10.5V Input Over-Voltage Protection
- 28V Maximum Voltage for the Power Input
- Input-based dynamic power management (VIN-DPM)
- Short-circuit Protection
- Protection of Reverse Connection of Battery
- Power Presence and Charge Indications
- Soft start for Inrush Current Limitation
- Automatic Battery Recharge
- Operation Temperature: -40℃~+85℃
- Package options: DFN-2×2-8L and ESOP-8
