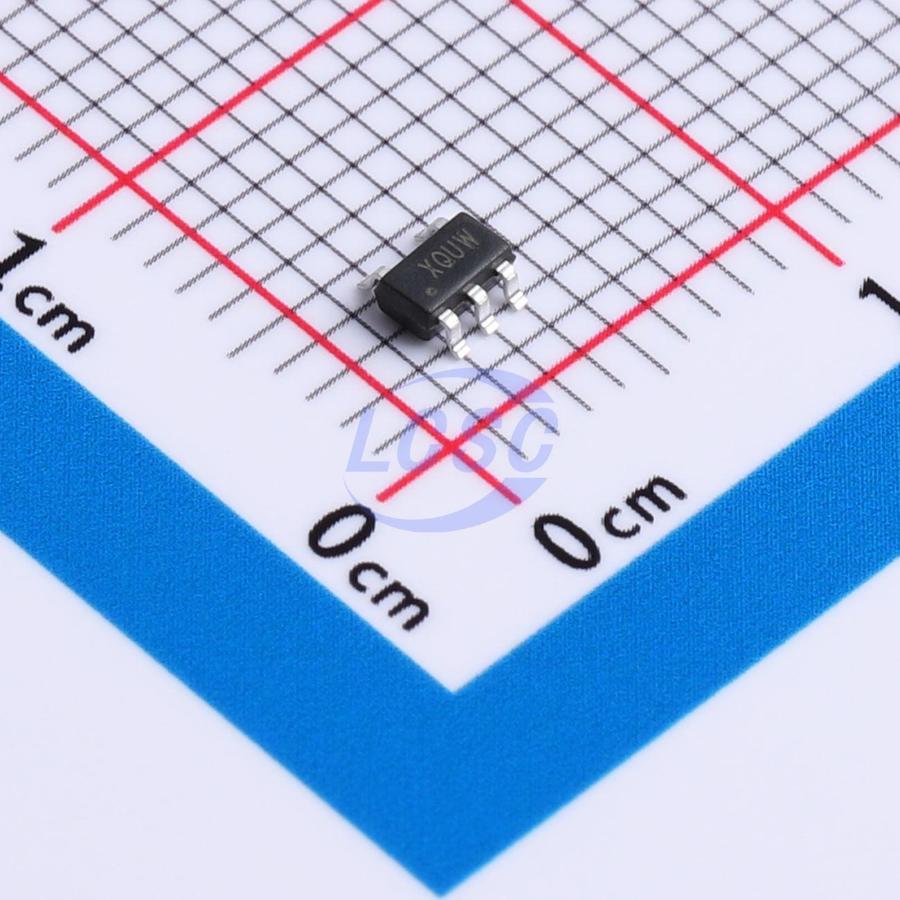

XTLV70218-XC
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
IC REG LINEAR 1.8V 300mA SOT-23-5
- Manufacturer
- SiChange
- Manufacturer part #
- XTLV70218-XC
- Store part #
- C51953295
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21,137 in stock
#C51953295
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹5.72 | ₹5.72 |
| 10+ | ₹4.48 | ₹44.80 |
| 30+ | ₹3.86 | ₹115.80 |
| 100+ | ₹3.40 | ₹340.00 |
| 500+ | ₹3.03 | ₹1,515.00 |
| 1,000+ | ₹2.84 | ₹2,840.00 |
1 × ₹5.72
₹5.72
excl. GST
₹6.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XTLV70218-XC
₹5.72 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 15uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.054 g
Overview
Applications
- Wireless handheld devices
- Smartphones
- ZigBee networks
- Bluetooth devices
- Li-battery powered handheld products
- WLAN and other PC add-in cards
Key features
- Ultra-low noise: 9μVRMS, independent of VOUT
- Ultra-low quiescent current (no load): 15μA
- Maximum output current: 300mA
- Input voltage: 2.2V to 5.5V
- Fixed output voltage: 3.3V
- Output voltage accuracy: ±1%
- Low shutdown current: < 1μA
- Low dropout: 280mV (typical)
- PSRR: 62dB at 1kHz
- No additional noise bypass capacitor required
- Stable performance with 1μF ceramic input and output capacitors
- Current limiting and thermal overload protection
- Logic-controlled enable
- 5-pin SOT-23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XTPS7A2018-XC#C51953293SiChange · SOT-23-5 | SiChange | SOT-23-5 | 22,423 | ₹8.57 · 22,423 in stock | View |
 | XTLV73318-XC#C51953298SiChange · SOT-23-5 | SiChange | SOT-23-5 | 17,847 | ₹8.60 · 17,847 in stock | View |
 | XTLV70318-XC#C51953300SiChange · SOT-23-5 | SiChange | SOT-23-5 | 14,792 | ₹13.27 · 14,792 in stock | View |
 | XTLV74318-XC#C51953296SiChange · SOT-23-5 | SiChange | SOT-23-5 | 22,791 | ₹5.19 · 22,791 in stock | View |
