XTPS7A2018-XC

This device is an ultra-low noise, ultra-low quiescent current LDO regulator operating from a 2.2V to 5.5V supply, capable of delivering up to 300mA output current with a fixed 1.8V output voltage. Its innovative design achieves a quiescent current of only 15μA at no load, making it ideal for battery-powered portable devices. It delivers excellent noise rejection without requiring an additional noise bypass capacitor, while maintaining superior PSRR and line/load transient response. The combination of ultra-low noise and extremely low quiescent current helps maximize battery life in portable devices. For space-constrained high-performance applications, it can be used with 1μF input and output ceramic capacitors. Available in a 5-pin SOT-23 package with an operating temperature range of -40°C to 125°C.

Applications

• Wearable electronics
• Ultrabooks
• Tablets
• E-readers
• Always-on power supplies
• Set-top boxes
• Game controllers
• Remote controls
• Toys
• Drones
• Wireless handheld terminals & smartphones
• Portable & battery-powered devices

Key features

• Ultra-low noise: 9μVrms, output voltage independent
• Ultra-low quiescent current (no load): 15μA
• Maximum output current: 300mA
• Input voltage range: 2.2V to 5.5V
• Fixed output voltage: 1.8V
• Output voltage accuracy: ±1%
• Low shutdown current: <1μA
• Low dropout: 280mV (typical)
• Power supply rejection ratio: 62dB at 1kHz
• No additional noise bypass capacitor required
• Stable performance with 1μF ceramic input and output capacitors
• Current limiting and thermal overload protection
• Logic-controlled enable

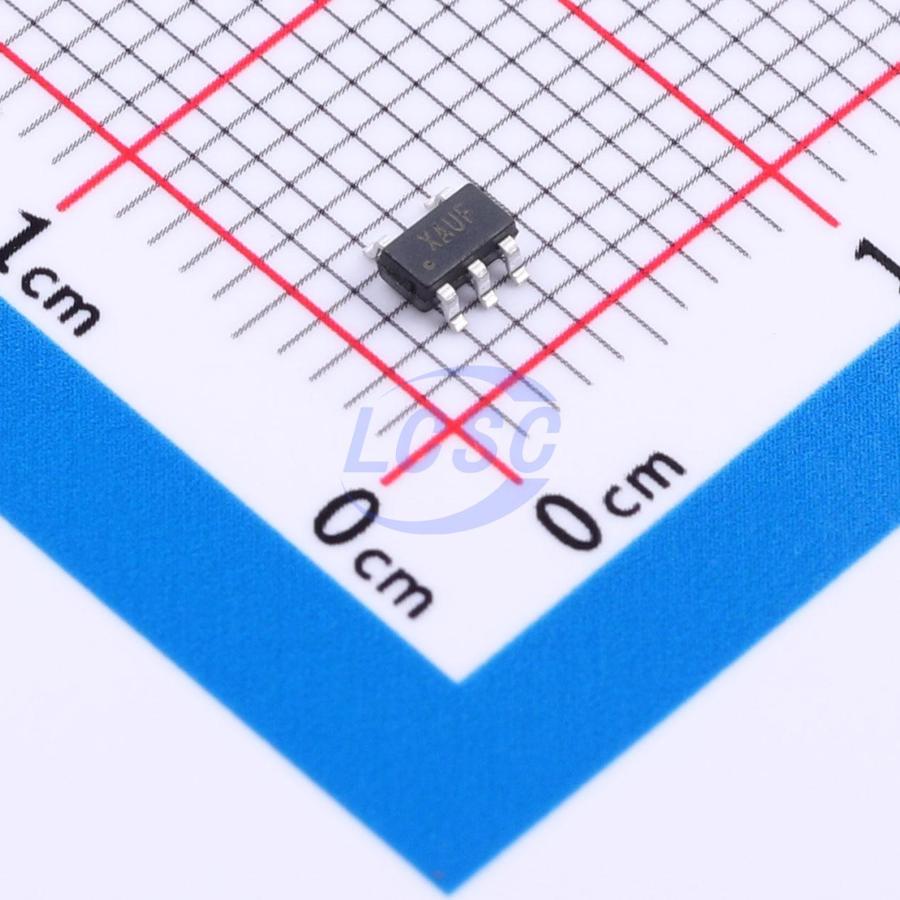

• 5-pin SOT-23 package
