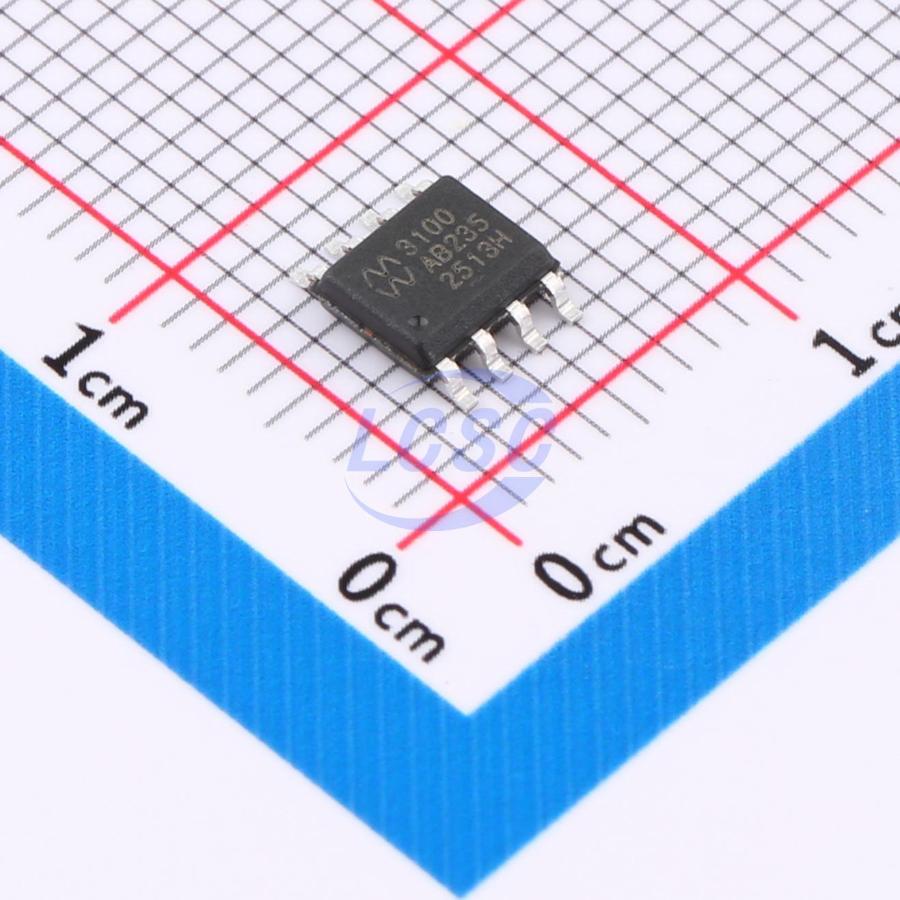

ZJA3100ASABR

ZJA3100 is a wideband fully differential amplifier with gain set by two pairs of matched resistors. The device offers significant advantages over simple op amps for driving various differential-input ADCs or transmitting signals over long lines. It provides a 145 MHz -3 dB bandwidth while consuming only 4.6 mA of supply current. It eliminates the balun transformer typically required by high-performance high-speed ADCs, and achieves excellent low-frequency and DC precision in input voltage and current offset. The common-mode level of the differential output is programmable via the VOCM pin, with a range extending to within 1 V of either supply rail, enabling easy level shifting of input signals to drive single-supply differential-input ADCs. This combination of features also makes the ZJA3100 an ideal driver for high-performance SAR ADCs and Σ-Δ ADCs, which demand both DC precision and fast settling time from the ADC's large sampling capacitance. The ZJA3100 can be used as a differential line driver for transmitting high-speed signals over low-cost twisted-pair or coaxial cables. Its wide supply range makes it well suited for a broad range of general applications, such as analog or digital video signal transmission. The external feedback network can be optimized to boost high-frequency components of the signal, accommodating low-pass filtering in the signal path. Compared to discrete line driver solutions, the ZJA3100 offers significant cost savings, improved performance, and reduced board area. The ZJA3100 is available in 8-pin SOIC, 8-pin MSOP, and 16-pin QFN packages, operating over an extended industrial temperature range of -40°C to +125°C.

Applications

• Low-power differential ADC driver
• Single-ended to differential converter
• Differential buffer
• Medical imaging
• Process control

Key features

• Wide supply range: 3 V to 15 V
• Low power: 4.6 mA
• High bandwidth: 145 MHz
• High slew rate: 447 V/µs
• Low input offset voltage: 50 µV max (grade B), 110 µV max over -40°C to +125°C (grade B)
• Low input offset current: 70 nA max
• Low noise: 2.9 nV/√Hz, f = 100 kHz
• Wide input common-mode range: (−VS) – 0.4 V to (+VS) – 1 V
• Wide output common-mode control: (−VS) + 1 V to (+VS) – 1 V
• Rail-to-rail output
• Low harmonic distortion: HD2 = −133 dBc, HD3 = −140 dBc at 1 kHz
• Fast settling time: 100 ns to 18-bit accuracy, 50 ns to 16-bit accuracy
