DIODESDatasheet (PDF)

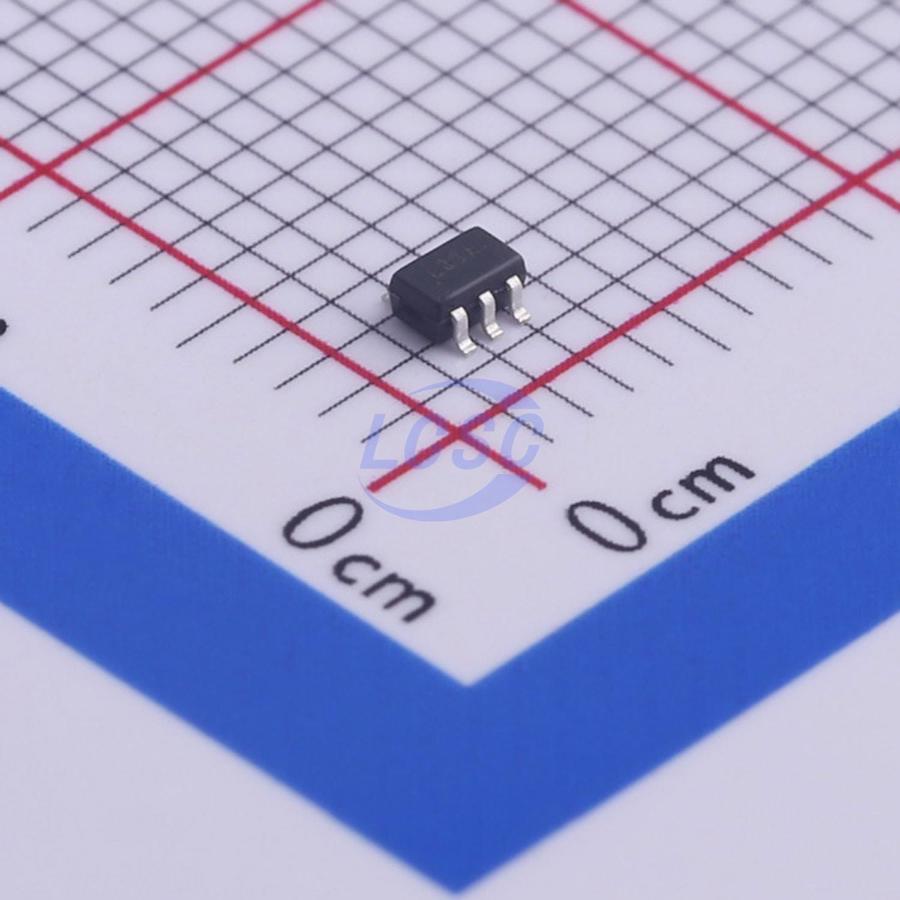

ZXCL330H5TA
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SC-70-5
SC-70-5ROHS3 CompliantDiscontinued
Input 5.5V, Output 3.3V 150mA
- Manufacturer
- DIODES
- Manufacturer part #
- ZXCL330H5TA
- Store part #
- C444995
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,665 in stock
#C444995
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.79 | ₹55.79 |
| 10+ | ₹49.20 | ₹492.00 |
| 30+ | ₹46.21 | ₹1,386.30 |
| 100+ | ₹42.81 | ₹4,281.00 |
| 500+ | ₹41.11 | ₹20,555.00 |
| 1,000+ | ₹40.26 | ₹40,260.00 |
1 × ₹55.79
₹55.79
excl. GST
₹65.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXCL330H5TA
₹55.79 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Features
- Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.015 g
Overview
Applications
- Cellular and cordless phones
- PDA
- Handheld instruments
- Cameras, camcorders, personal stereos
- PC cards
- Portable and battery-powered equipment
- CMOS RAM applications
Key features
- Designed for space-sensitive systems
- Ultra-compact SC70-5 package — half the size of SOT23-based regulators
- Compatible with all output capacitor types, including low-ESR ceramic capacitors
- Typical dropout voltage of only 85mV at 50mA load
- Ground pin current of only 50μA at full load of 150mA
- Logic-controlled shutdown with typical quiescent current under 10nA
- Available in industry-standard pinout 5-pin SOT23 package
- Thermal overload and overcurrent protection
- Output voltage options: 2.5V, 2.6V, 2.8V, 3V, 3.3V
- Dropout voltage as low as 85mV at 50mA load
- Ground pin current 50μA at full load of 150mA
- Output voltages: 2.5V, 2.6V, 2.8V, 3V, and 3.3V
- Ultra-low noise without bypass capacitor
- 5-pin SC70 and SOT23 packages
- Stable with no load
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LP5951MG-3.3/NOPB#C133942TI · SC-70-5 | TI | SC-70-5 | 152 | ₹140.81 · 152 in stock | View |
 | LR9102G-33-AL5-R#C431682UTC · SOT-353 | UTC | SOT-353 | 6,925 | ₹8.28 · 6,925 in stock | View |
 | SK6013SC5-33#C47325468Suntek · SC-70-5L | Suntek | SC-70-5L | 185 | ₹14.80 · 185 in stock | View |
 | ME6211C33R5G#C235316MICRONE · SOT-353 | MICRONE | SOT-353 | 1,780 | ₹8.00 · 1,780 in stock | View |
 | TPL730F33-CR#C387205983PEAK · SOT-353-5 | 3PEAK | SOT-353-5 | 65 | ₹39.29 · 65 in stock | View |
