4061

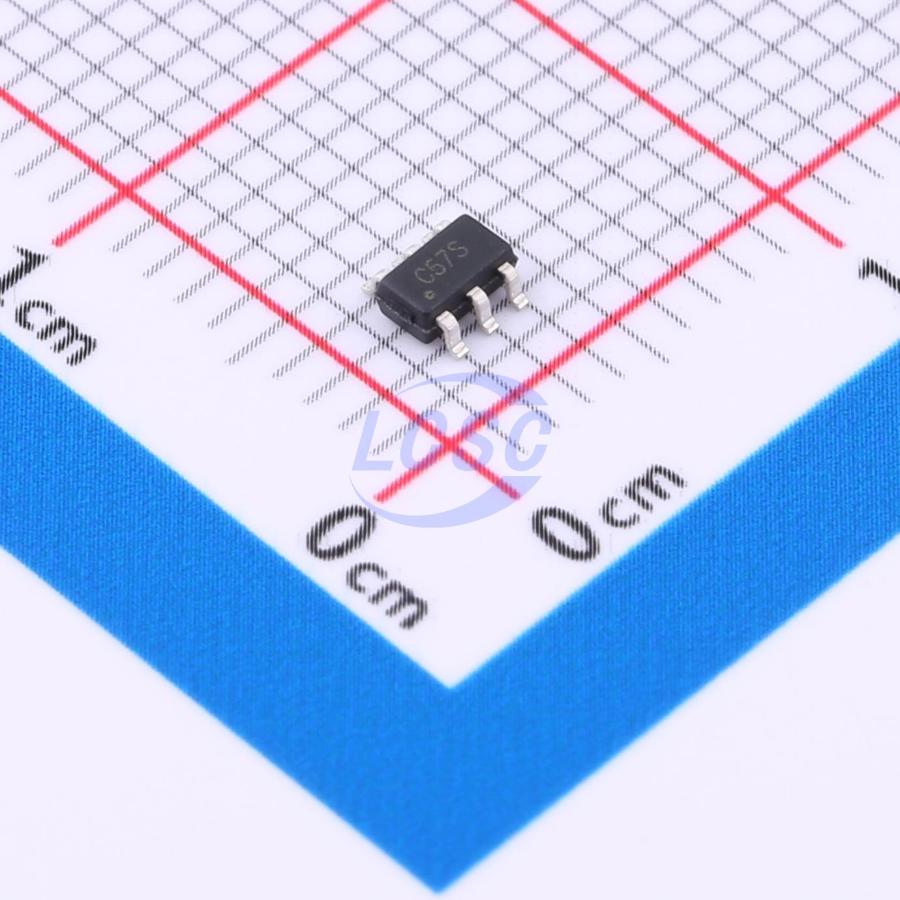

Battery Charging IC Lithium-ion/Polymer SOT23-6
Linear lithium battery charging chip with reverse polarity protection function
- Manufacturer
- HL
- Manufacturer part #
- 4061
- Store part #
- C7431436
- Package / case
- SOT23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,830 in stock
#C7431436
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.24 | ₹82.40 |
| 100+ | ₹6.51 | ₹651.00 |
| 300+ | ₹5.65 | ₹1,695.00 |
| 3,000+ | ₹5.00 | ₹15,000.00 |
| 6,000+ | ₹4.48 | ₹26,880.00 |
| 9,000+ | ₹4.23 | ₹38,070.00 |
10 × ₹8.24
₹82.40
excl. GST
₹97.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
4061
₹82.40 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 40uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4V~9V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Under-voltage lockout;Soft-start
- The Chip Type
- Charging IC
- Charge Current - Max
- 600mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
A complete single-cell lithium-ion battery charger featuring battery polarity reversal protection and 5V input power polarity reversal protection. Its SOT23-6 package and minimal external component count make it an ideal choice for portable applications. The internal PMOSFET architecture, combined with anti-backflow circuitry, eliminates the need for external sense resistors and isolation diodes. Thermal feedback automatically adjusts the charge current to limit die temperature during high-power operation or high ambient temperature conditions. The full-charge voltage is fixed at 4.2V, and the charge current is set externally via a single resistor. Once the battery reaches 4.2V, the charge current drops to 1/10 of the programmed value and charging terminates automatically. When the input voltage (AC adapter or USB power) is removed, the device automatically enters a low-current state with battery leakage current below 0.1uA. Additional features include power supply auto-adaptation, charge current monitoring, undervoltage lockout, automatic recharge, and two status pins for charge indication.
Applications
- Charging docks
- Cellular phones, PDAs
- Bluetooth applications
Key features
- Lithium battery positive/negative terminal reverse polarity protection
- Vcc input reverse polarity protection
- Power supply adaptive
- Programmable charge current compatible with 5mA - 600mA
- Constant current/constant voltage operation with thermal regulation for maximum charge rate
- Direct single-cell Li-ion battery charging from USB port
- 4.2V preset charge voltage with ±1% accuracy
- Automatic recharge
- 2 charge status open-drain output pins
- C/10 charge termination
- 25uA supply current in standby mode
- 2.9V trickle charge
- Soft-start to limit inrush current
- 6-pin SOT-23 package
