4061H

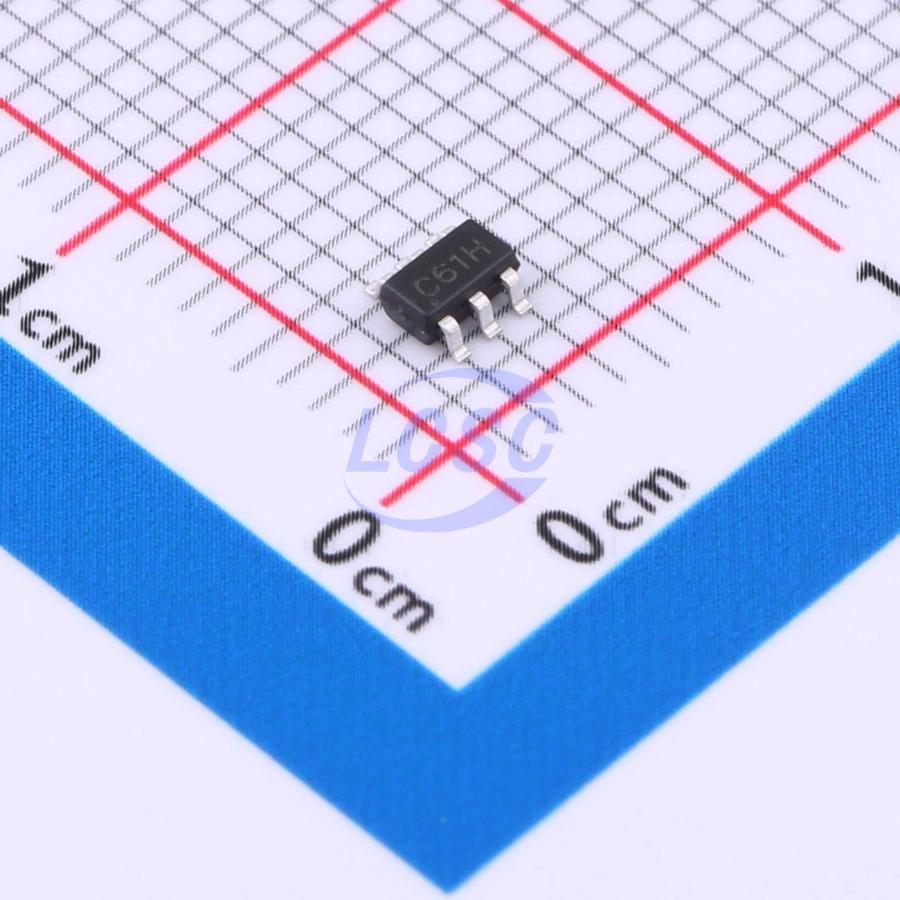

Battery Charging IC Lithium-ion/Polymer SOT23-6
Linear lithium battery charging chip with 28V voltage withstand and OVP function
- Manufacturer
- HL
- Manufacturer part #
- 4061H
- Store part #
- C7431437
- Package / case
- SOT23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,170 in stock
#C7431437
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.91 | ₹54.55 |
| 50+ | ₹8.63 | ₹431.50 |
| 150+ | ₹7.49 | ₹1,123.50 |
| 500+ | ₹6.63 | ₹3,315.00 |
| 3,000+ | ₹5.94 | ₹17,820.00 |
| 6,000+ | ₹5.60 | ₹33,600.00 |
5 × ₹10.91
₹54.55
excl. GST
₹64.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
4061H
₹54.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 100nA
- 0V Battery Charge
- Not supported
- Operating Voltage
- 5V~28V
- Type of Battery
- Lithium Battery
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 600mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
4061H is a 600mA single-cell lithium-ion battery linear charger with input voltage tolerance up to 30V and power supply OVP, operating in constant current/constant voltage charging mode. 4061H employs an internal PMOSFET architecture with reverse-charge protection, eliminating the need for an external isolation diode. Thermal feedback adaptively adjusts the charging current to limit it under high-power operation or high ambient temperature conditions. The full-charge cutoff voltage is 4.2V (4.35V available upon customization). The charging current can be set externally via a single resistor. When the charging current drops to 1/10 of the programmed value after reaching the final float voltage, 4061H automatically terminates the charging cycle. When the input voltage is removed, 4061H automatically enters a low-current state, reducing battery leakage current to below 0.1uA. Additional features of 4061H include undervoltage lockout, automatic recharge, and two LED status pins indicating charge and end-of-charge states. 4061H is available in SOT23-6 package with a bottom thermal pad. 4061H is suitable for both USB power and adapter power applications.
Applications
- E-cigarettes
- PAD
- Digital cameras
- Portable GPS devices
- Various chargers
Key features
- Input power port withstands up to 28V
- Chip OVP at 6.5V input supply voltage
- Programmable charging current up to 600mA
- CC/CV operation with temperature-adaptive charging rate maximization
- Preset charging voltage accuracy of ±1%
- Auto-recharge
- Dual charge status output, battery absence and fault status indication
- C/10 charge termination
- 2.9V trickle charging
- Soft-start inrush current limiting
- BAT reverse polarity protection
- SOT23-6 (4061H) package
