JSMSEMI

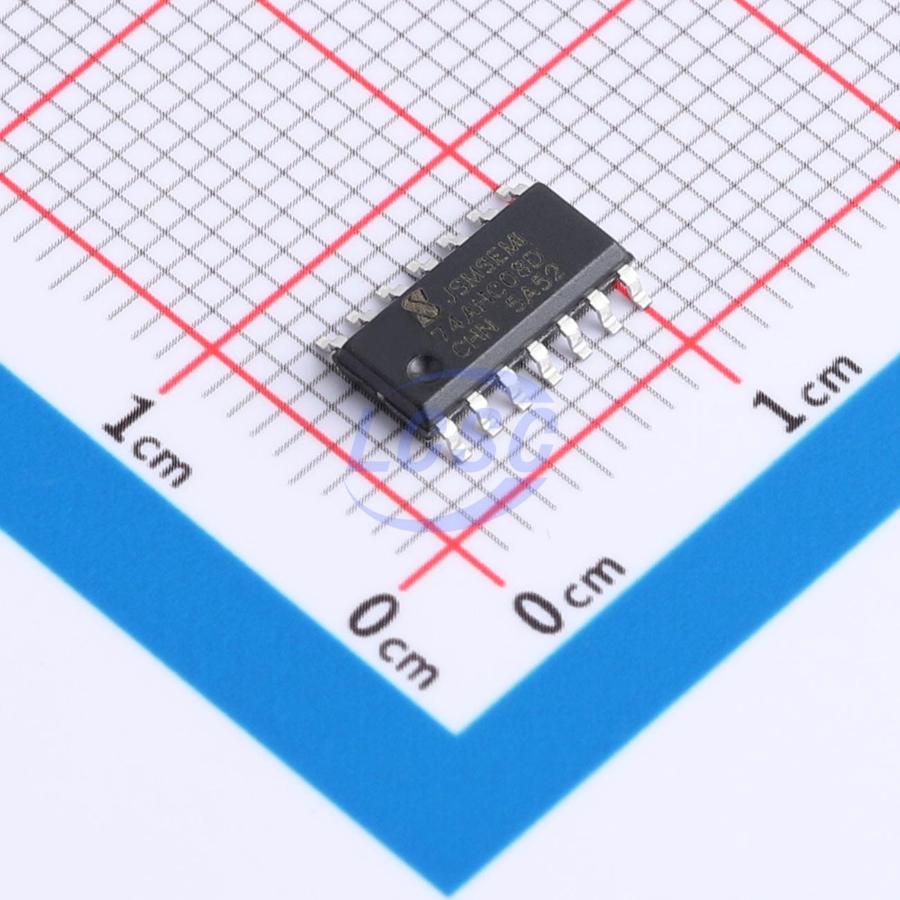

74AHC08D,118-JSM

2V~6V 15ns@6V 2uA SOP-14 Gates and Inverters RoHS

SOP-14ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74AHC08D,118-JSM
Store part #: C53114291
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,380 in stock

#C53114291

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹18.65	₹93.25
50+	₹14.86	₹743.00
150+	₹12.97	₹1,945.50
500+	₹11.54	₹5,770.00
2,500+	₹10.40	₹26,000.00
5,000+	₹9.83	₹49,150.00

Quantity (min 5, multiples of 5)

5 × ₹18.65

₹93.25

excl. GST

₹110.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74AHC08D,118-JSM

₹93.25 for 5 + GST

Specifications

Logic Family: 74AHC
Voltage - Supply: 2V~6V
Output Logic Level - Low: 100mV;260mV
Propagation Delay: 15ns@6V
Input Logic Level - High: 1.5V;3.15V;4.2V
Input Logic Level - Low: 500mV;1.35V;1.8V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;3.98V;4.4V;5.48V;5.9V
Quiescent Current(Iq): 2uA
Number of Channels: 4;2

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.28 g

Overview

74AHC08D,118-JSM is a quad 2-input AND gate. The inputs include clamp diodes, allowing the input interface to be connected to voltages above VCC through series current-limiting resistors.

Key features

Input Level: 74AHC08D,118-JSM: CMOS Level
Operating Temperature Range: -40℃～+125℃
Package Type: SOP14
